Tractor Rear Loader / Hecklader with quick coupling

https://www.youtube.com/watch?v=fLUbLWGrh5k

What is Tractor Rear Loader?

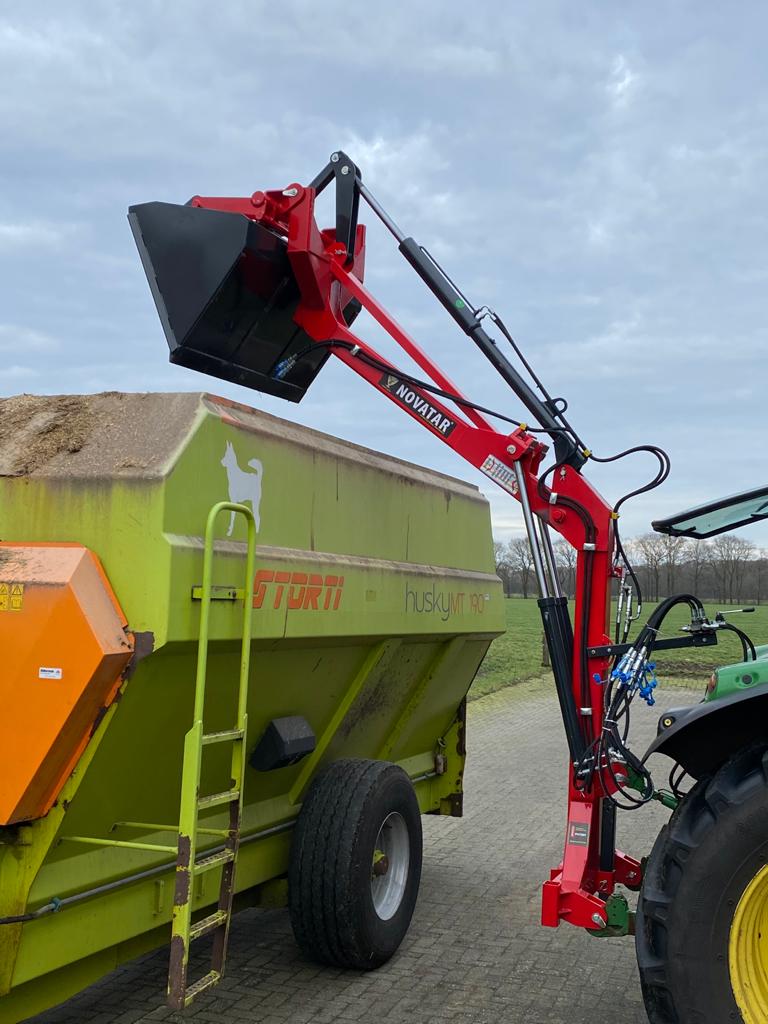

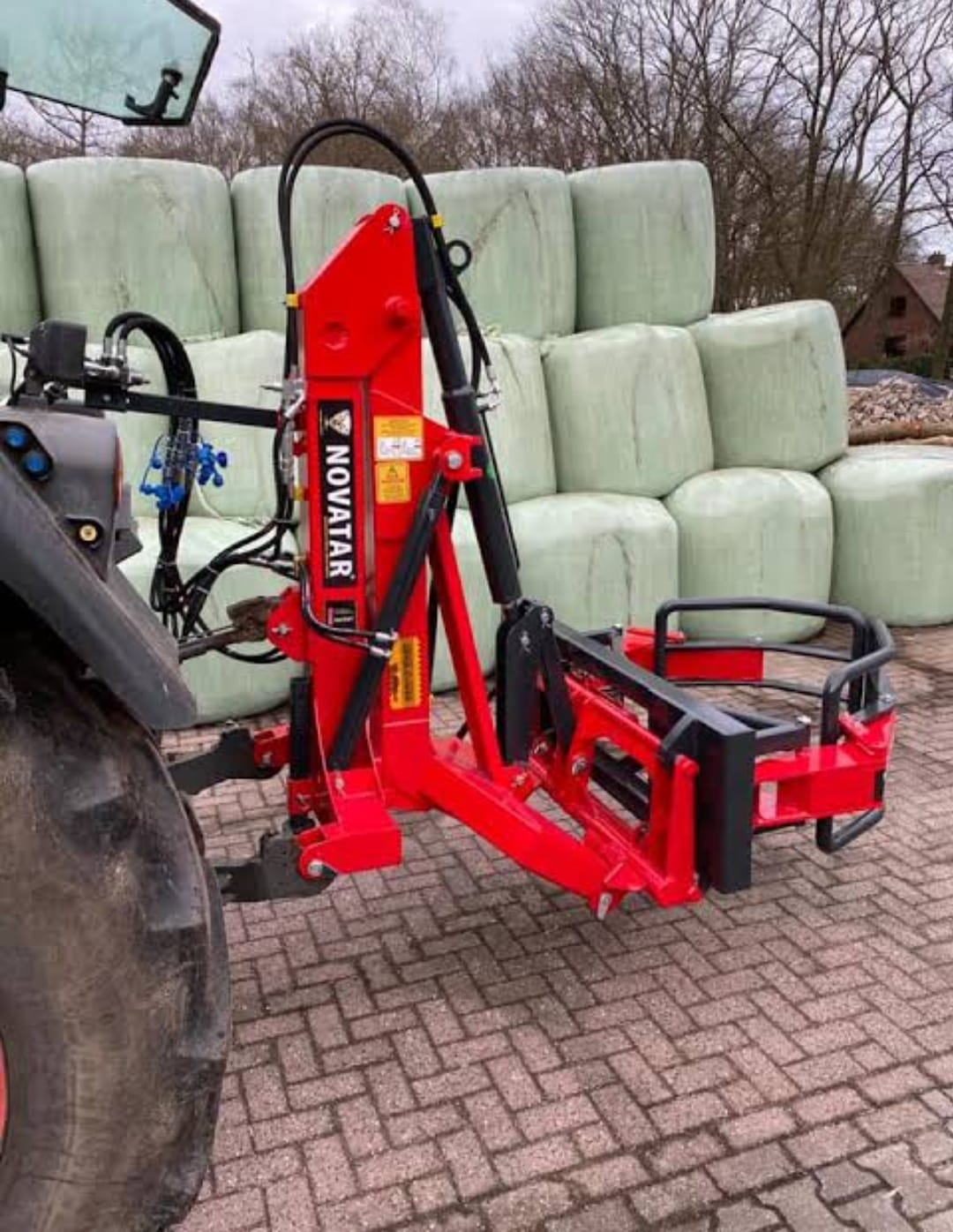

Tractor Rear Loader is produced to load such as manure, straw bale, silage bale etc.

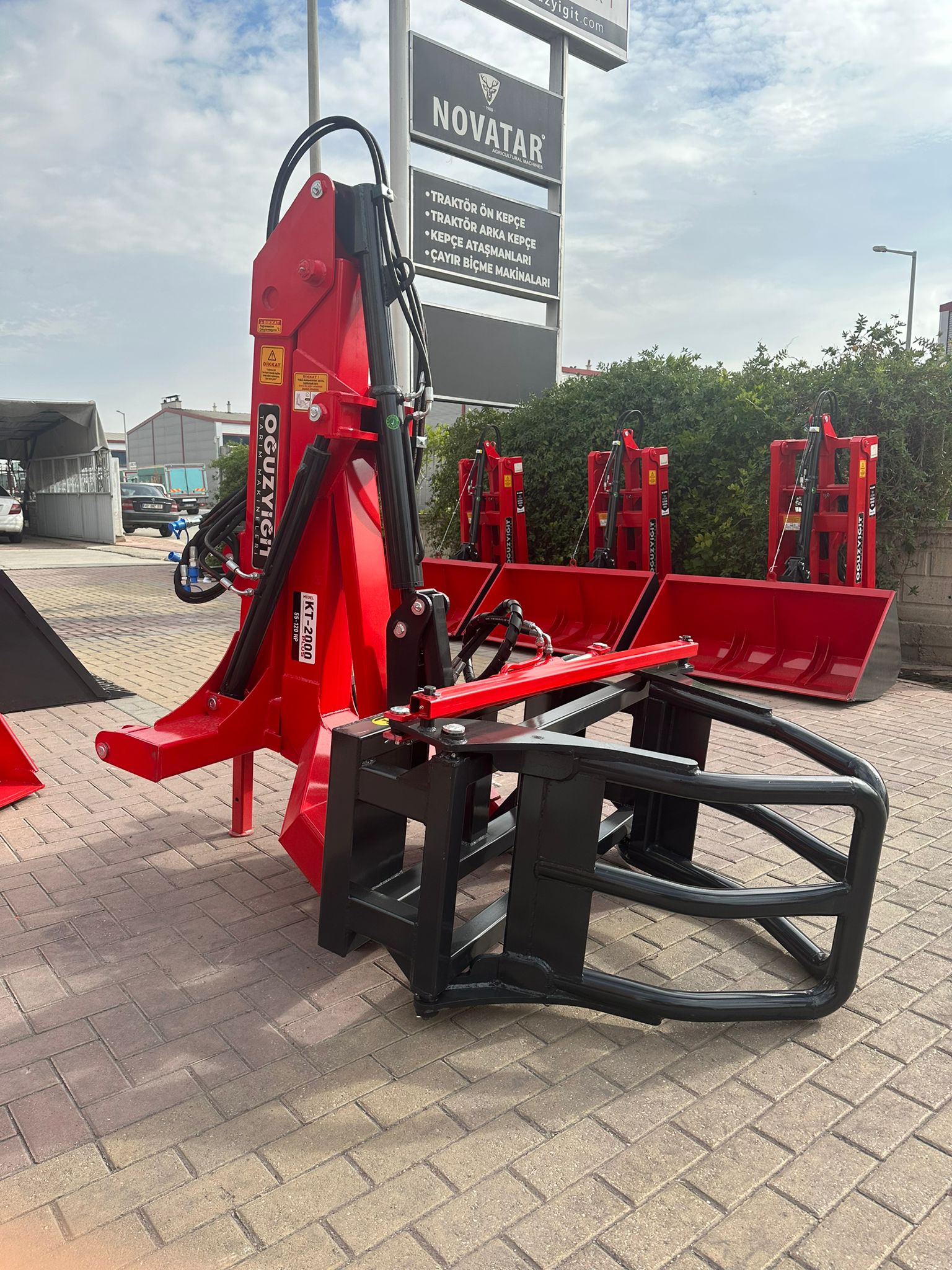

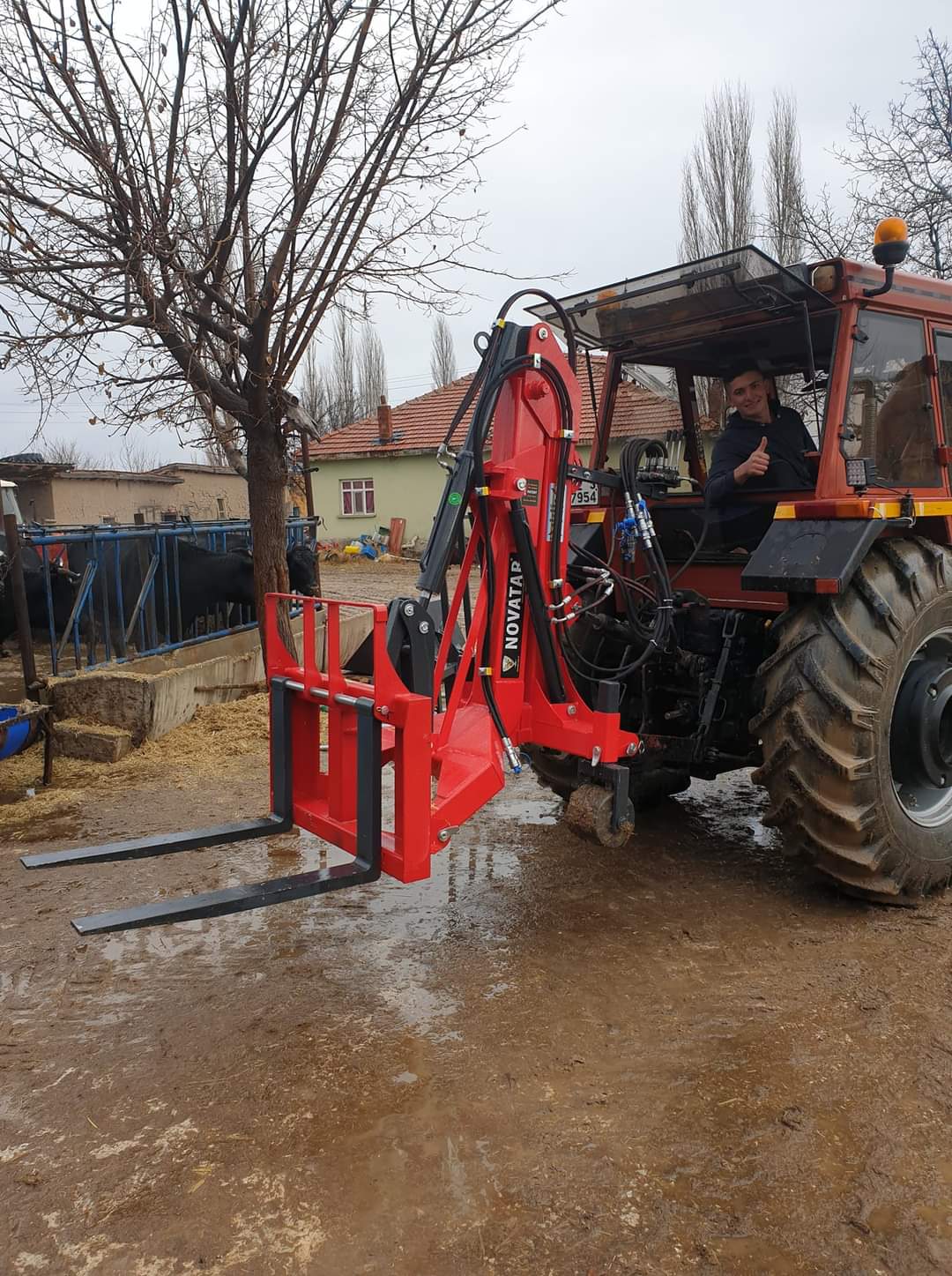

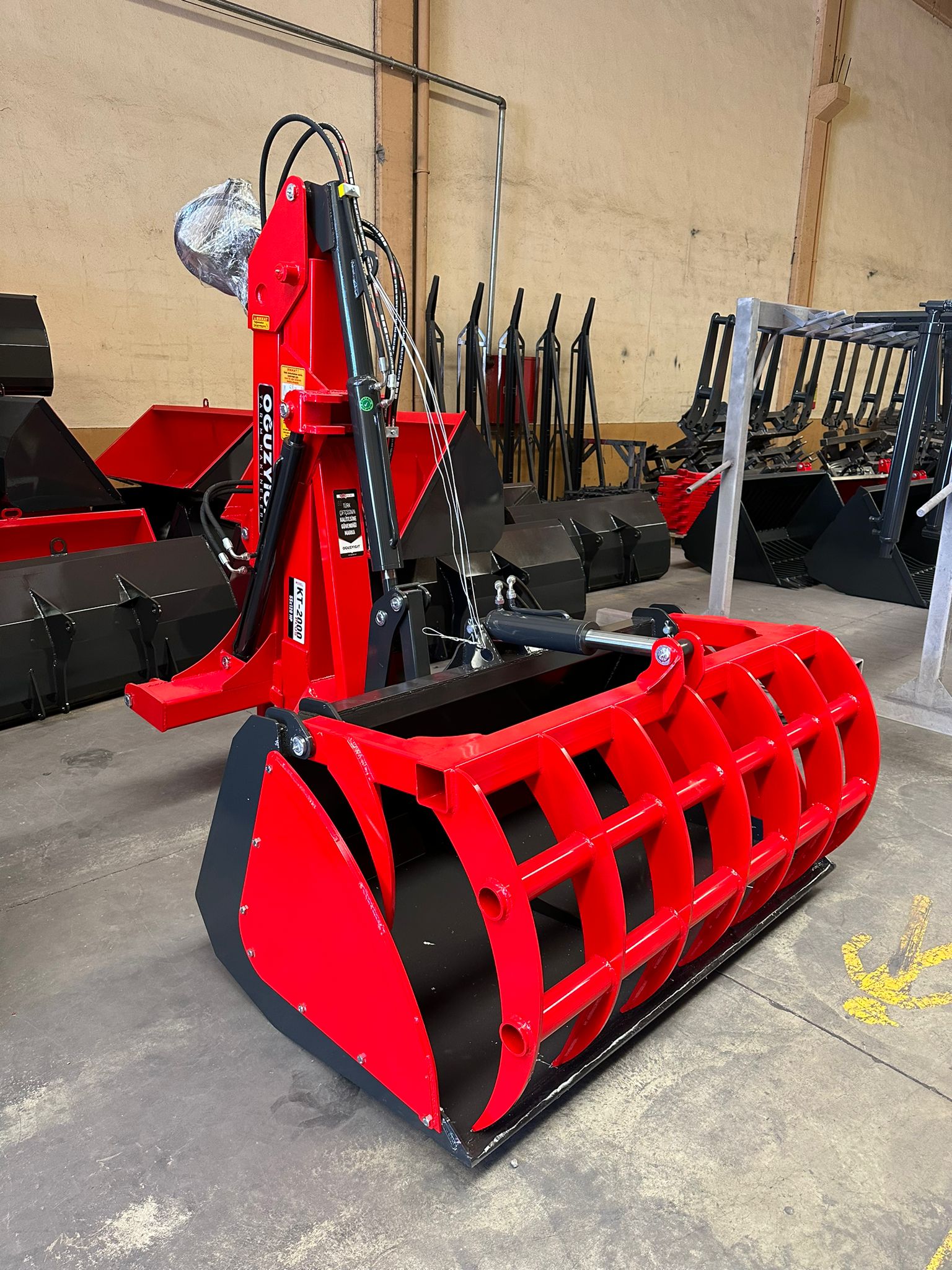

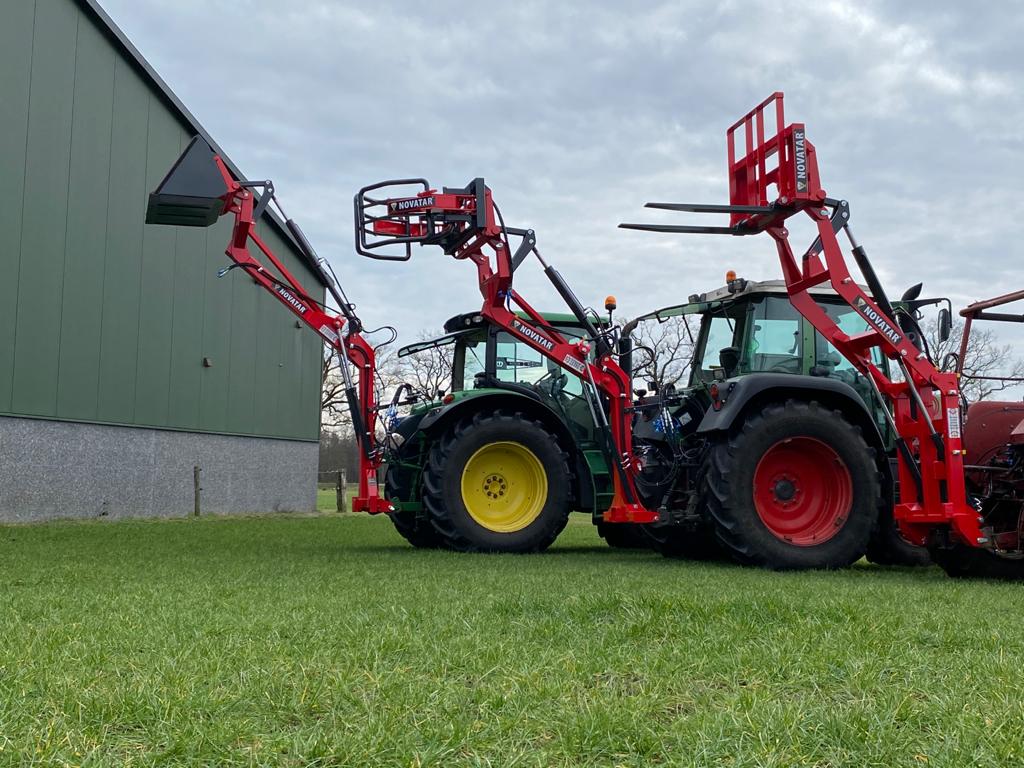

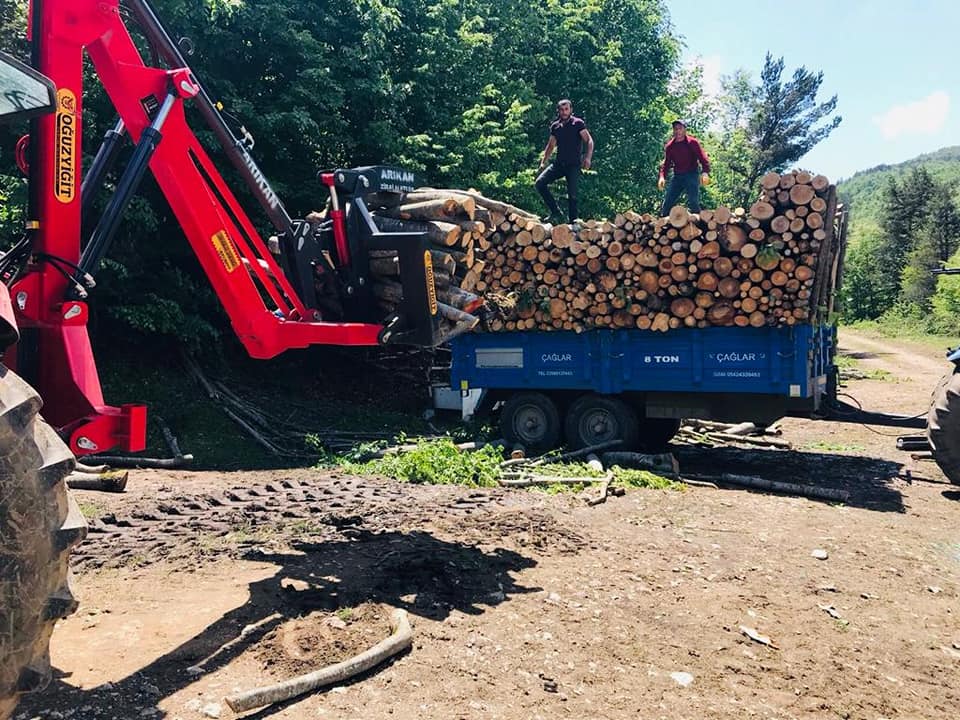

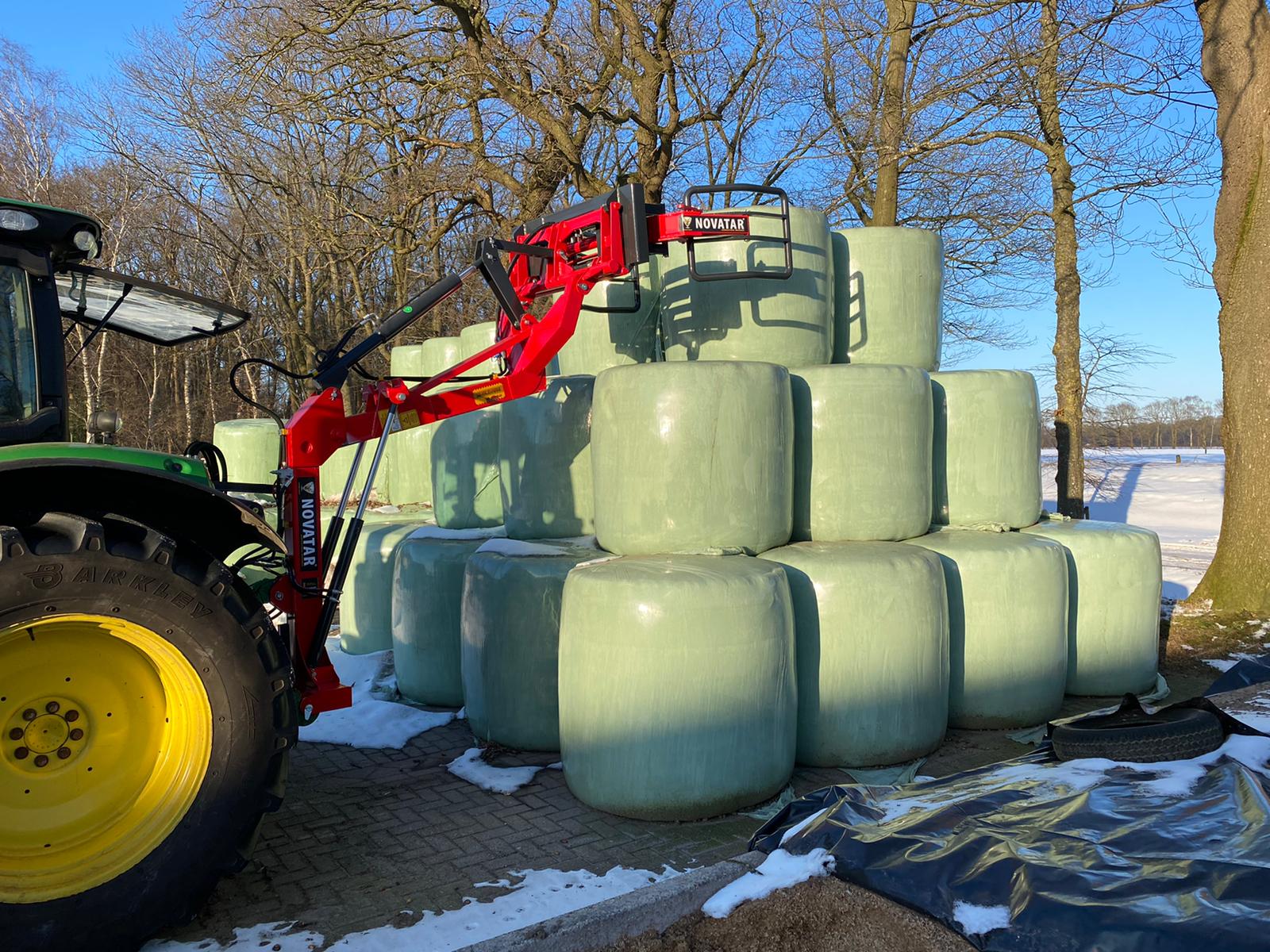

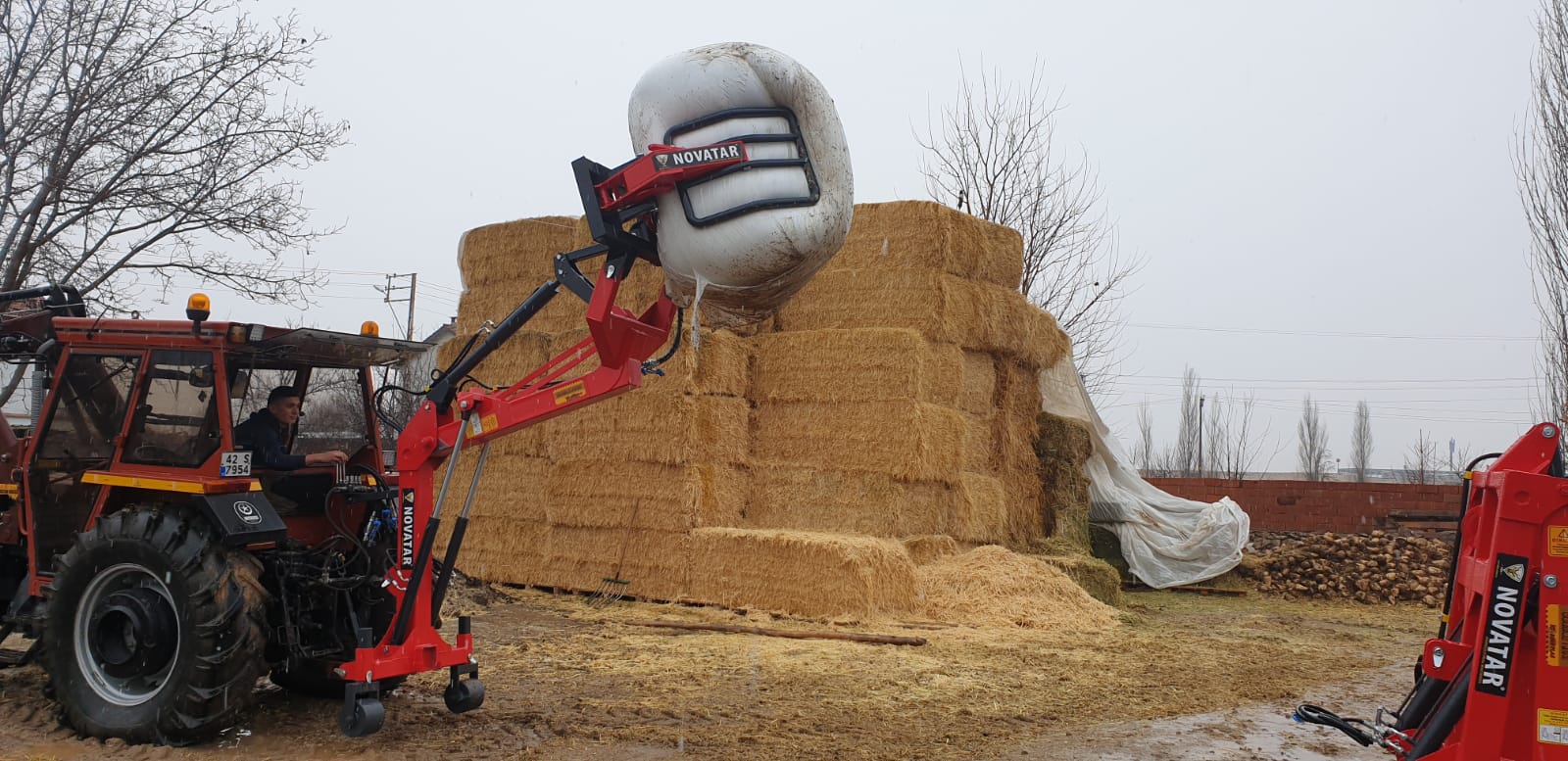

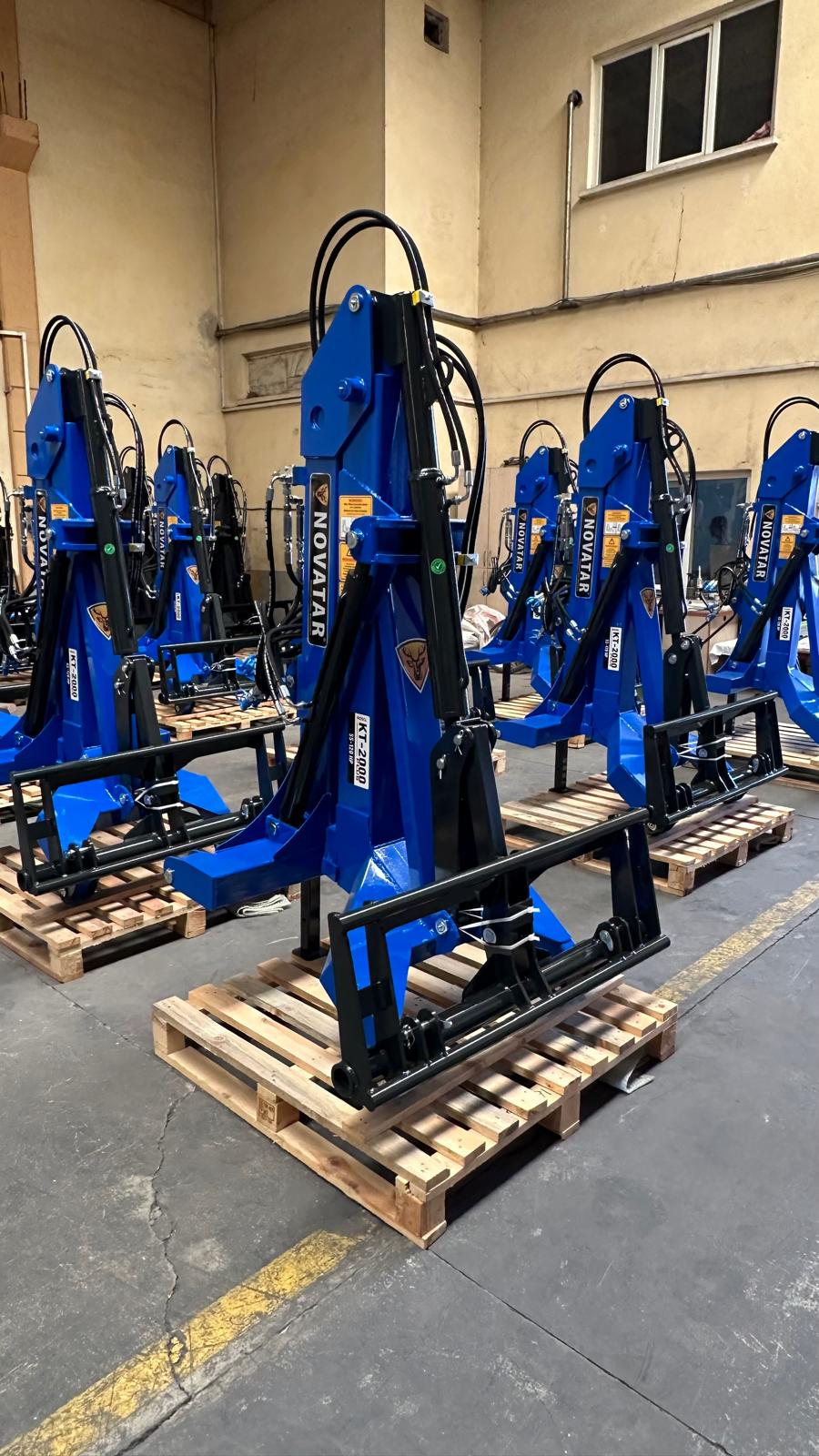

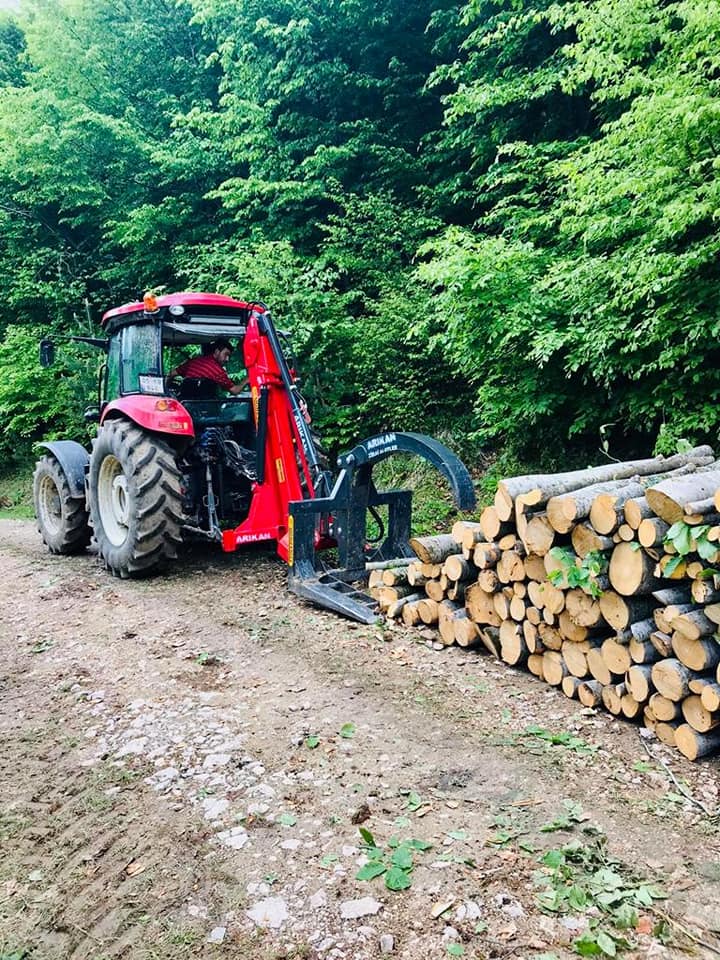

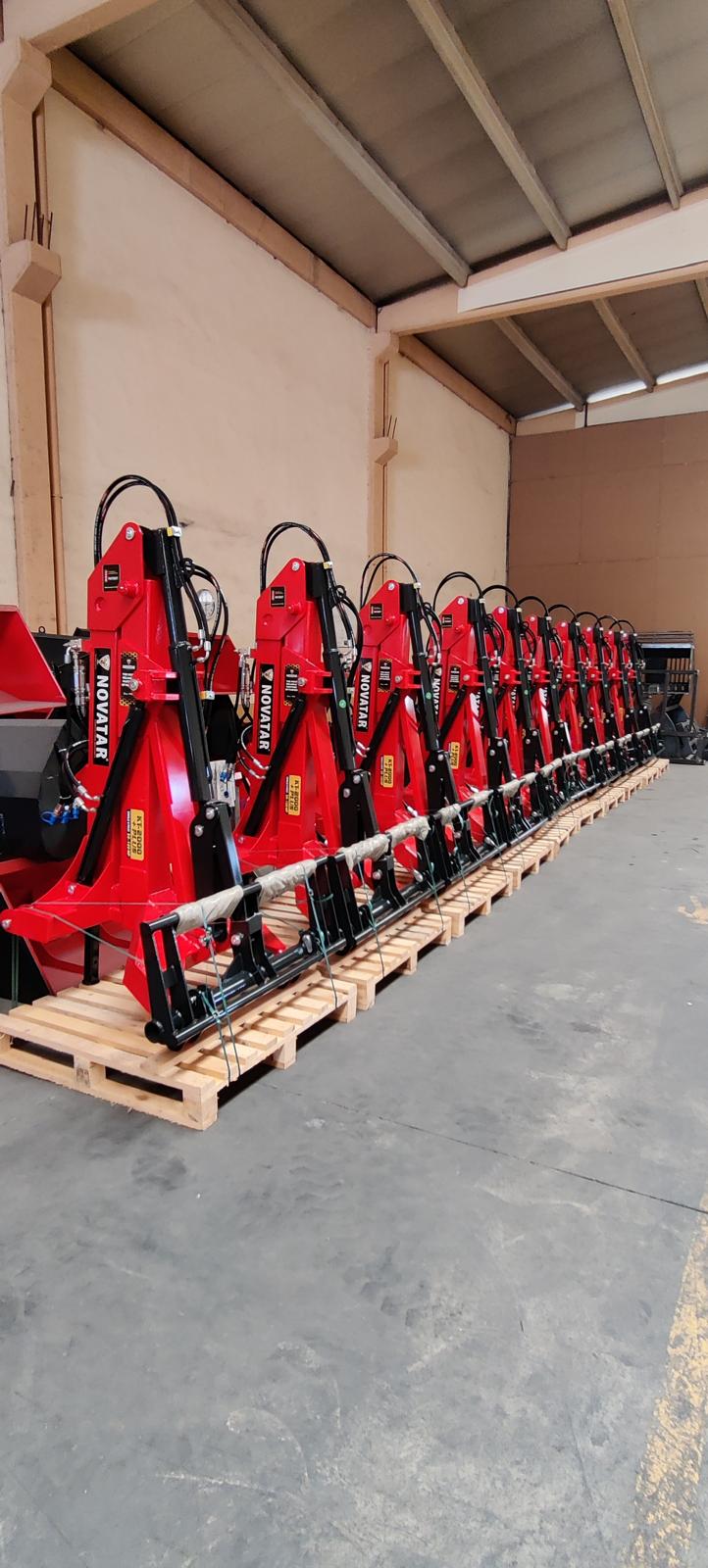

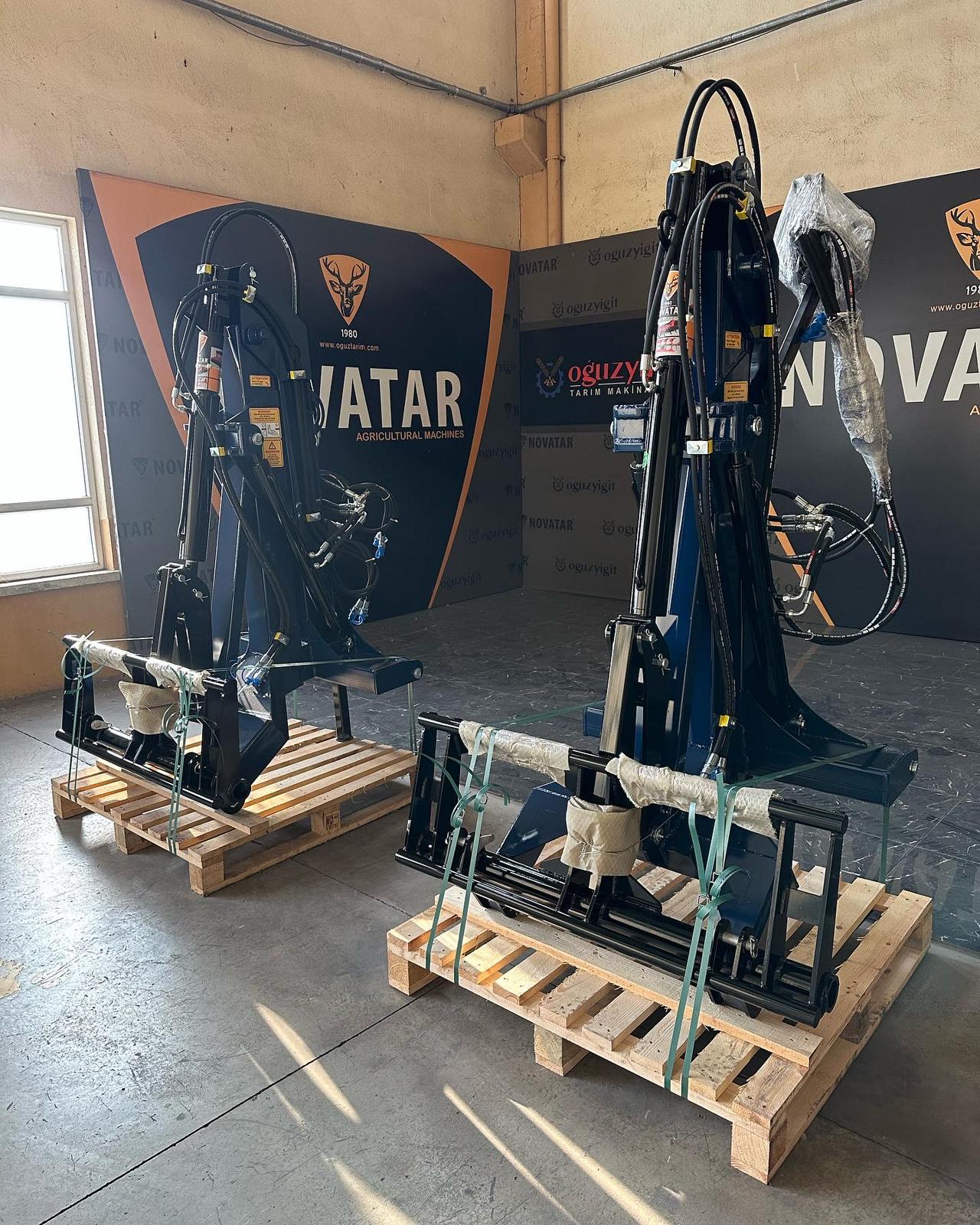

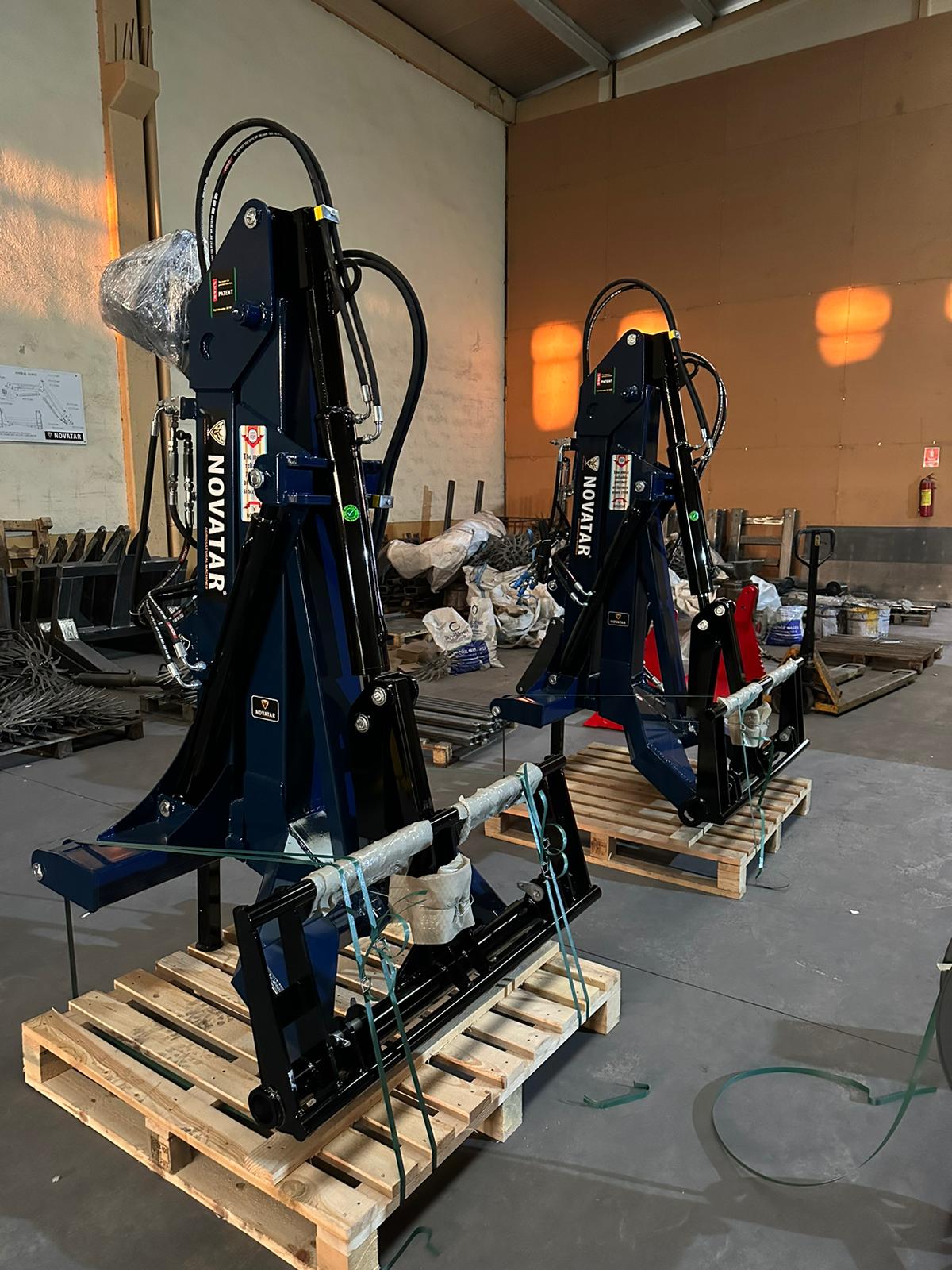

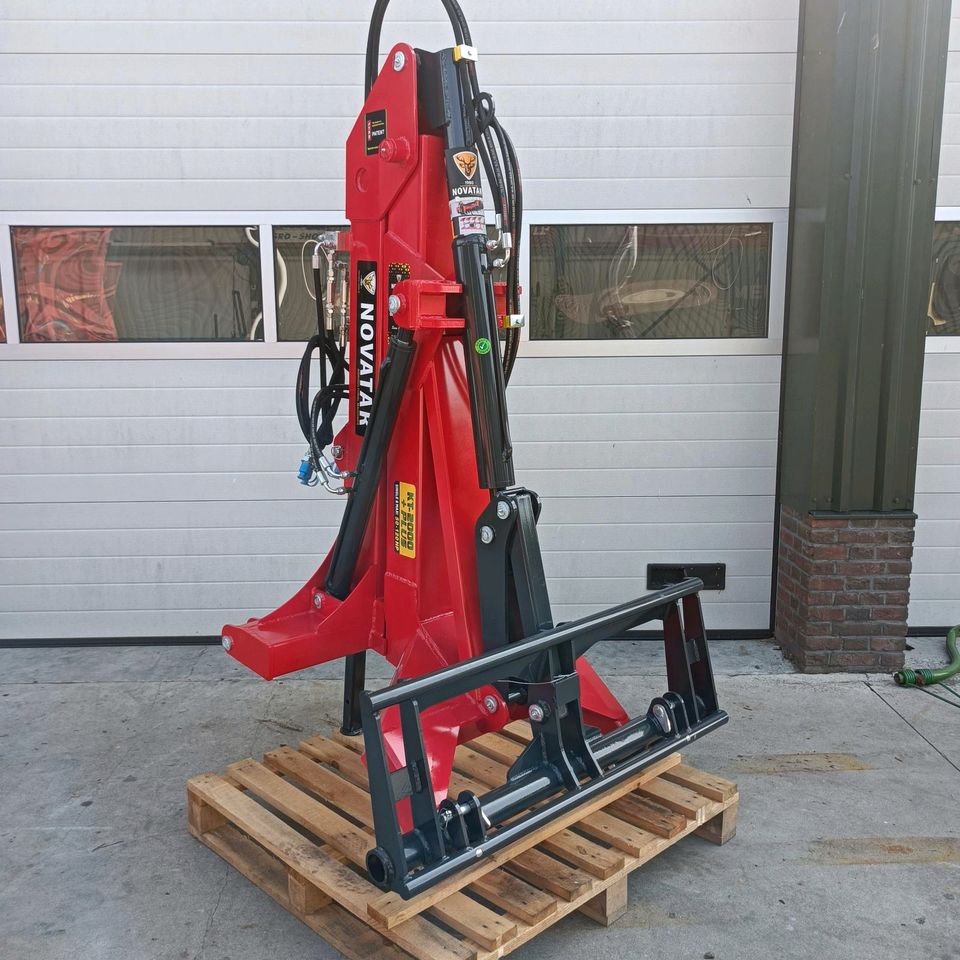

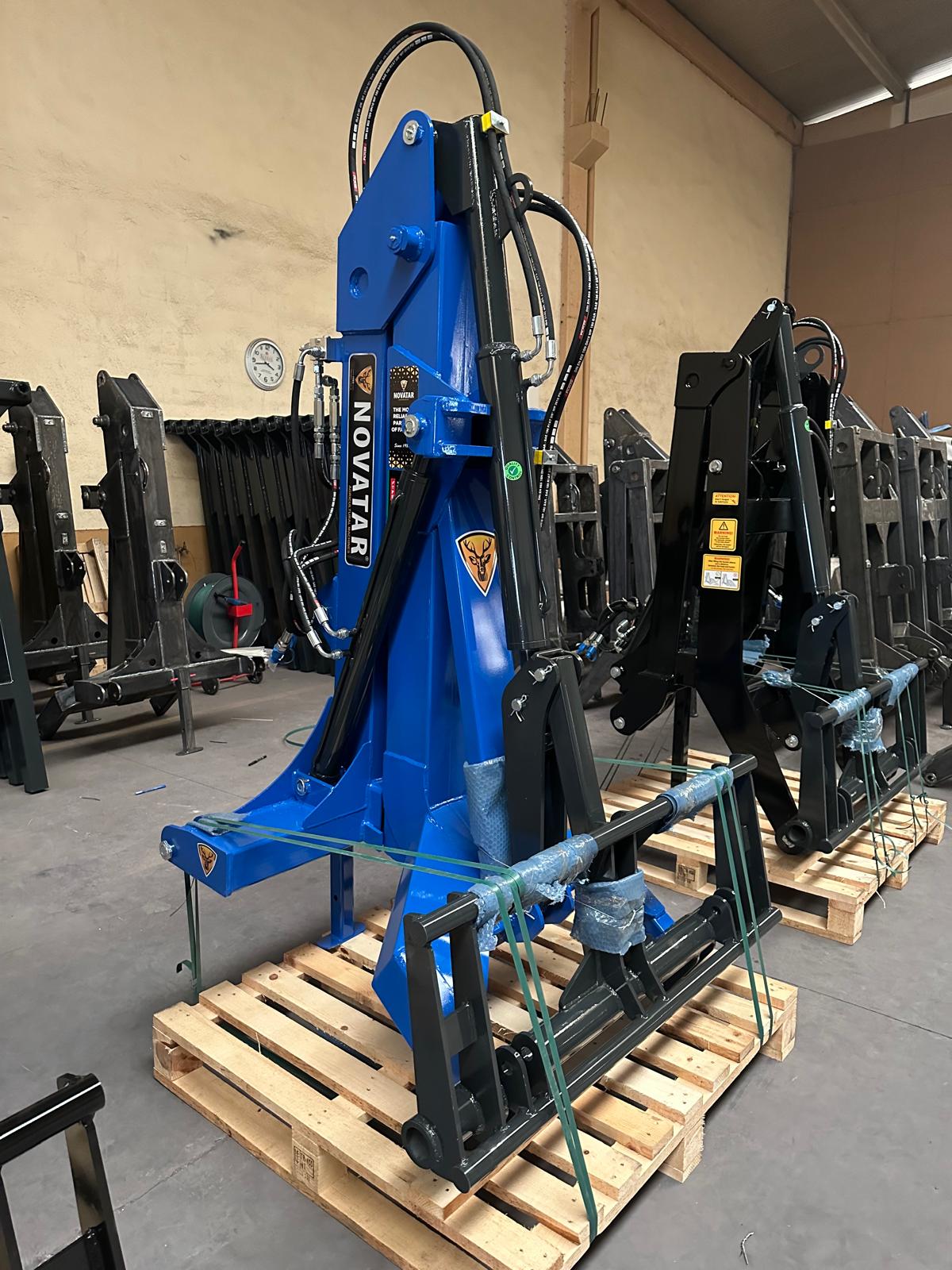

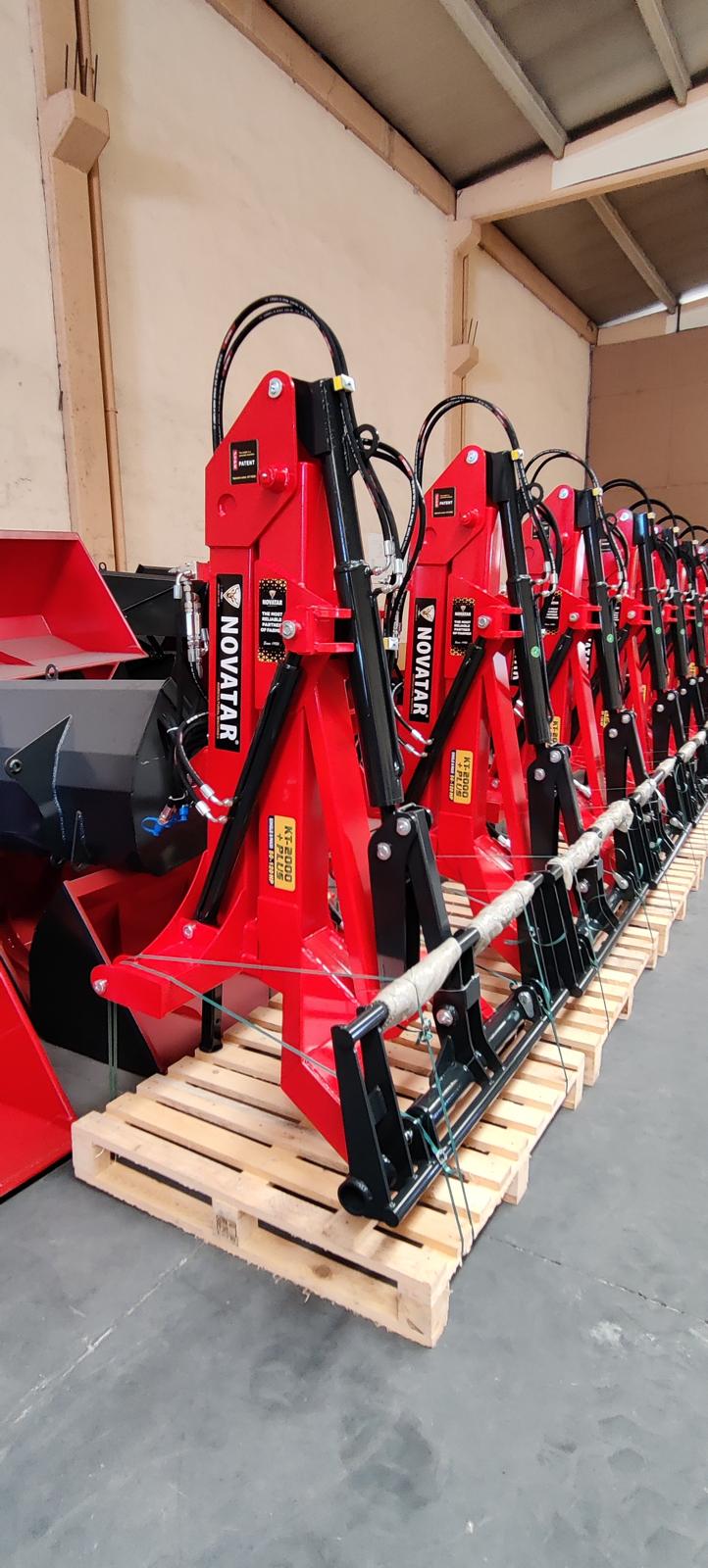

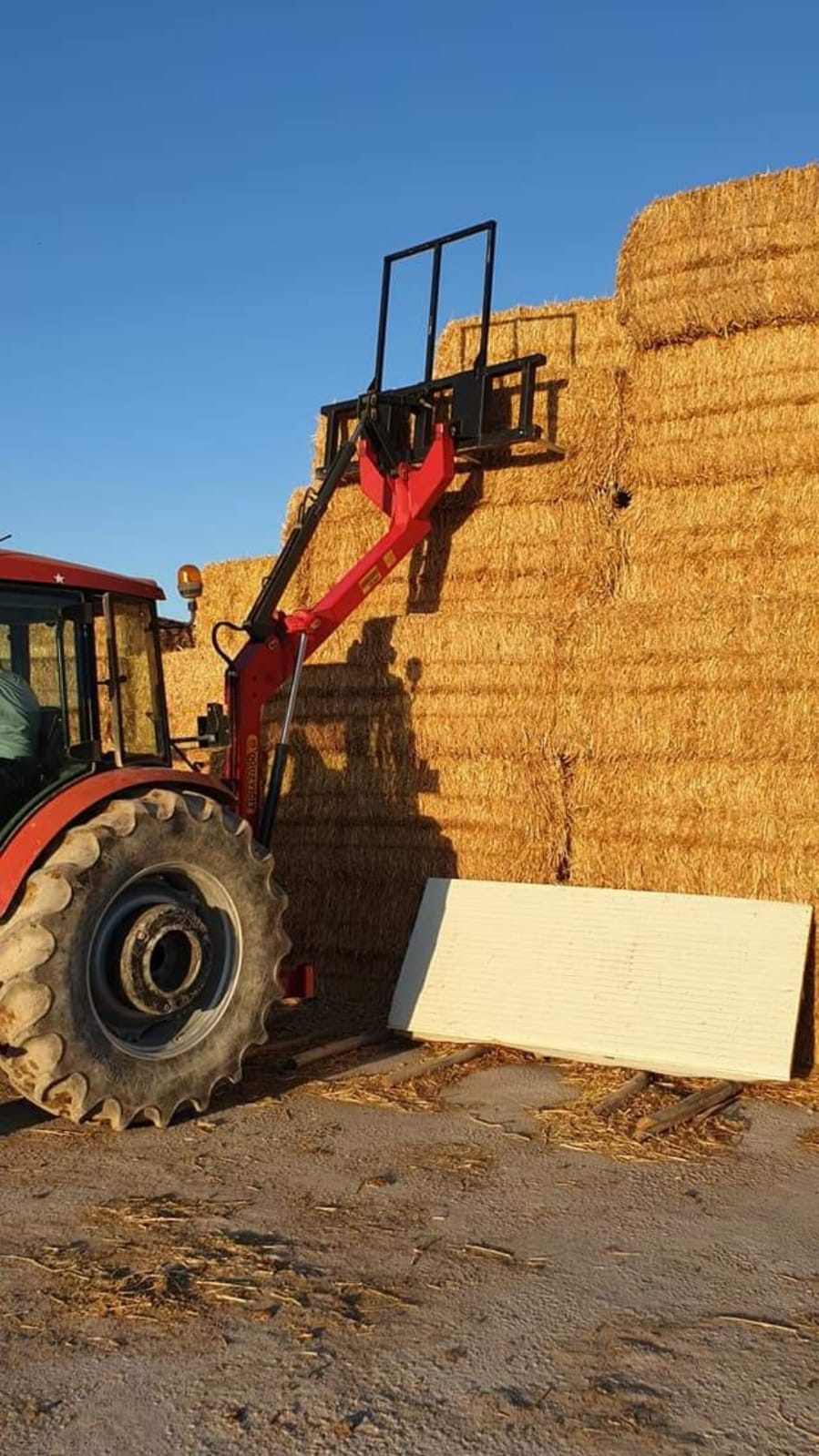

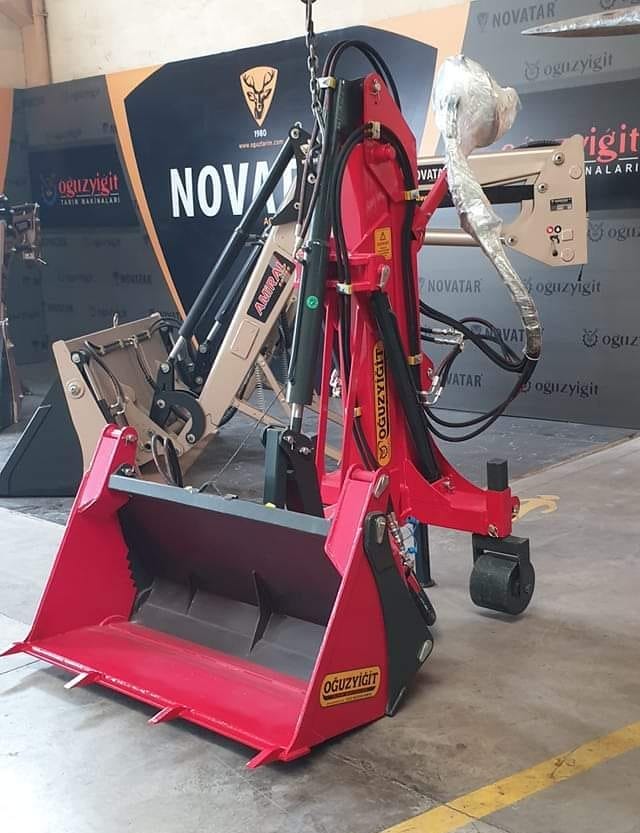

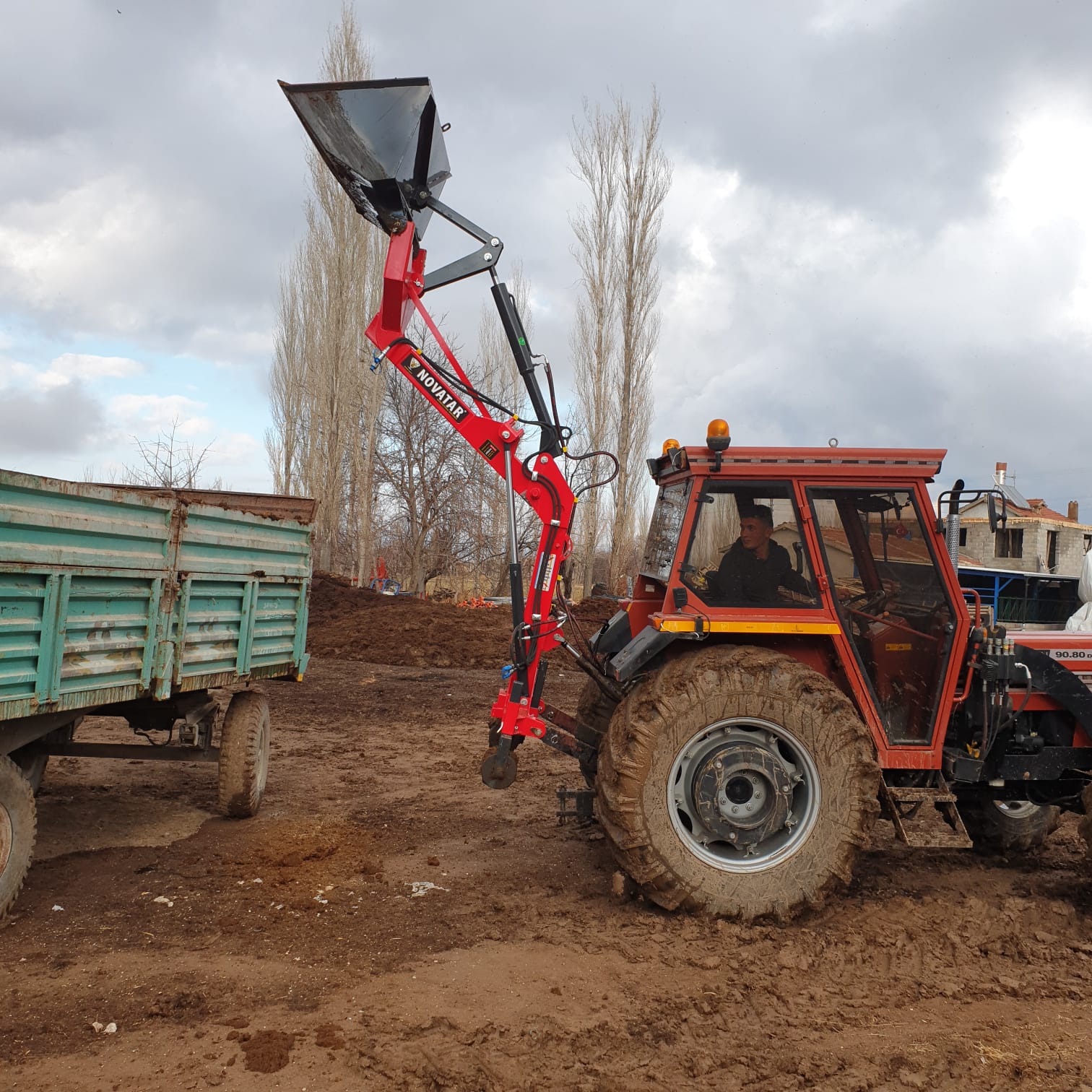

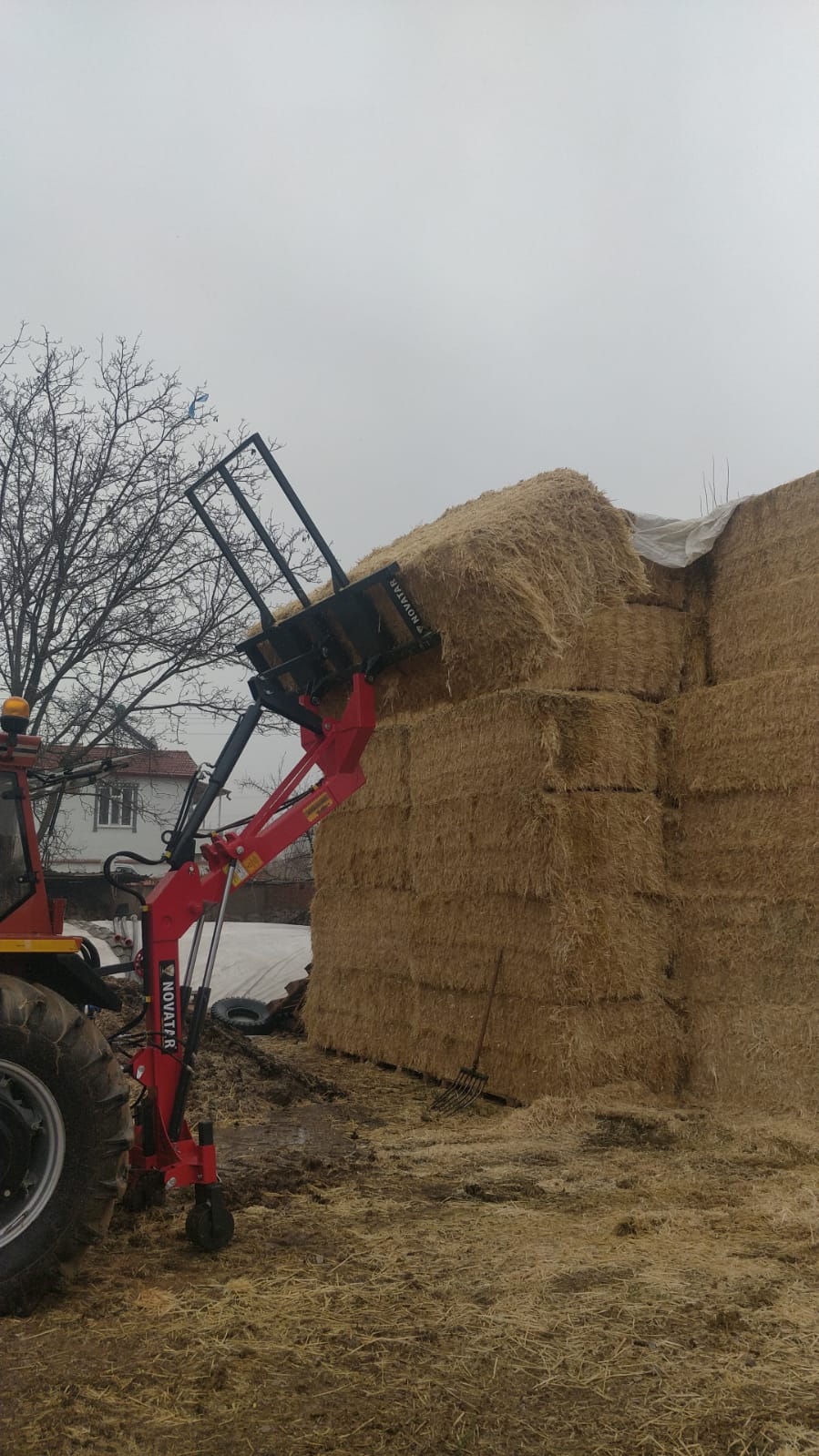

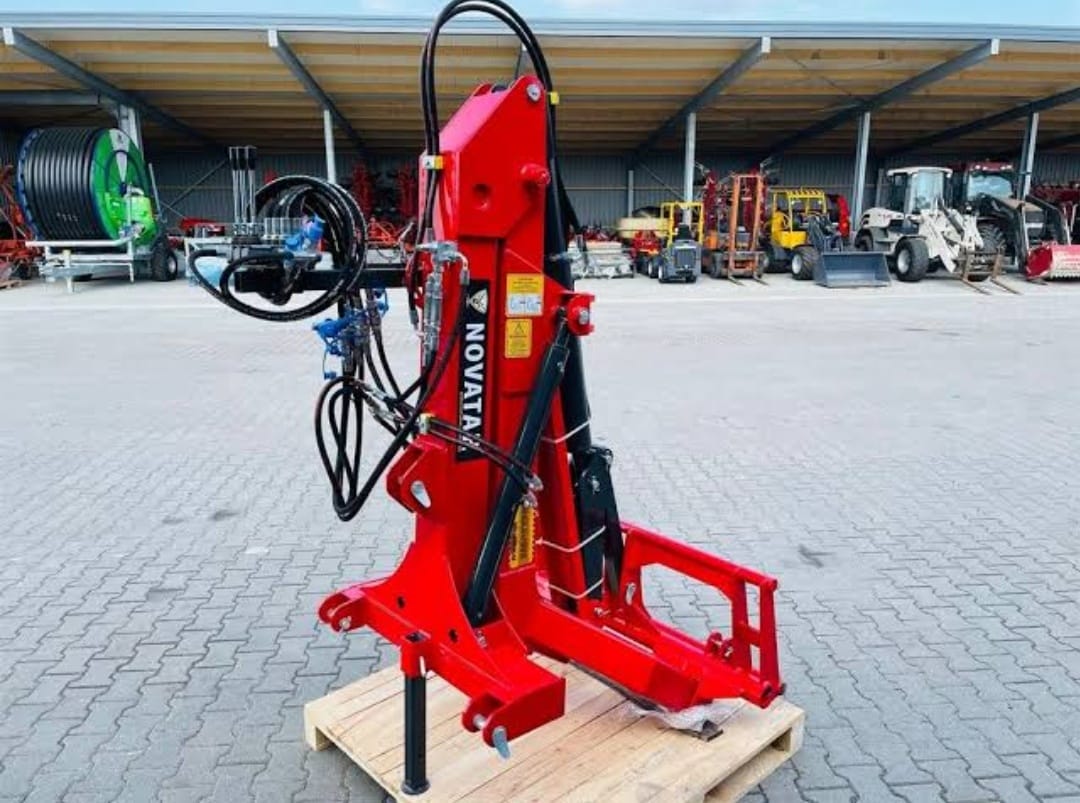

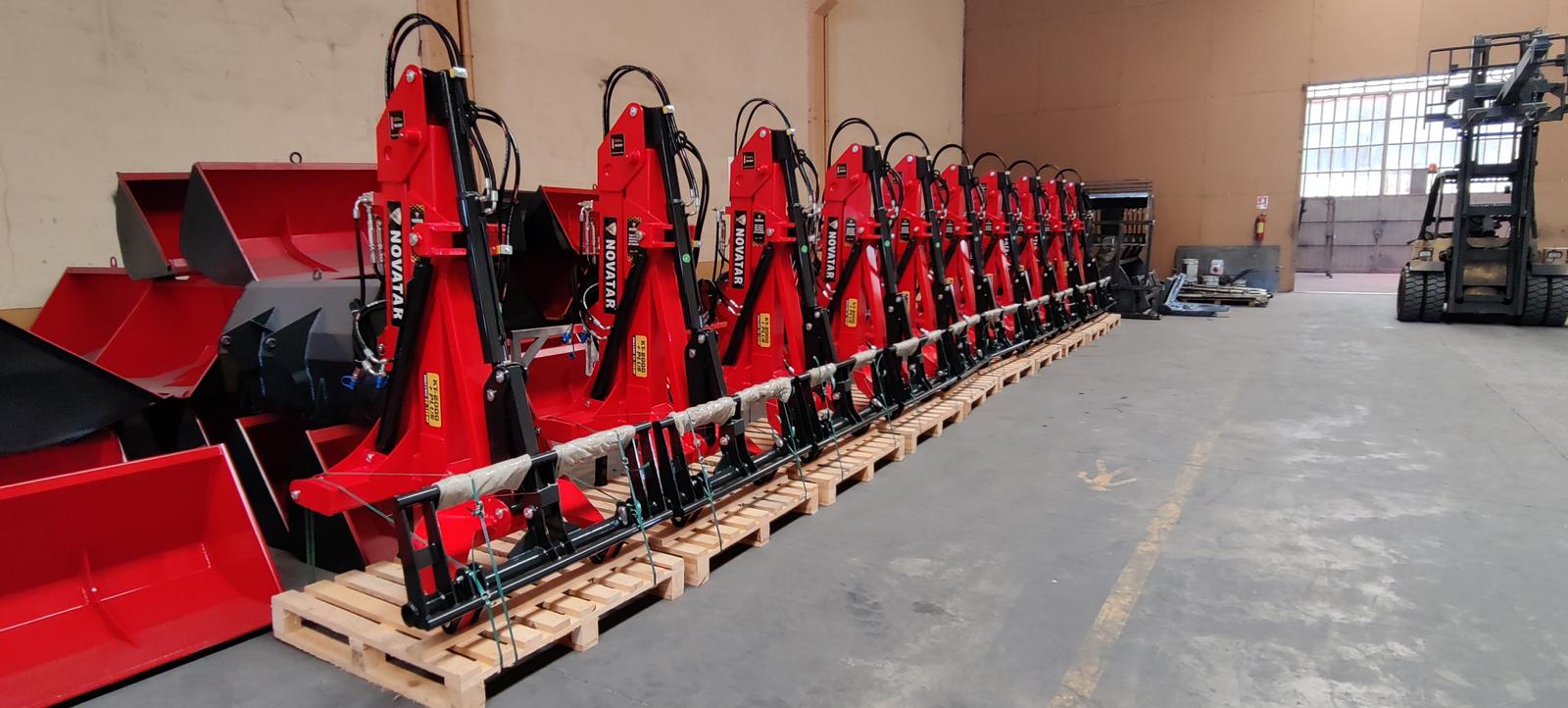

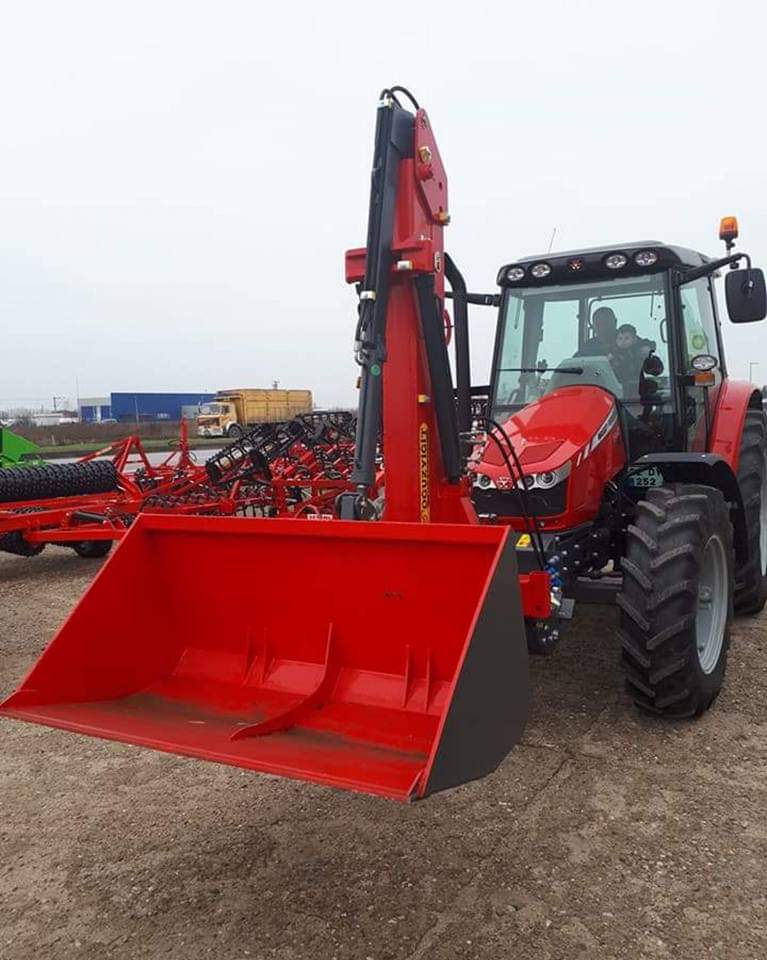

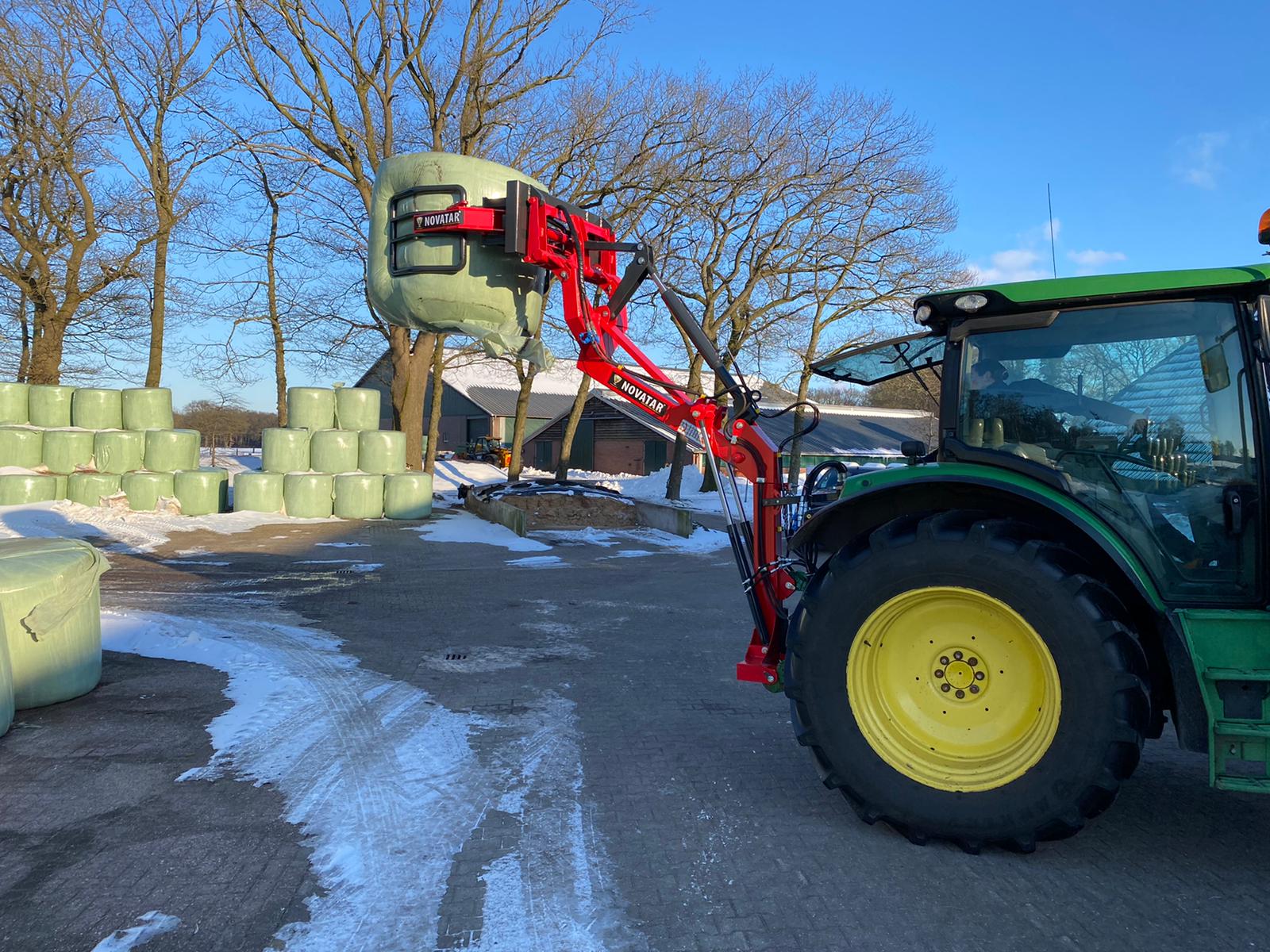

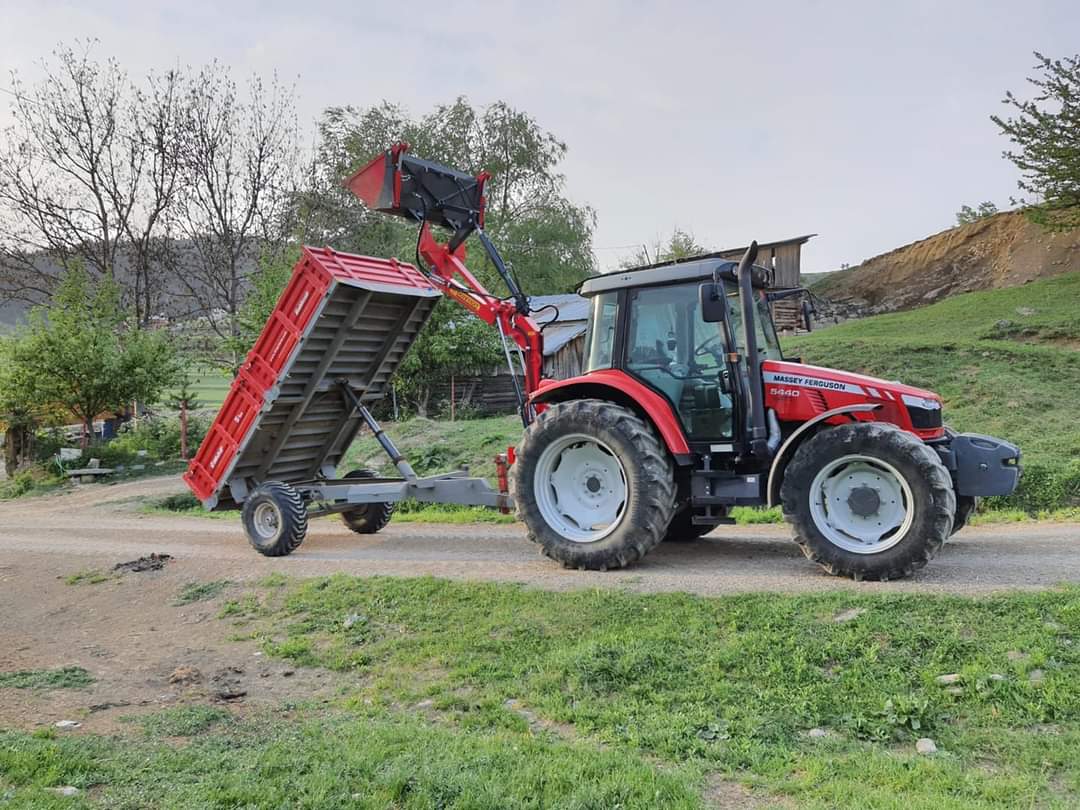

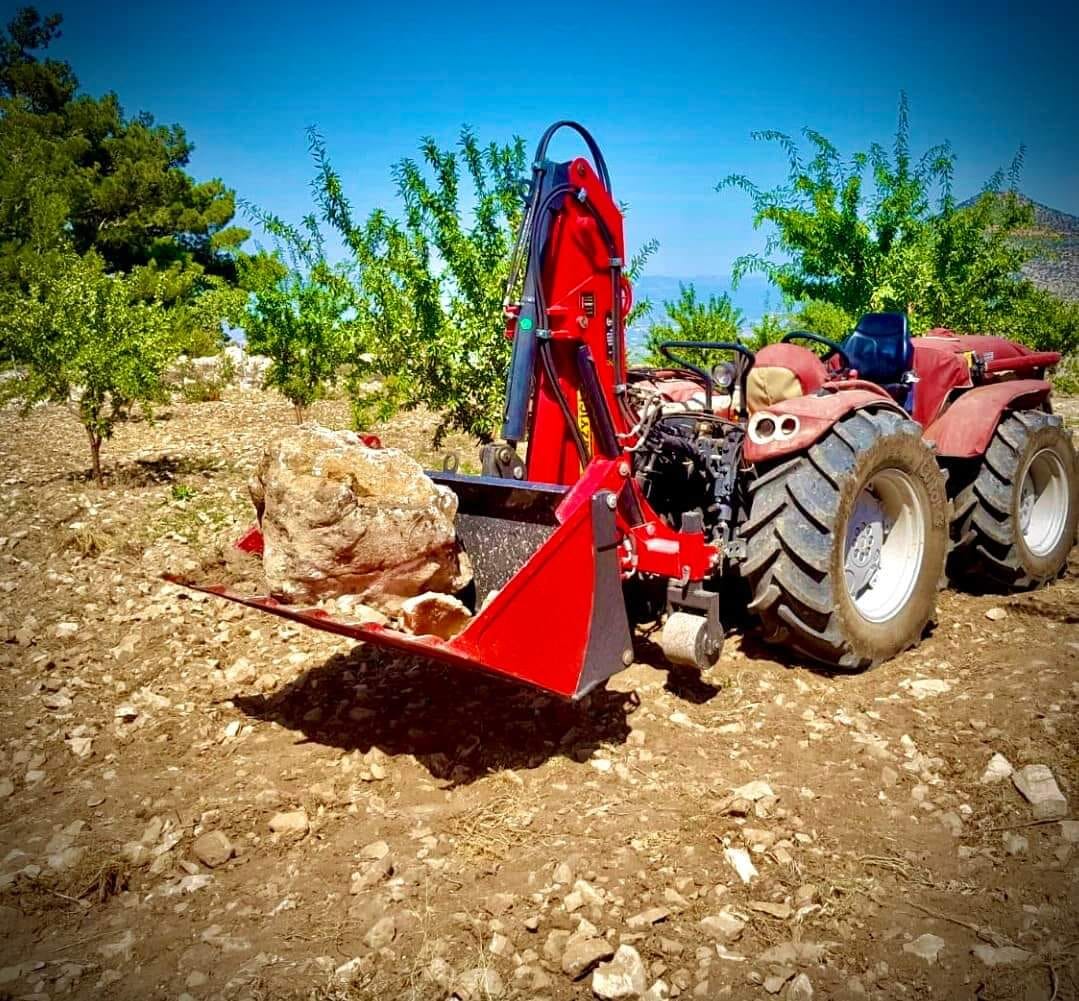

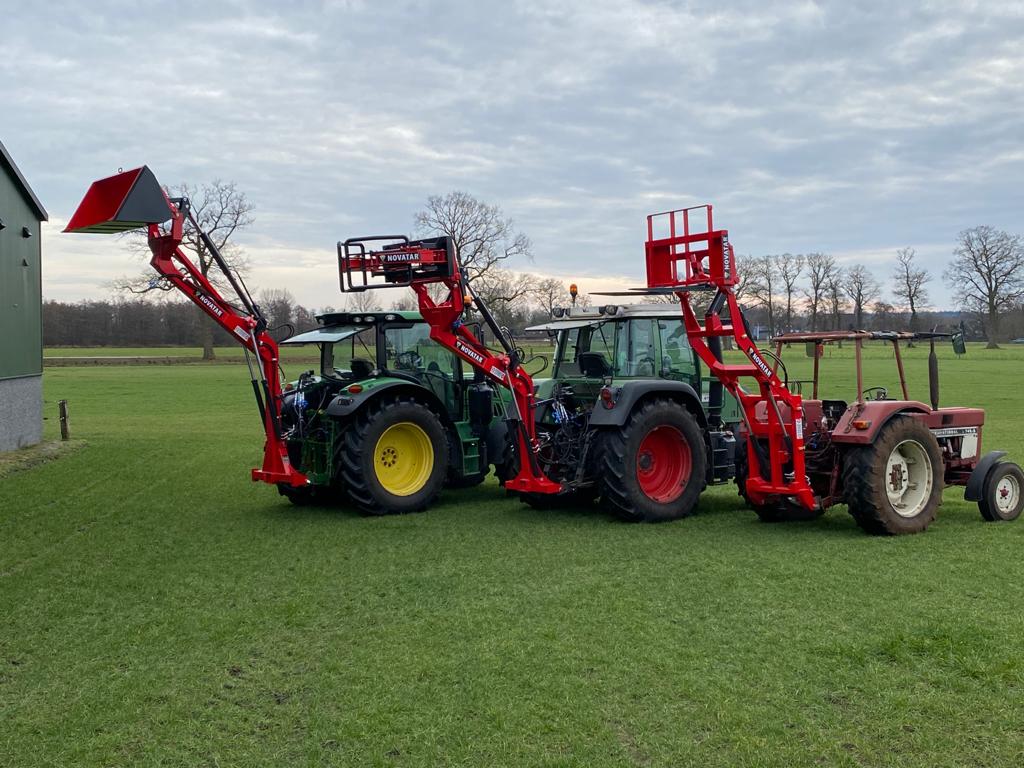

KT2000 Series Tractor Rear loader or Hecklader is fitted with a standard three-point linkage. We produce KT2000 with 3 Point Euro Linkage for Europe. The farmers use KT2000 Rear Shovel to load silage bale, hay bale, straw bale,  etc. We also produce bale forks, silage bale grapple, log grapple, and buckets.

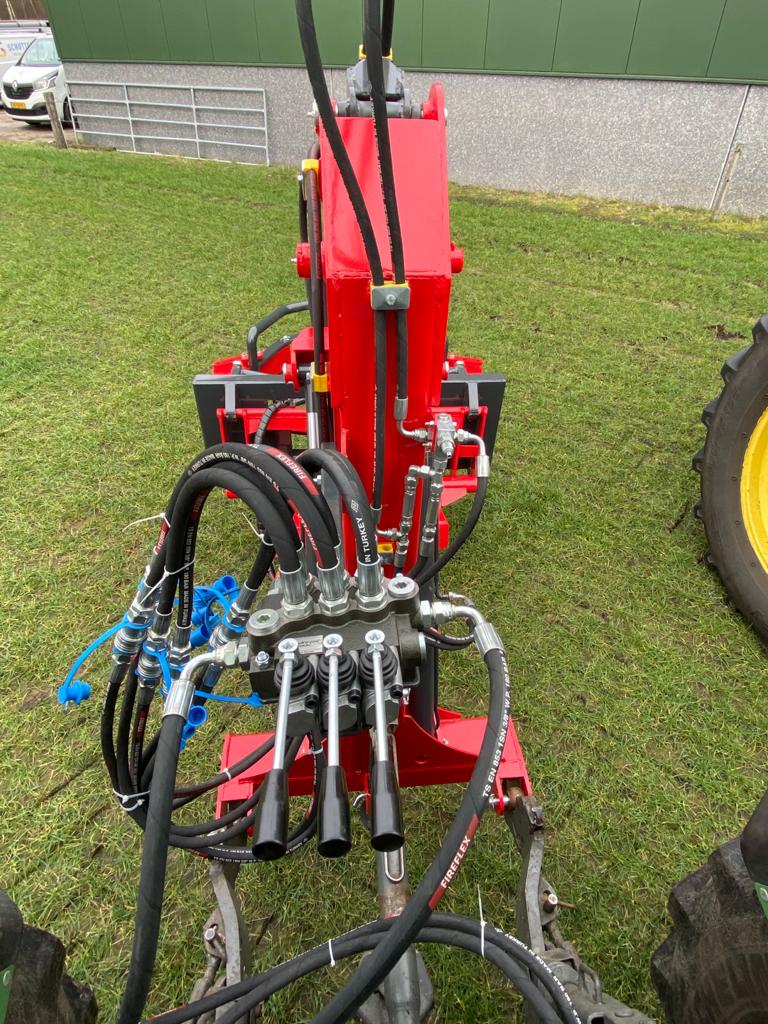

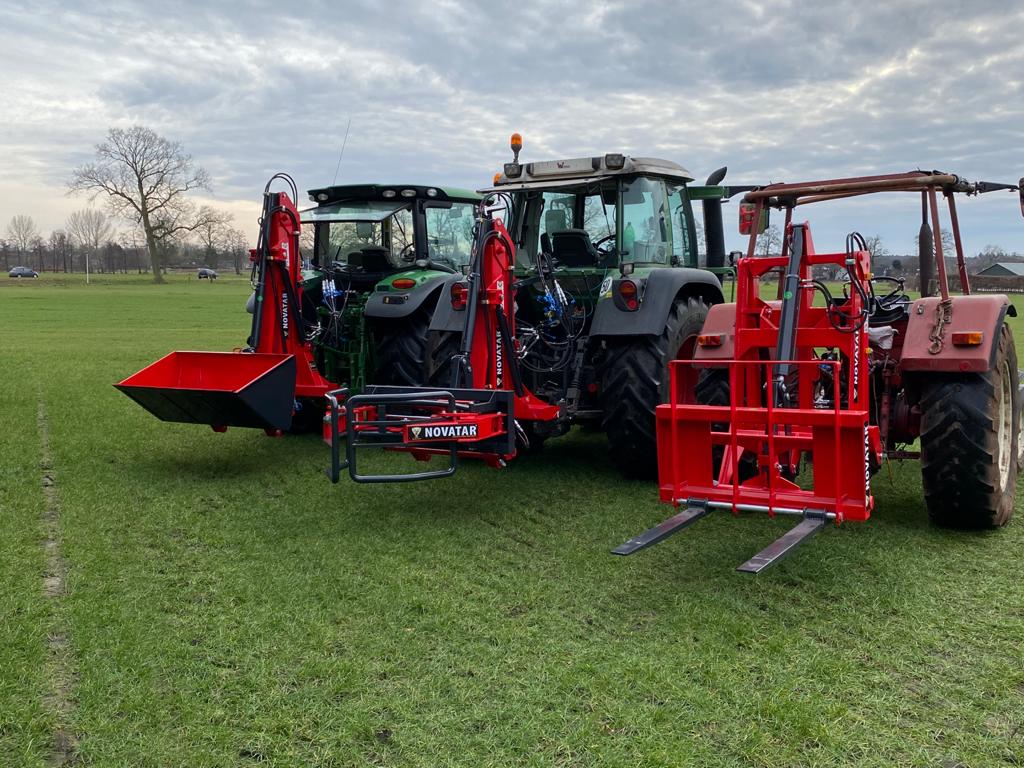

KT2000 Series Tractor Back Loader usable with more than 10 loader attachments. It also has bidirectional double acting hydraulic lifts and the hydraulic lifts work beside the main body so it makes KT-2000 Back Loader stronger.

KT2000 Rear Loader provides you wider viewing angle thanks to single body while you are operating on your field or barn. If you compare KT-2000 Rear Loader to other tractor loaders, you can save your time with KT-2000 thanks to its design, it will serve you for many years with its durability.

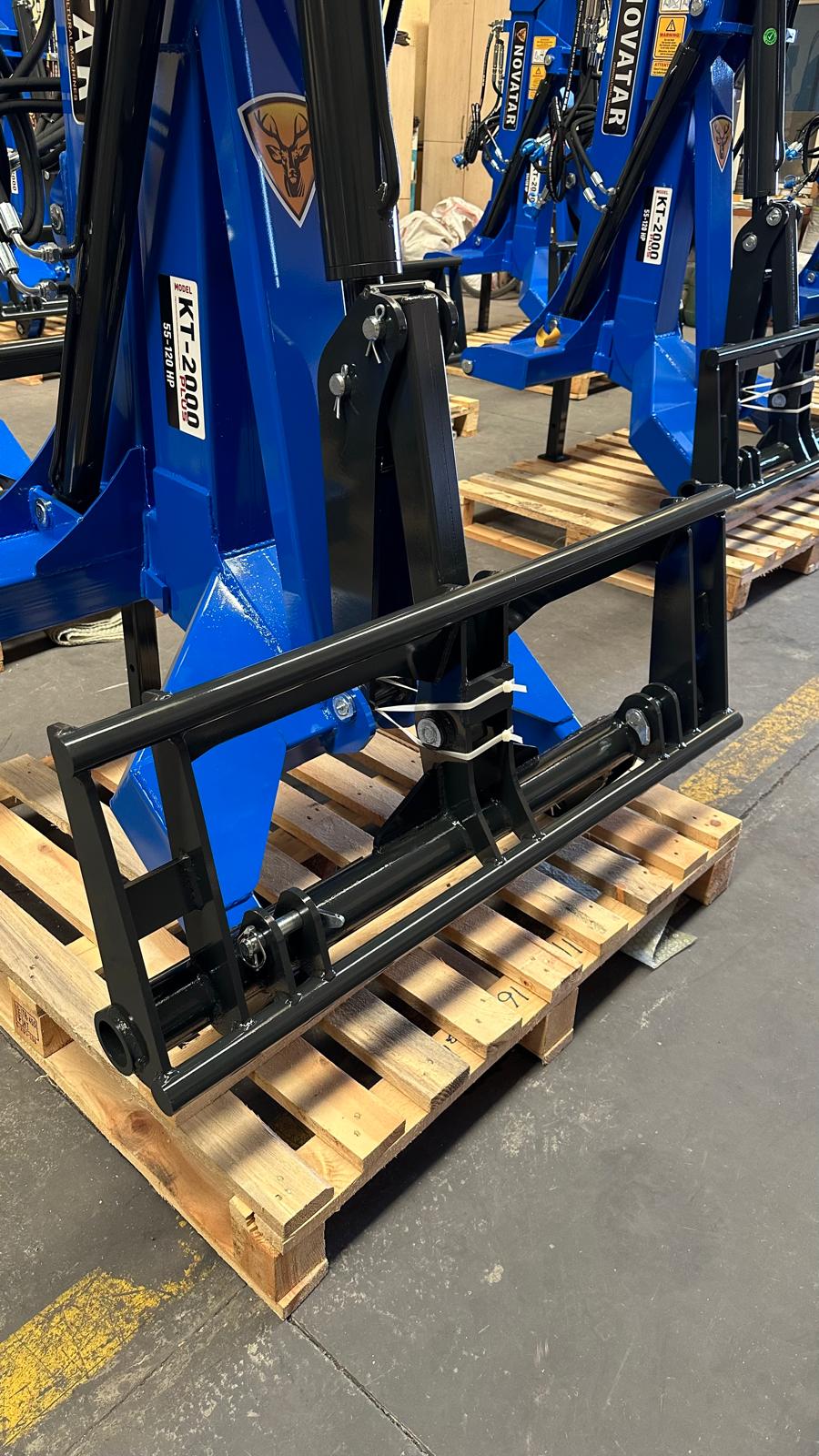

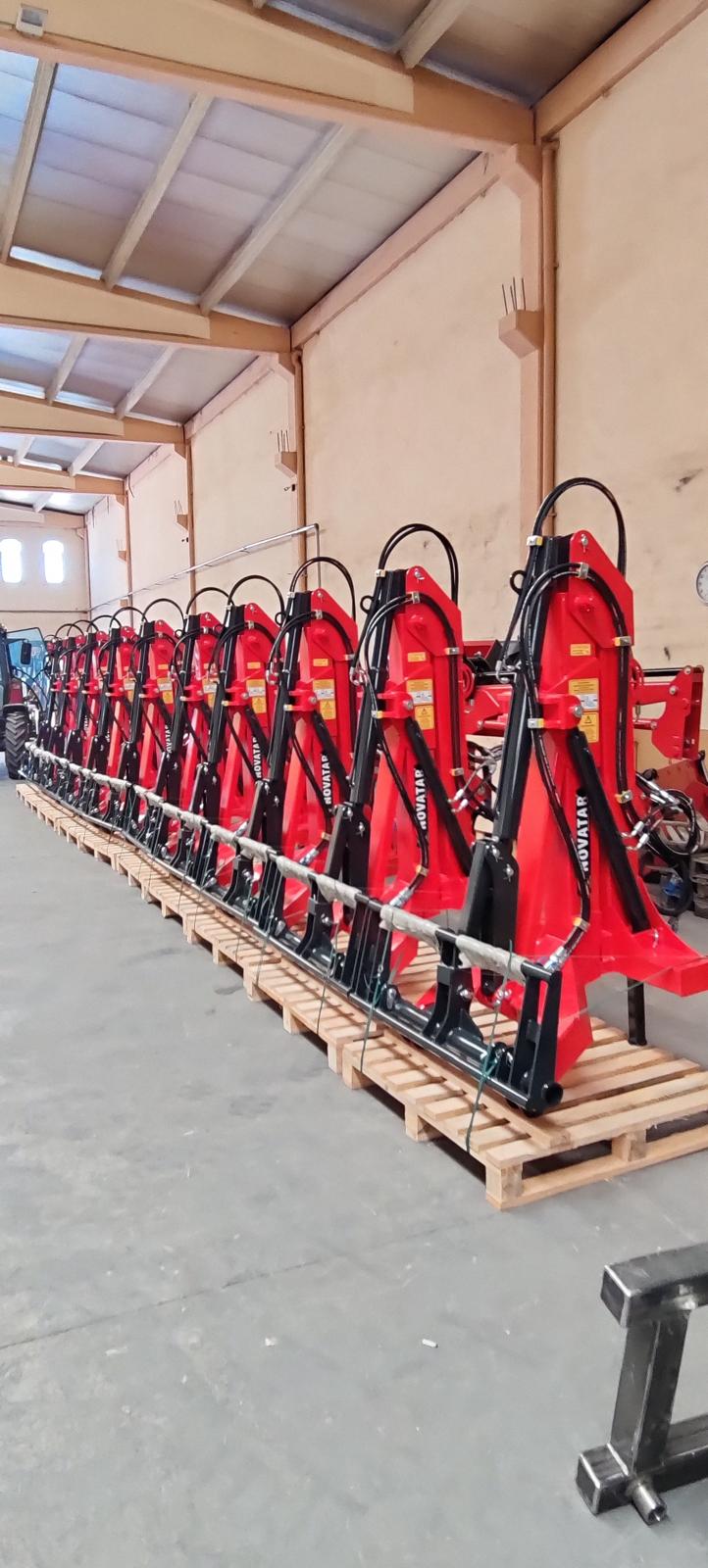

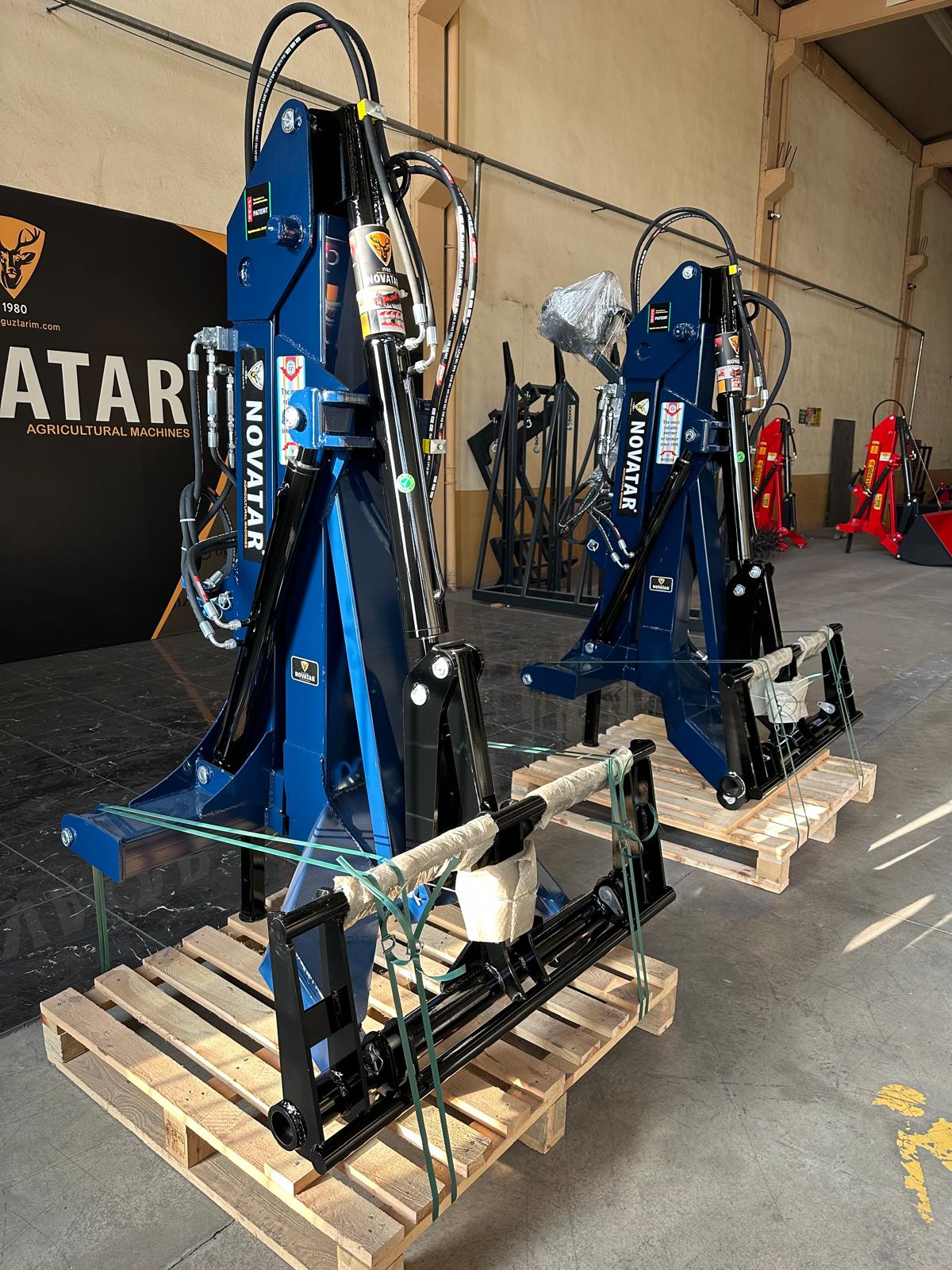

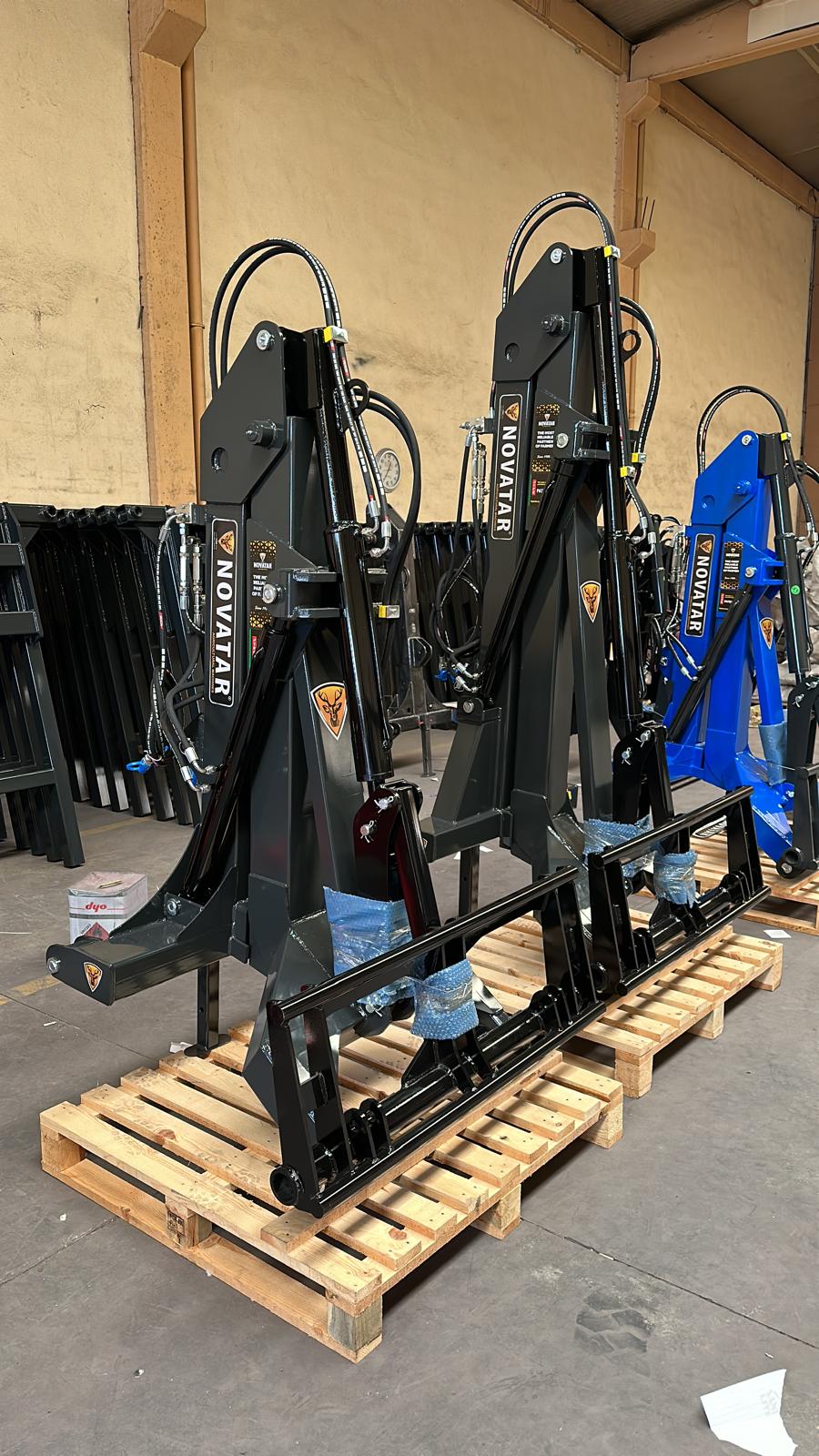

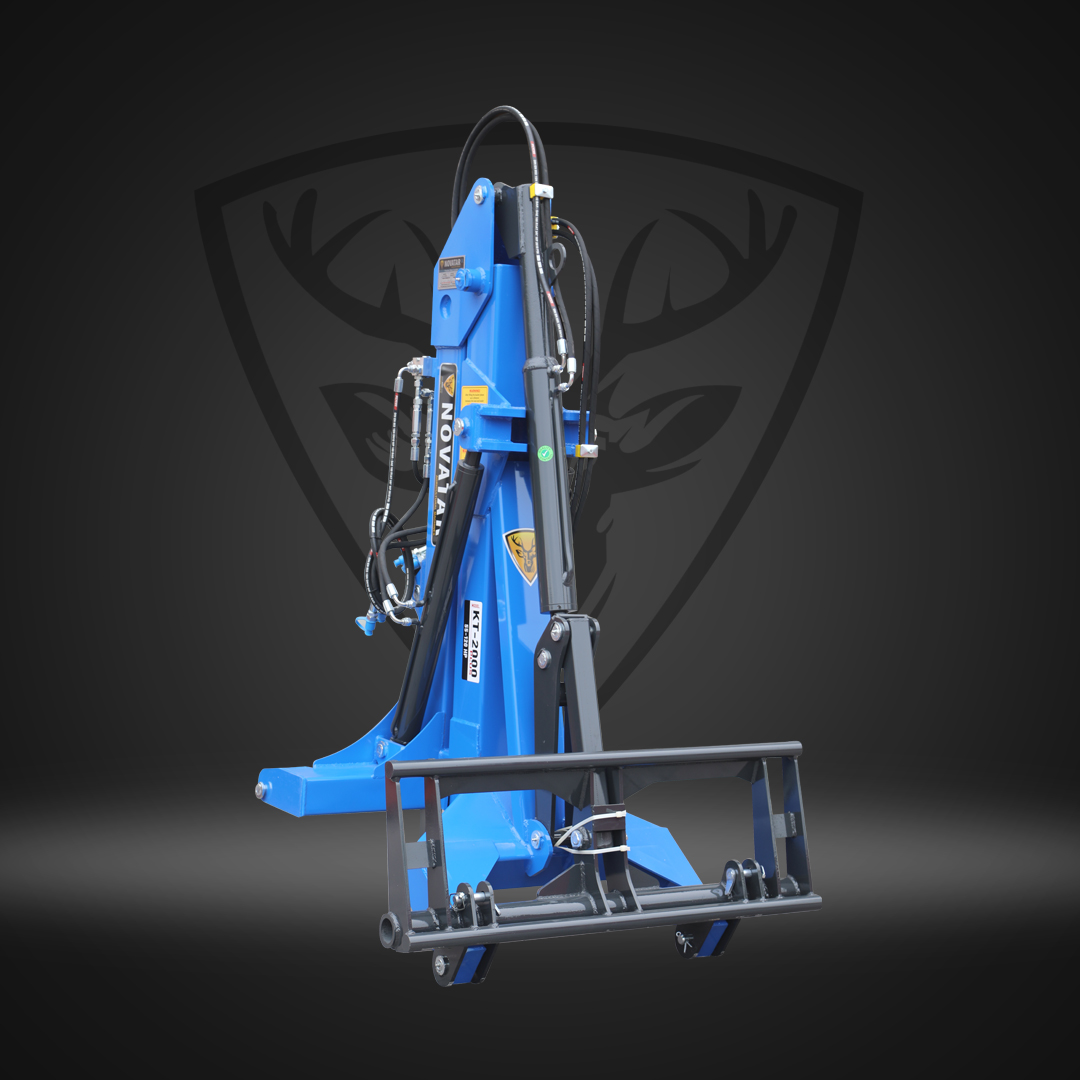

What is Quick Coupling Loader or Euro Linkage ?

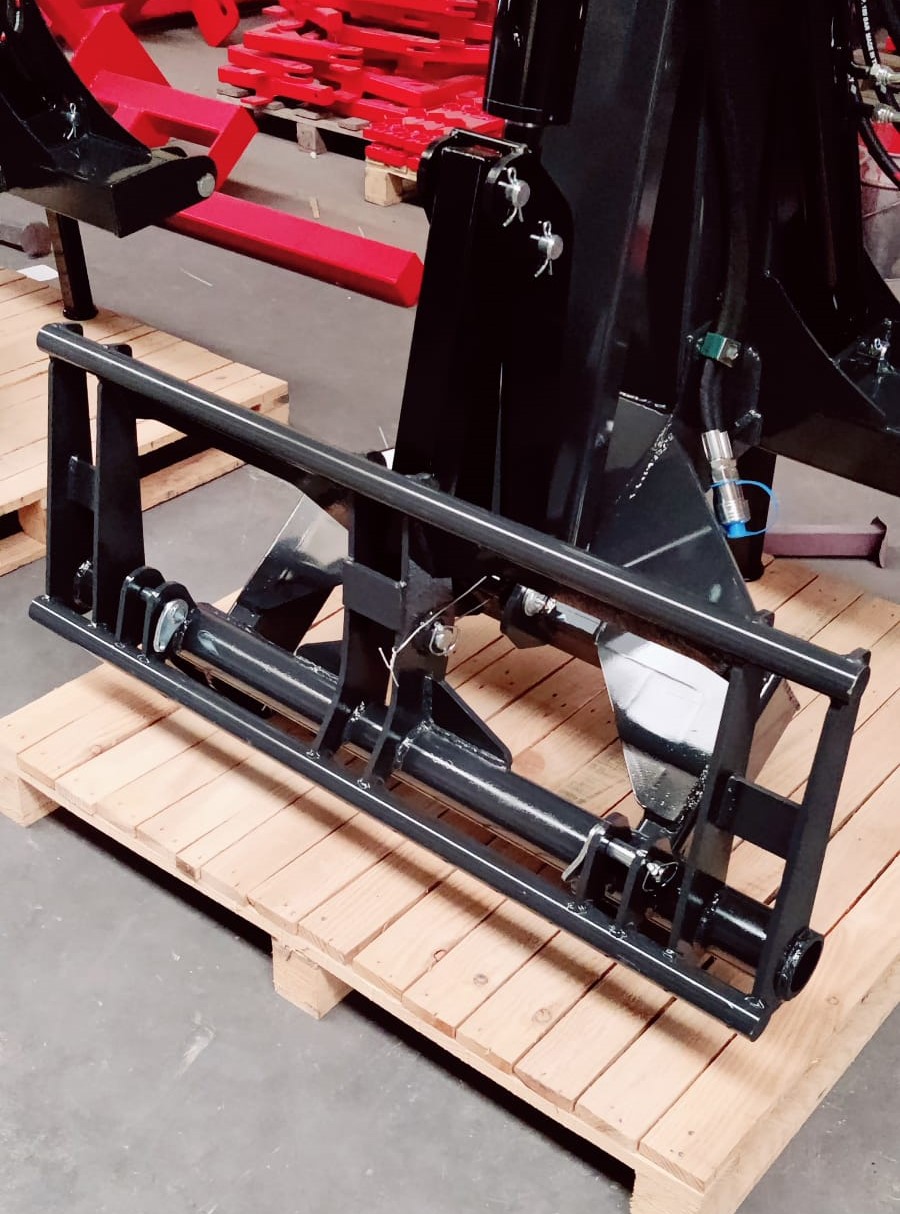

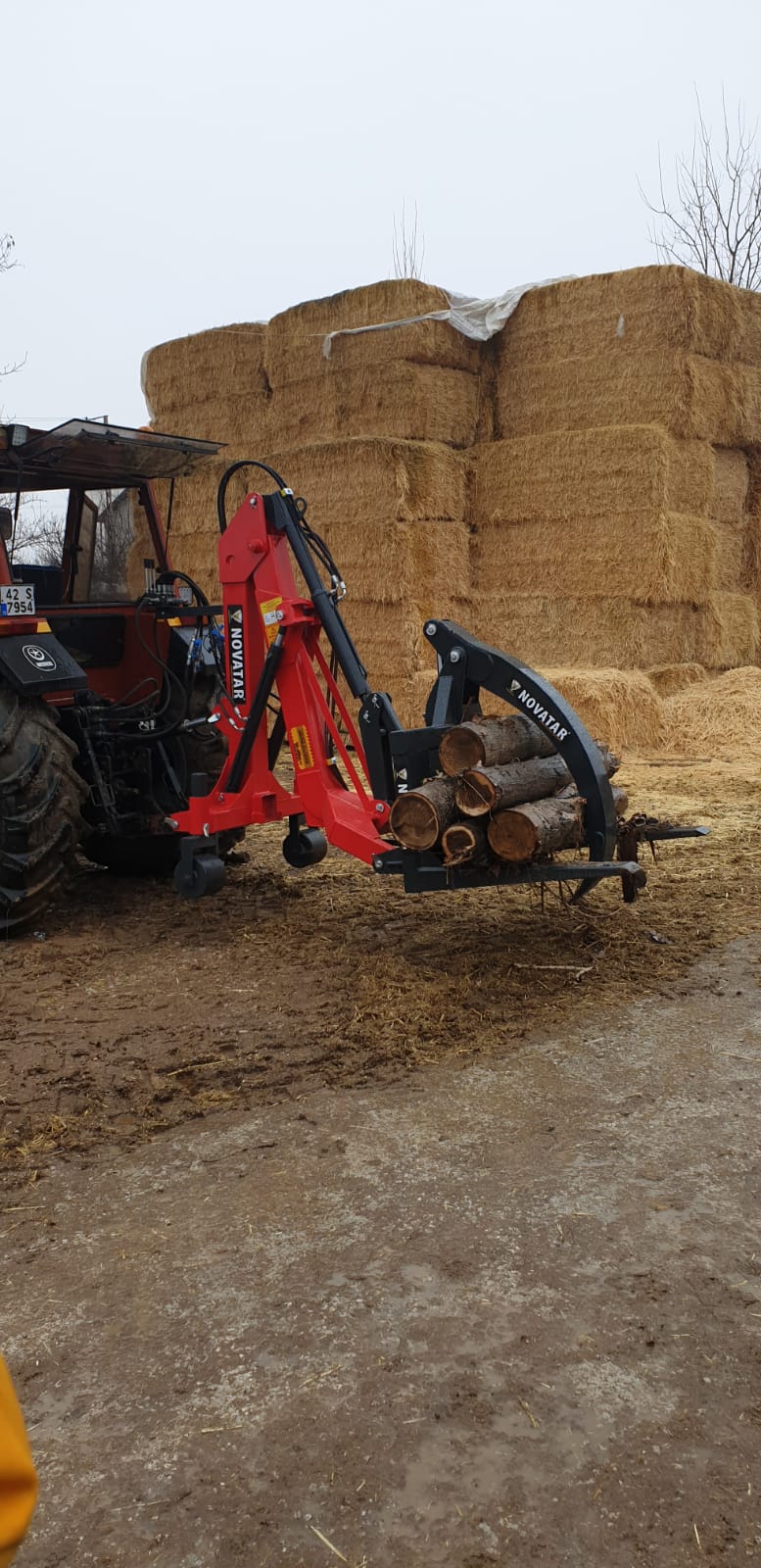

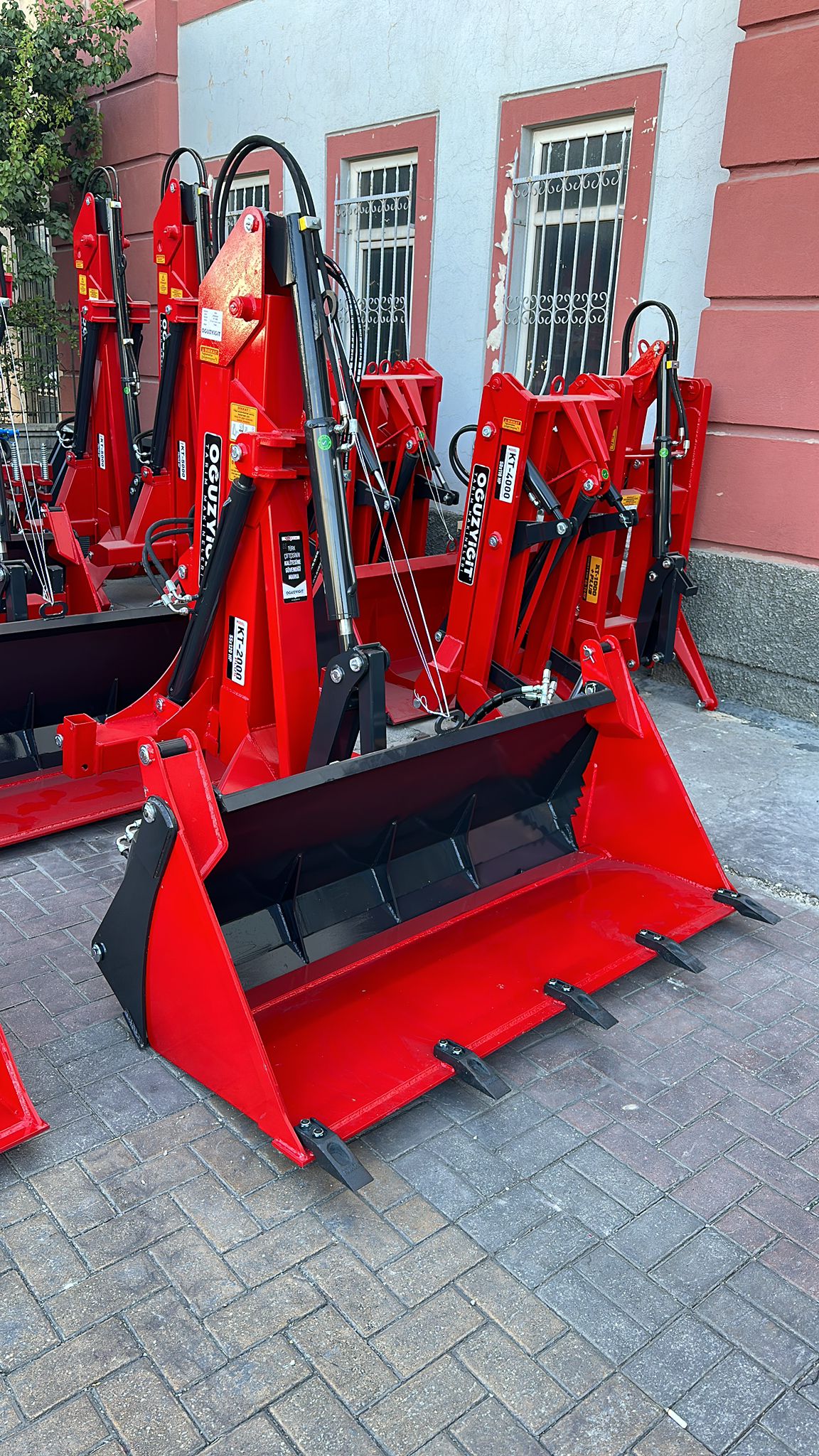

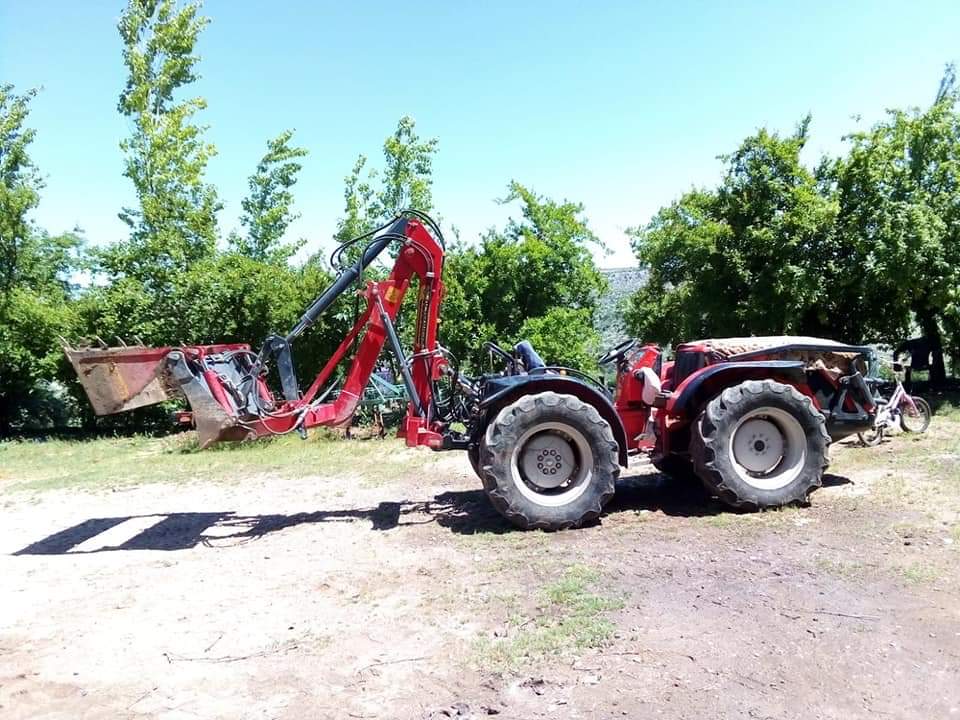

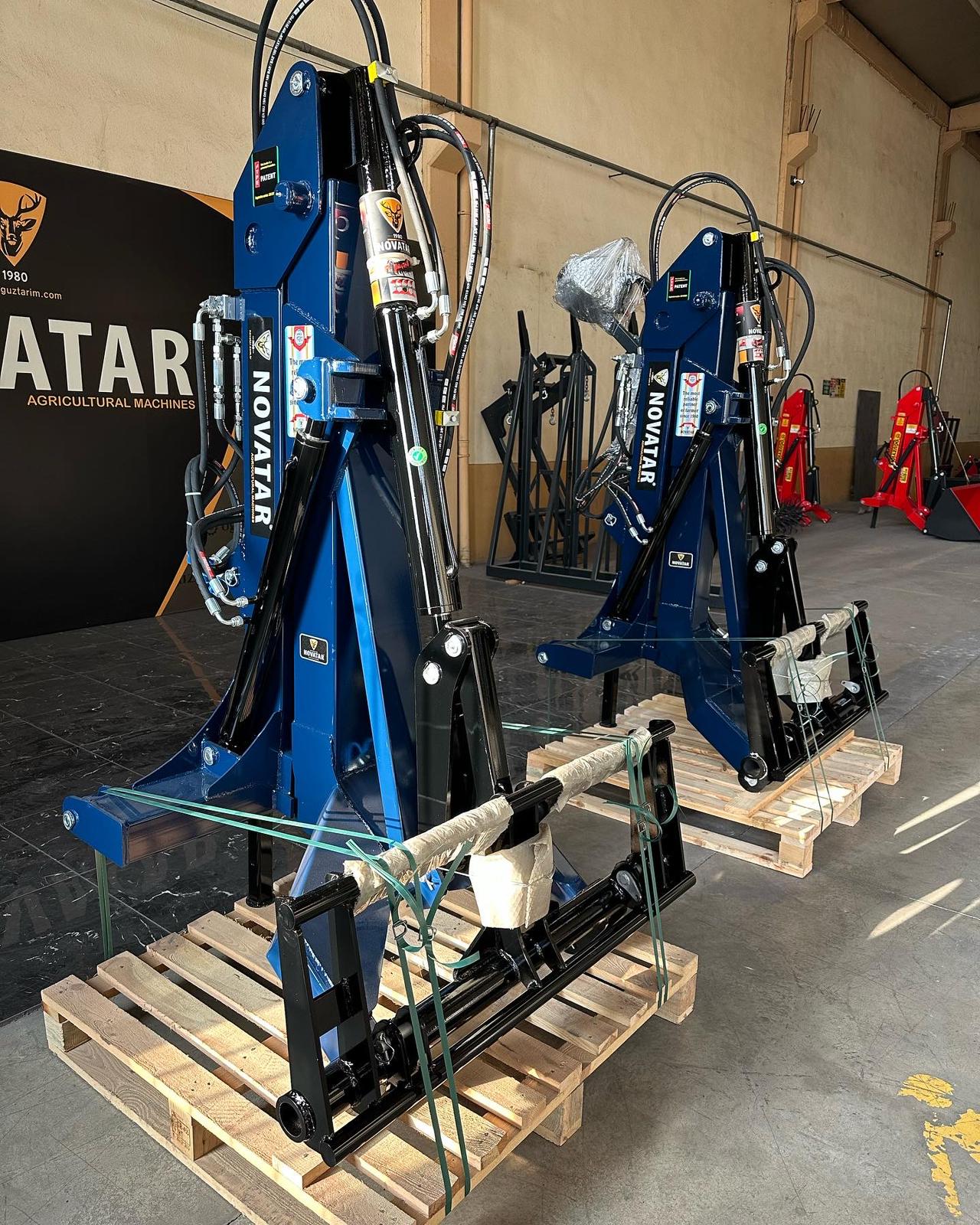

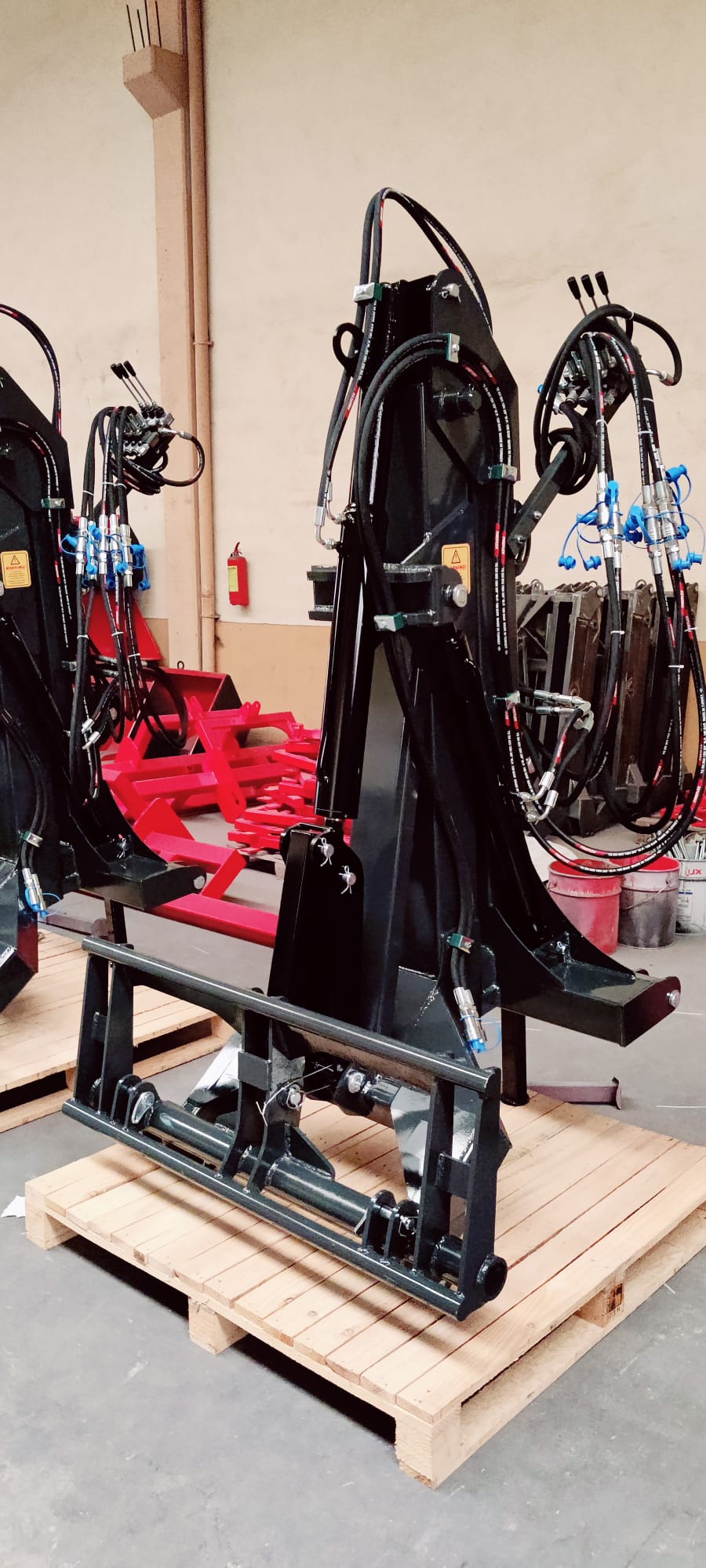

Quick Coupling or aka Euro linkage is a connection frame that helps you to connect the loading attachment to the loader. You can save your time thanks to quick coupling and easily can attach silage bale, bale forks or buckets to the loader.

We have many dealers around Europe for KT2000. Click WhatsApp Icon or send us an email to become a Novatar Dealer.

NOTE: ONLY NOVATAR MACHINERY HAS A MANUFACTURING LICENSE FOR KT-2000 REAR LOADER / HECKLADER. ALL RIGHT RESERVED BY NOVATAR MACHINERY.

KT-2000 REAR LOADER / HECKLADER UNIT DIMENSIONS
DISCHARGING HEIGT (with bucket) MM 3000
DISCHARGING HEIGT (with grabber) MM 3500
MIN. REQUIRED HP (with bucket) HP 55
MIN. REQUIRED HP (with 500 kg bale) HP 55
MIN. REQUIRED HP (with 1000 kg bale) HP 65
REQUIRED HYDRAULIC INLET (with bucket) QTY 4
REQUIRED HYDRAULIC INLET (with grabber) QTY 6
LOADING CAPACITY KG 1000
BUCKET WIDTH MM 1200 – 1500 – 1750
LOADER HEIGHT MM 2150
LOADER WIDTH MM 1000
LOADER WEIGHT MM 390
