Rubber Type Disc Harrow – GRAND CYRUS SERIES

Rubber Type Disc Harrow – GRAND CYRUS SERIES

Novatar Rubber-Type Disc Harrow is a soil tillage machine used to till the soil where crops are to be planted. Disc-Harrow is also used to make surface tillage, seedbed preparation, mixing organic and inorganic fertilizers to the soil, breaking the hard surface on the soil of the field, chop up unwanted weeds or crop remainders.

The disc harrow’s main purpose is to scarify and crumble the soil. It has a wide range of uses it can be employed for mixing lime, mineral fertilizers, manure, or stubble with the soil. The disc harrow scarifies, crumbles, and breaks apart the soil layer.

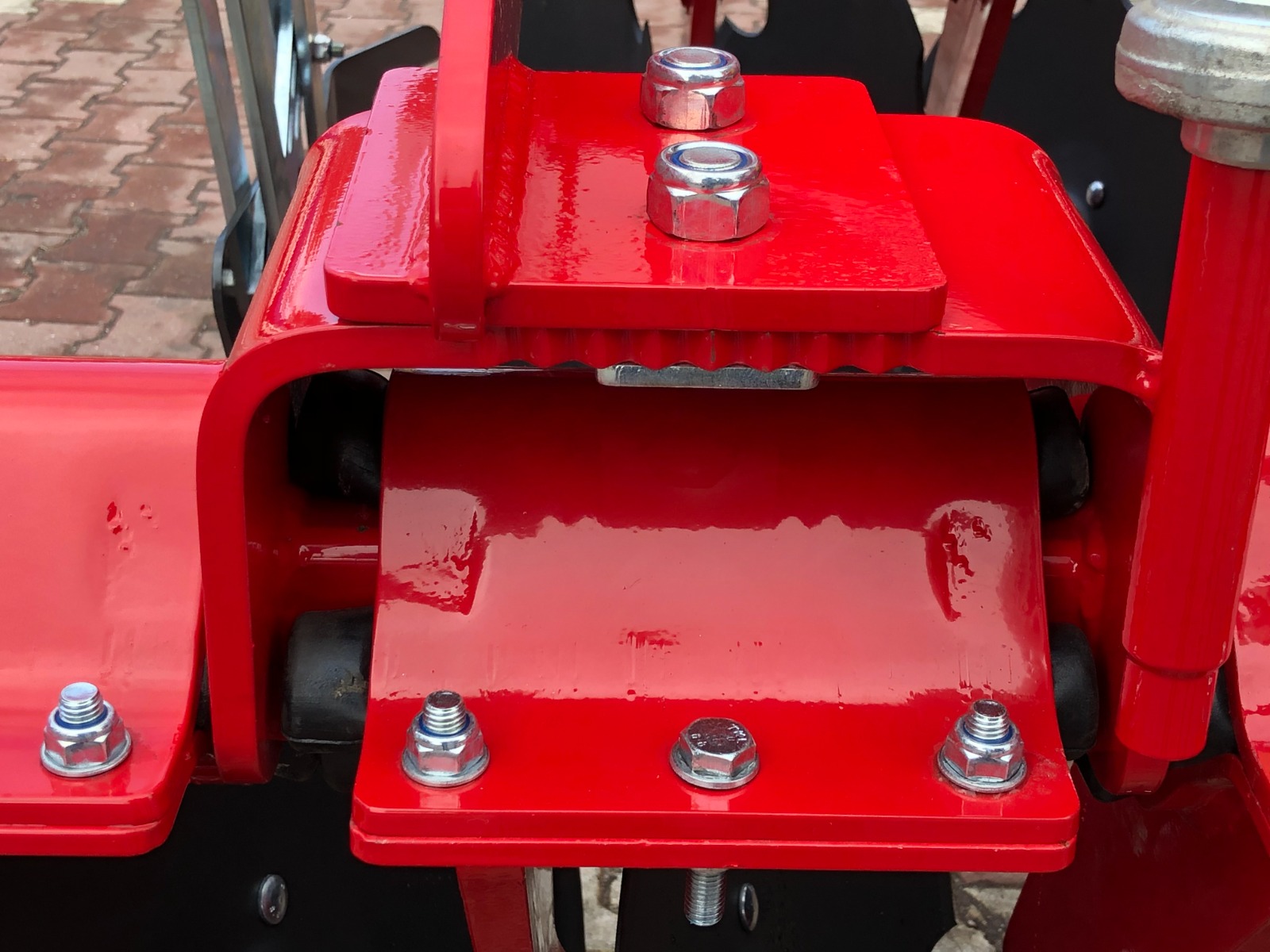

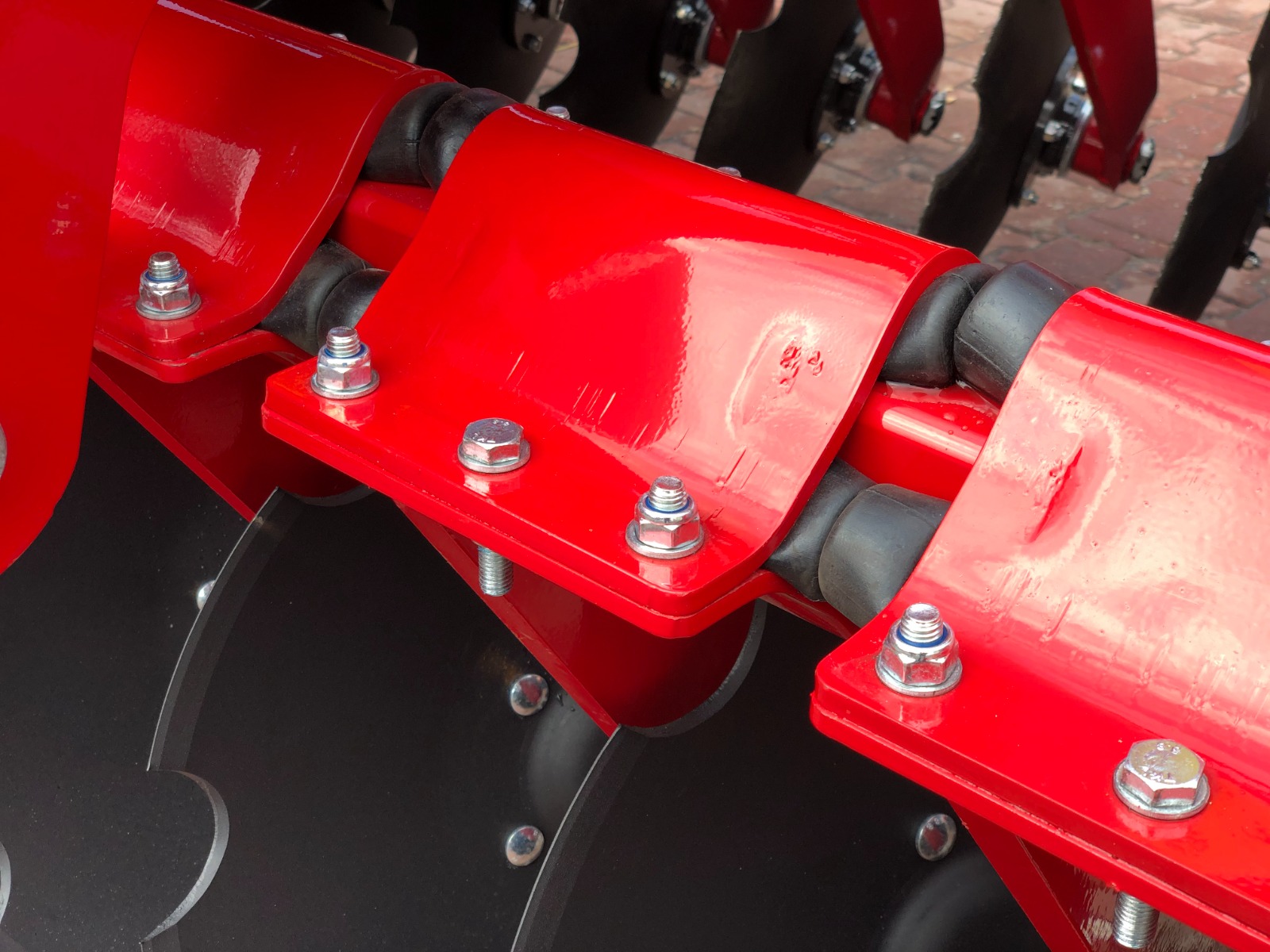

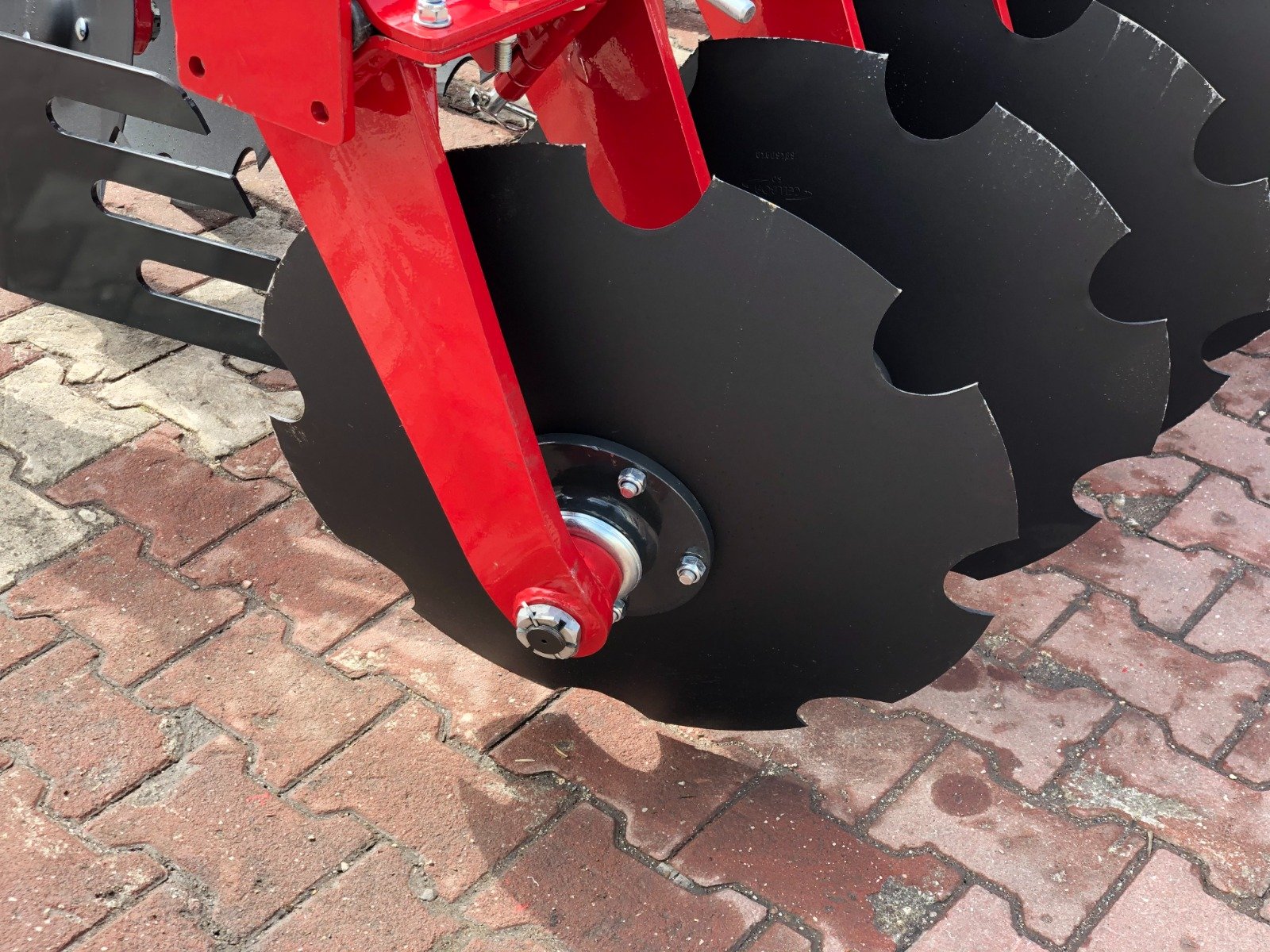

The Novatar discs are made out of high-quality steel. The working parts of the Disc-harrow are equipped with protective rubber, which increases their durability and makes them less susceptible to damage, especially when working on stony soils.

Category:
CYRUS-GRAND DISC DIMATER
(CM)
DISTANCE BETWEEN DISC
(CM)
WORKING WIDTH
(CM)
WORKING DEPTH
(MM)
REQUIRED HP
(HP)
CYRUS-16 DISC 51/57/62 25 200 250 50-60
CYRUS-18 DISC 51/57/62 25 225 250 60-70
CYRUS-20 DISC 51/57/62 25 250 250 70-80
CYRUS-22 DISC 51/57/62 25 275 250 80-90
CYRUS-24 DISC 51/57/62 25 300 250 90-100
CYRUS-26 DISC 51/57/62 25 325 250 100-110
CYRUS-28 DISC 51/57/62 25 350 250 110-130
CYRUS-32 DISC 51/57/62 400 250 120-150
