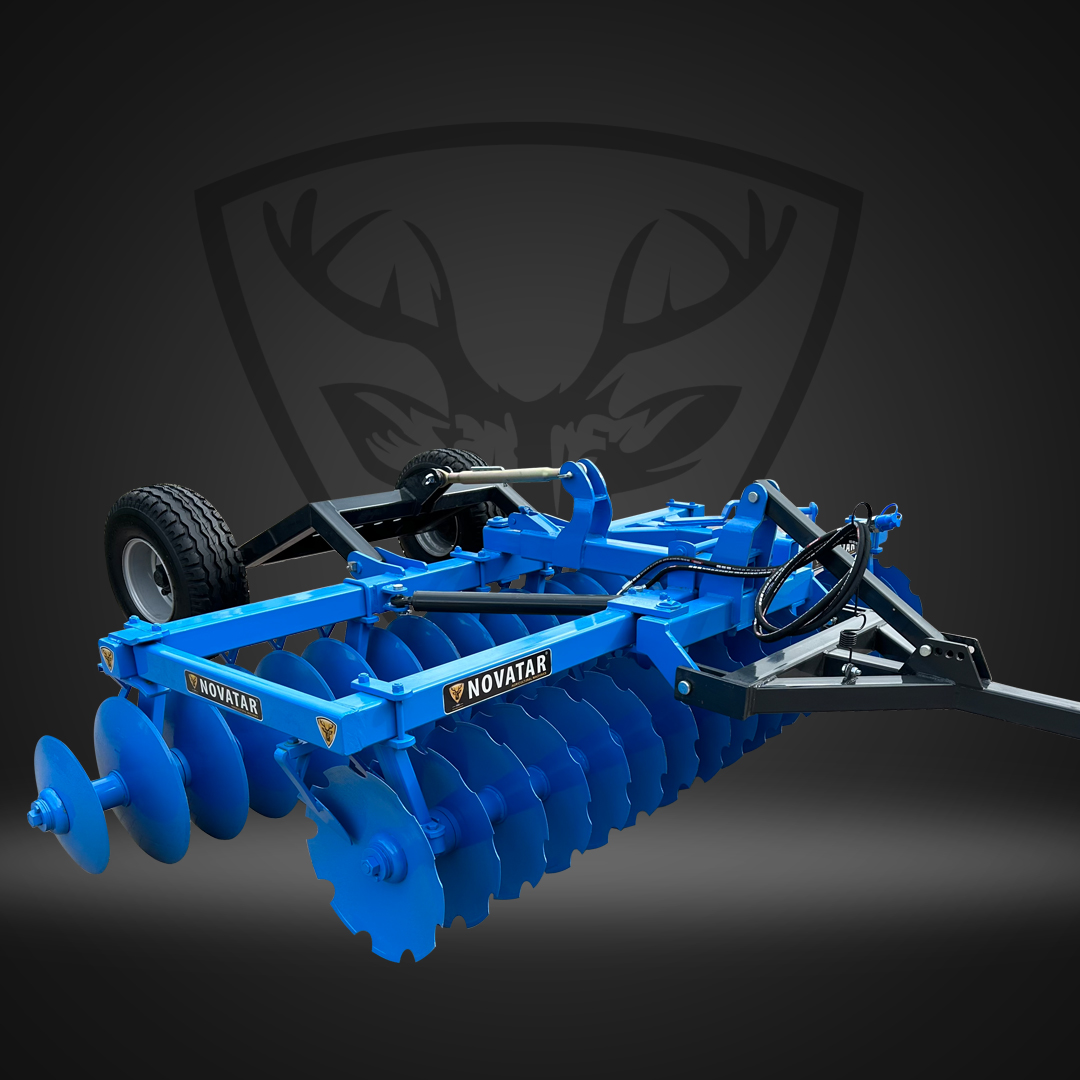

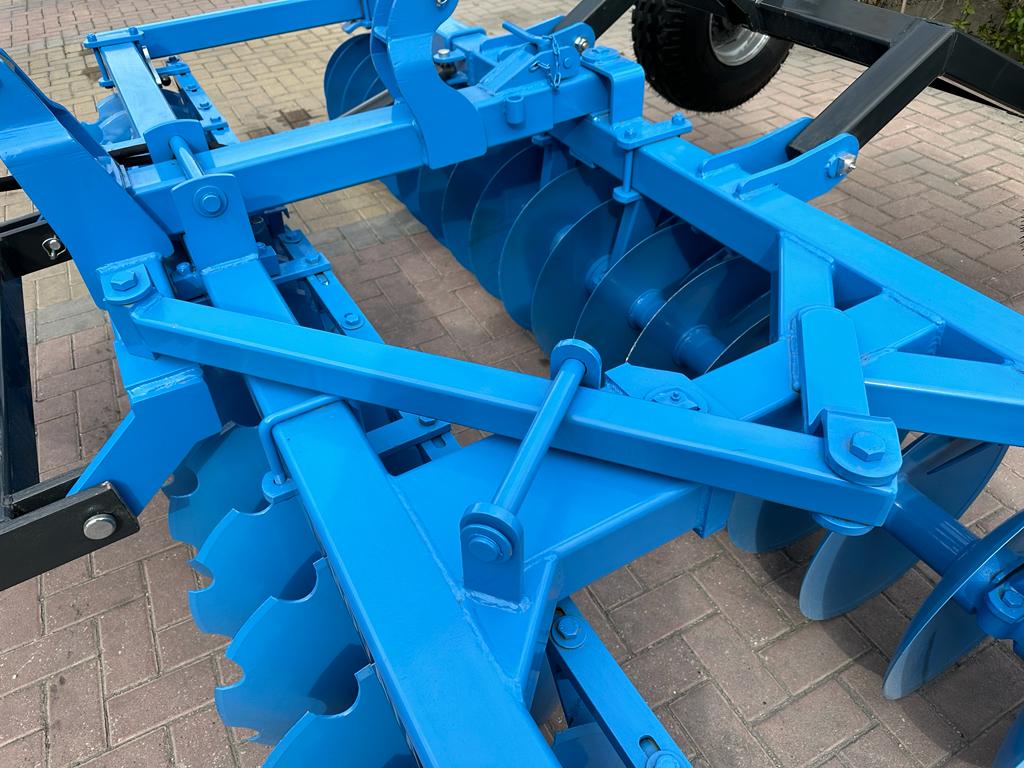

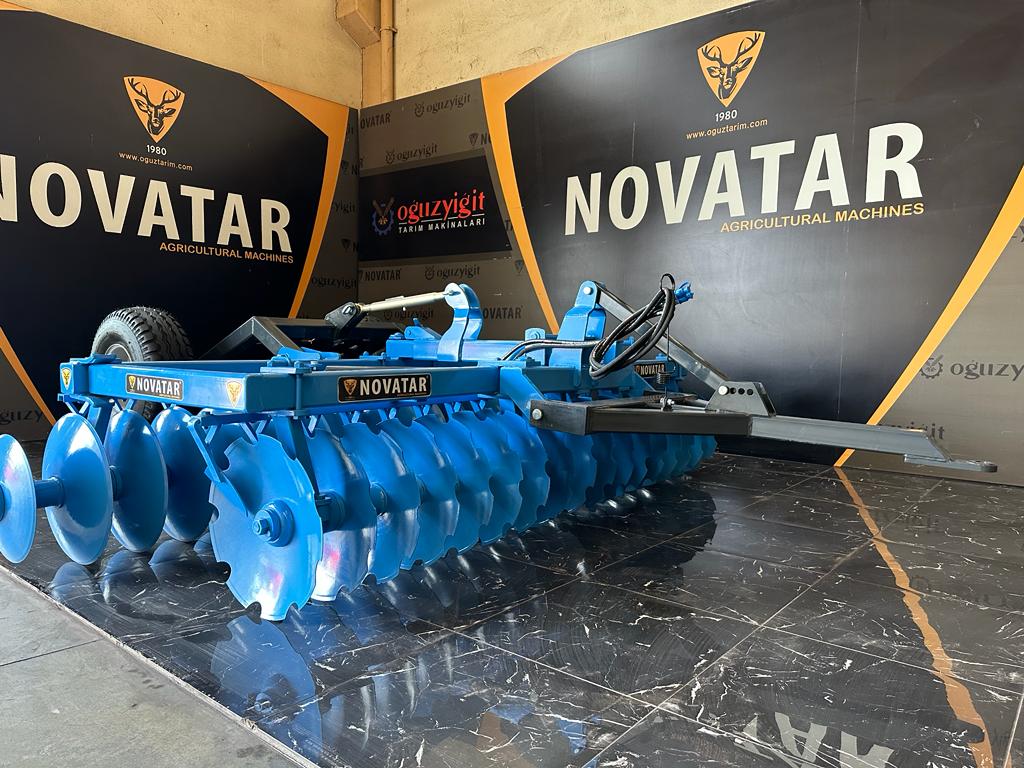

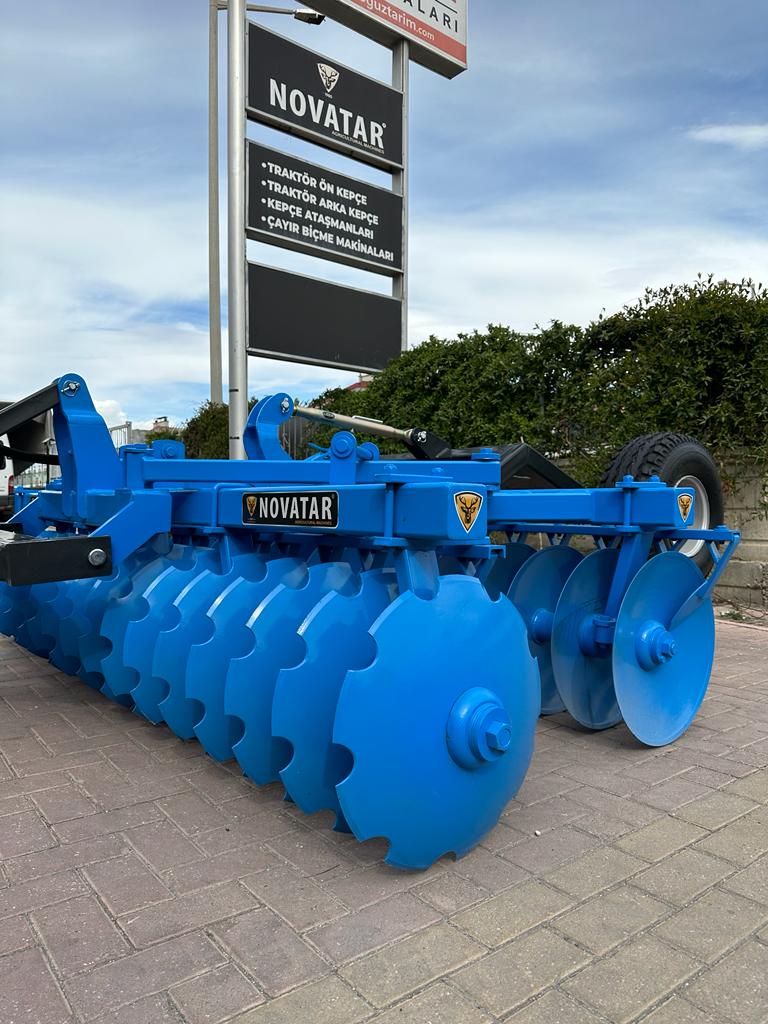

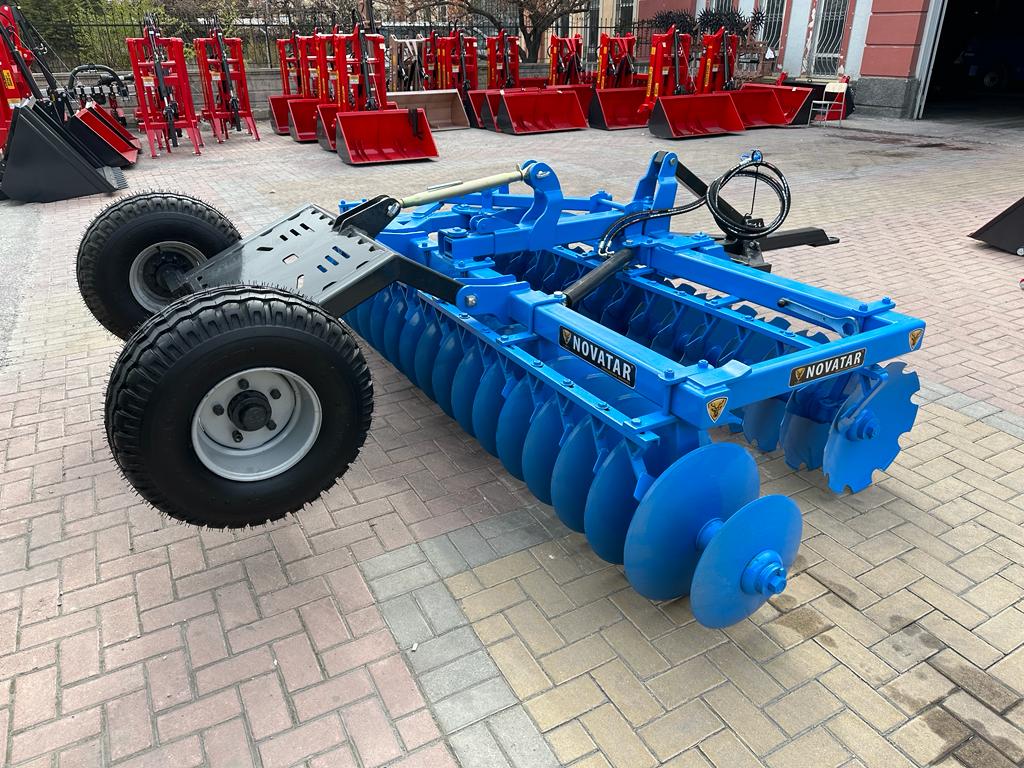

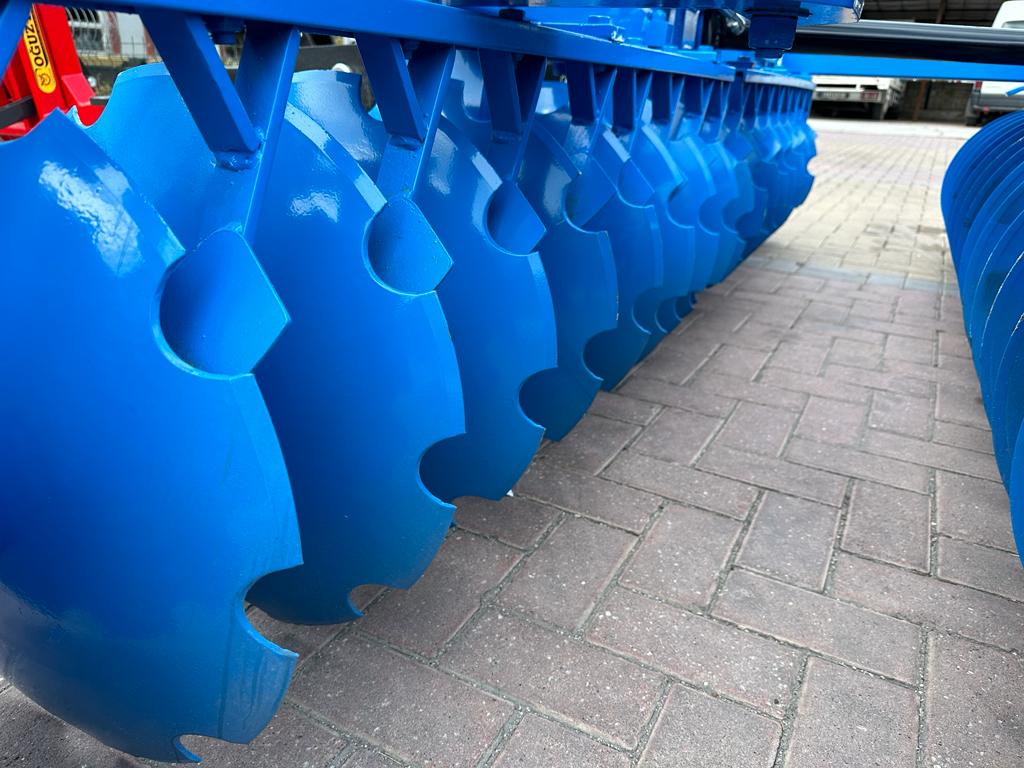

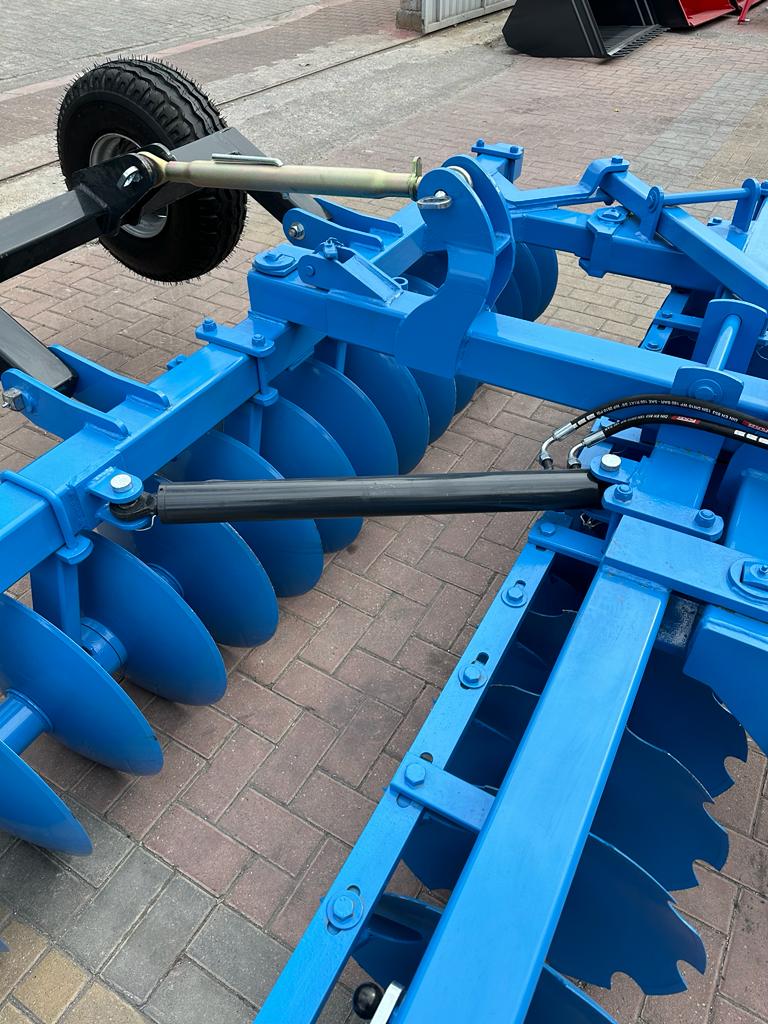

Off-Set Disc Harrow

The Off-Set Disc Harrow is an agricultural machine that is used to till the soil where crops are to be planted.

Heavy-Duty Off-Set Disc-Harrow is suitable to harrow heavy soil land or large area of land with stubble and to crush large pieces of soil after plowing into small pieces.

The heavy type offset discharrow designed by NOVATAR with durability and high efficiency for farmers who are looking for the best disc harrow for their hard soil lands!

The main feature off this disc harrow is it can prepare smooth soil before planting seeds with low hp tractors. You can prepare very good soil conditions even if you don’t have such a high hp tractor because off-set disc harrow is working efficiently with even low hp tractors.

OFF-SET DISC HARROW	DISC DIAMETER 46 CM	DISC DIAMETER 51 CM	DISC SPACE	WORKING WIDTH (CM)	WEIGHT 46Q	WEIGHT 51Q	BEARING BED QUANTITY	REQUIRED POWER (HP)
HD-20	46	51	180	180	480	520	6	45-50
HD-24	46	51	180	216	570	615	8	50-60
HD-28	46	51	180	252	670	725	8	60-70
HD-32	46	51	180	288	760	830	8	70-80
HD-36	46	51	180	325	860	935	12	80-90
HD-40	46	51	180	360	950	1040	12	90-100
HD-48	46	51	180	432	1150	1250	12	100-120

OFF-SET DISC HARROW	DISC DIAMETER 46 CM	DISC DIAMETER 51 CM	DISC SPACE	WORKING WIDTH (CM)	WEIGHT 46Q	WEIGHT 51Q	BEARING BED QUANTITY	REQUIRED POWER (HP)
HD-20	56	61	220	220	1100	1150	6	70-90
HD-24	56	61	220	234	1300	1400	8	90-110
HD-28	56	61	220	308	1550	1600	8	110-130
HD-32	56	61	220	352	1750	1850	8	130-160
