DUSTIN DISC TECHNICAL SPECIFICATIONS |
UNIT | 4 Row | 6 Row | 8 Row | |||||
Fertilizer | Without Fertilizer |
Fertilizer | Fertilizer | Fertilizer | Without Fertilizer |
||||
Width | mm | 2800 | 2800 | 4000 | 4000 | 5600 | 5600 | ||
Height | mm | 1600 | 1500 | 1600 | 1500 | 1600 | 1500 | ||
Length | mm | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | ||
Seed Tank Volume | lt | 4*35 | 4*35 | 6*35 | 6*35 | 8*35 | 8*35 | ||
Fertilizer Tank Volume | lt | 2*160 | – | 2*200 | – | 2*240 | none | ||
Disc Hole Diameter | mm | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | ||
Disc Number of Holes | pcs | Variable | Variable | Variable | Variable | Variable | Variable | ||
Distance Between Rows | cm | 45-70-75 | 45-70-75 | 45-70-75 | 45-70-75 | 45-70-75 | 45-70-75 | ||
Distance Row | cm | 1-177 | 1-177 | 1-177 | 1-177 | 1-177 | 1-177 | ||
Working Speed | km/h | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | ||
Required Power | hp | 70-80 | 70-80 | 90-110 | 90-110 | 110-130 | 110-130 | ||
Weight | kg | 1100 | 900 | 1400 | 1200 | 1650 | 1450 |

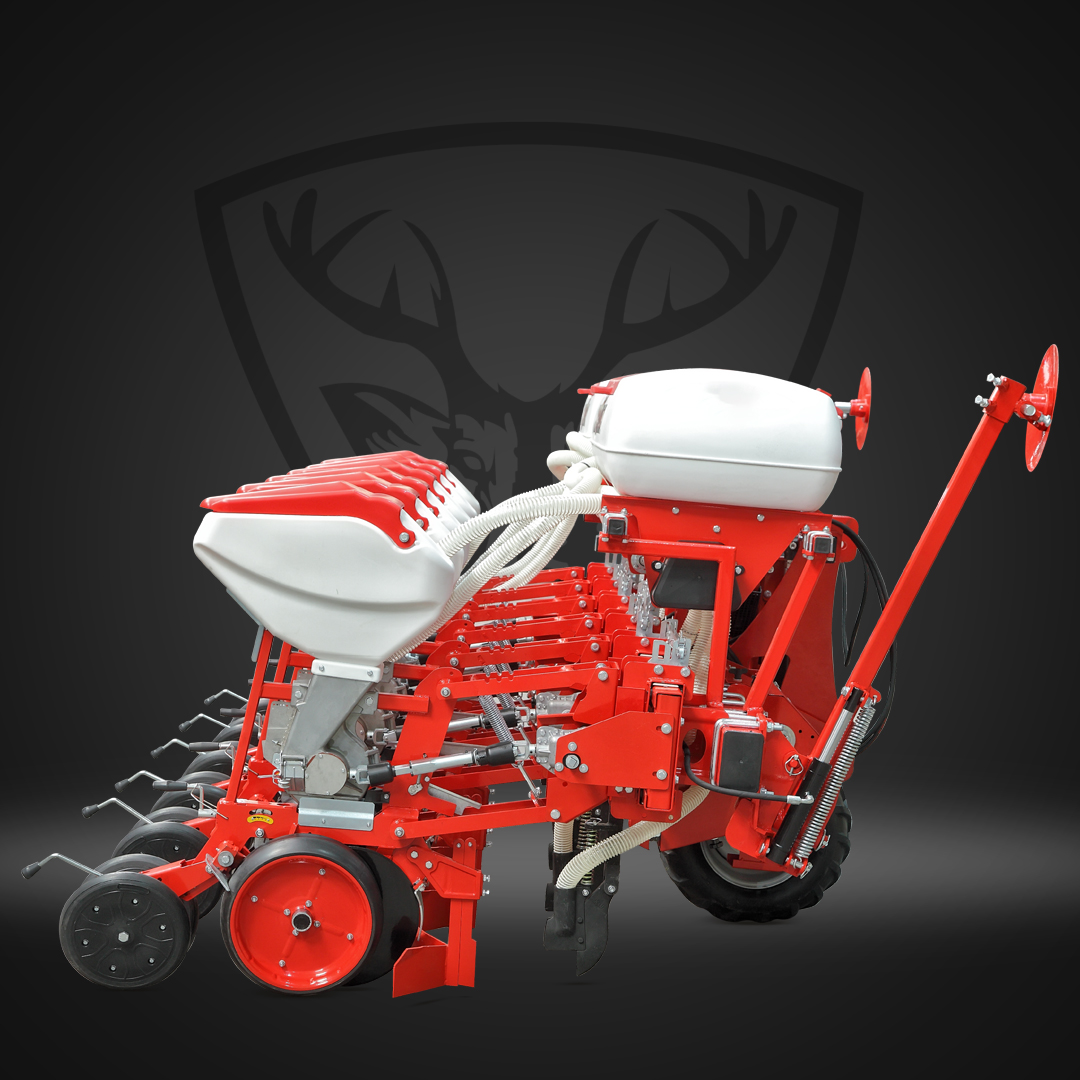

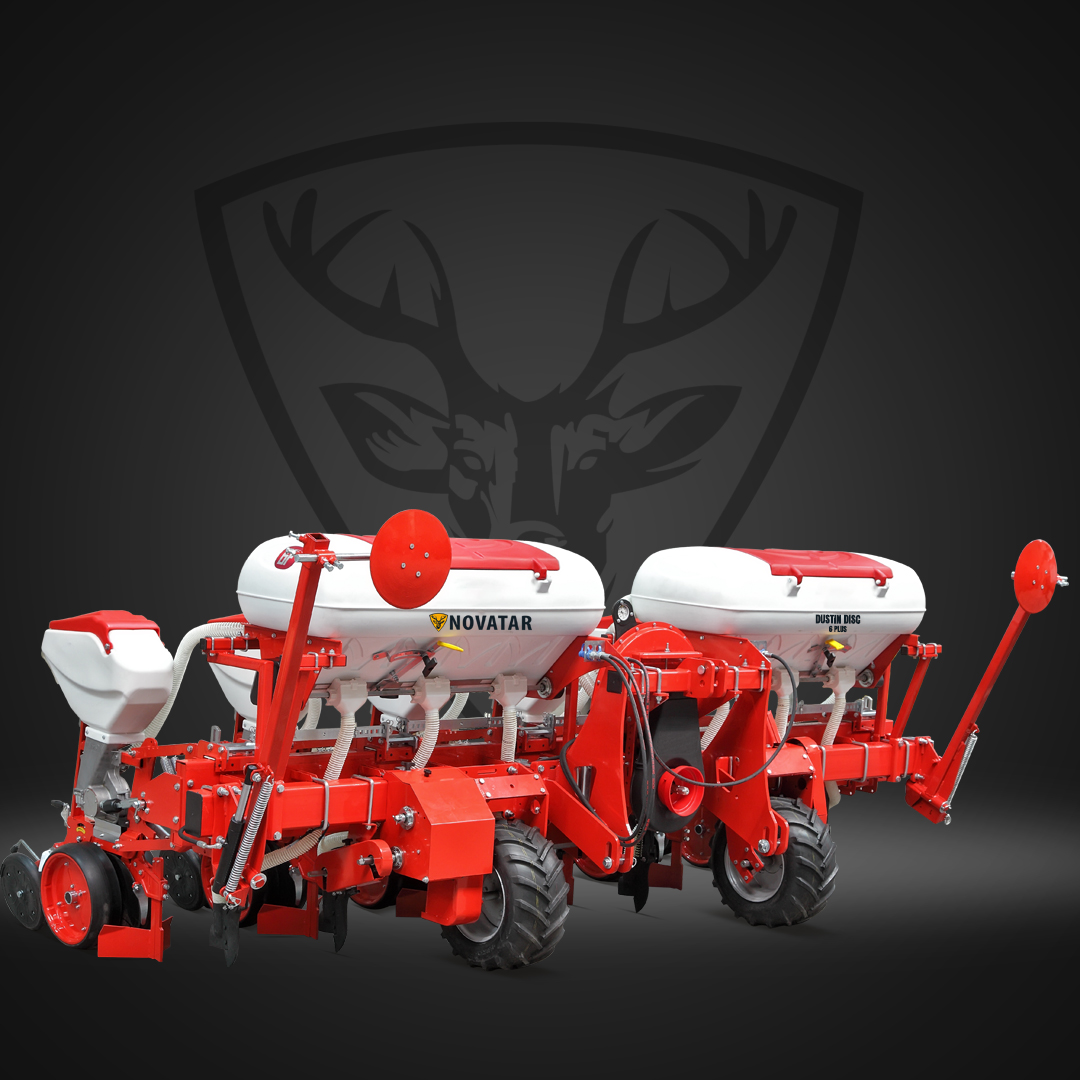

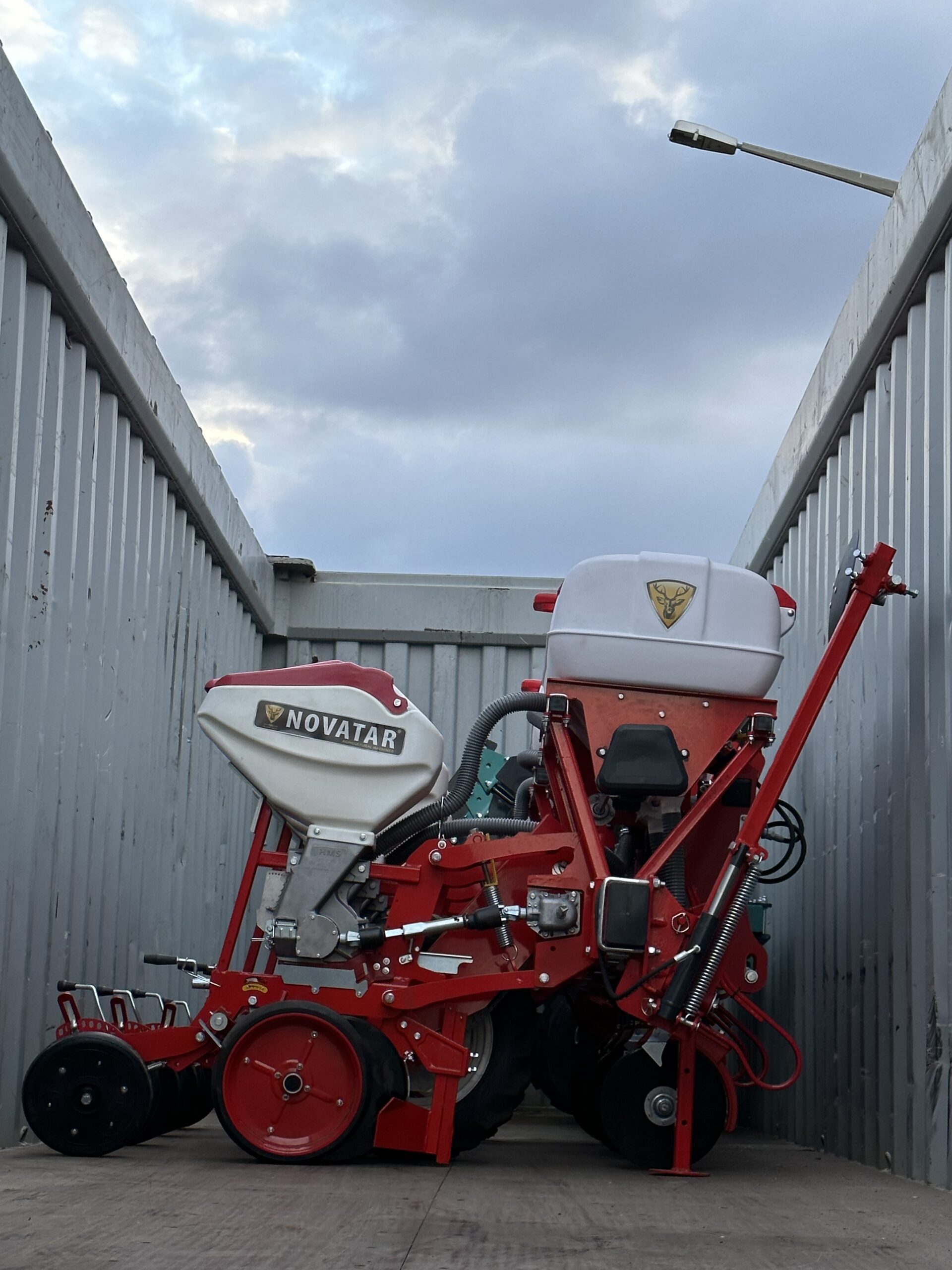

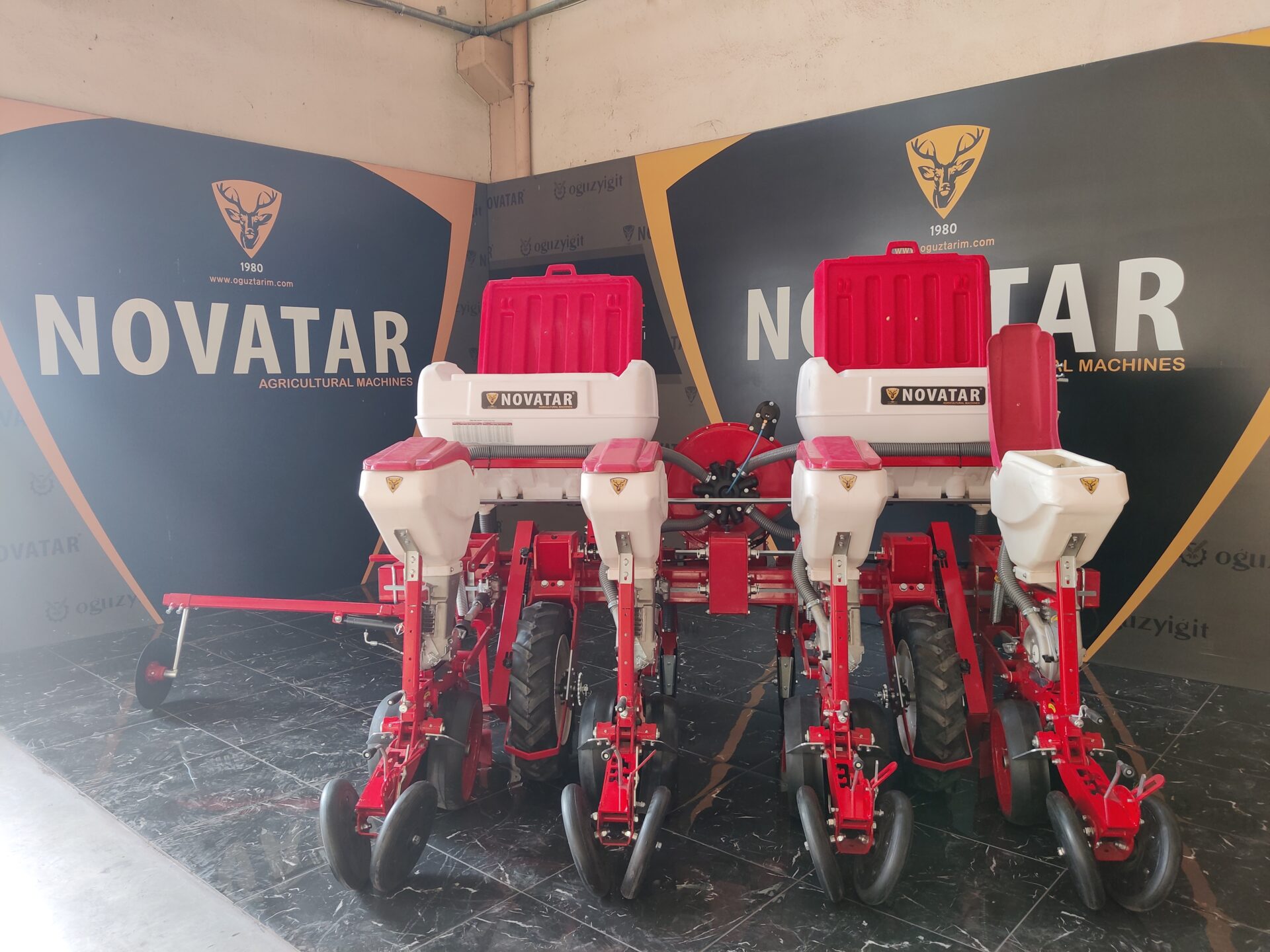

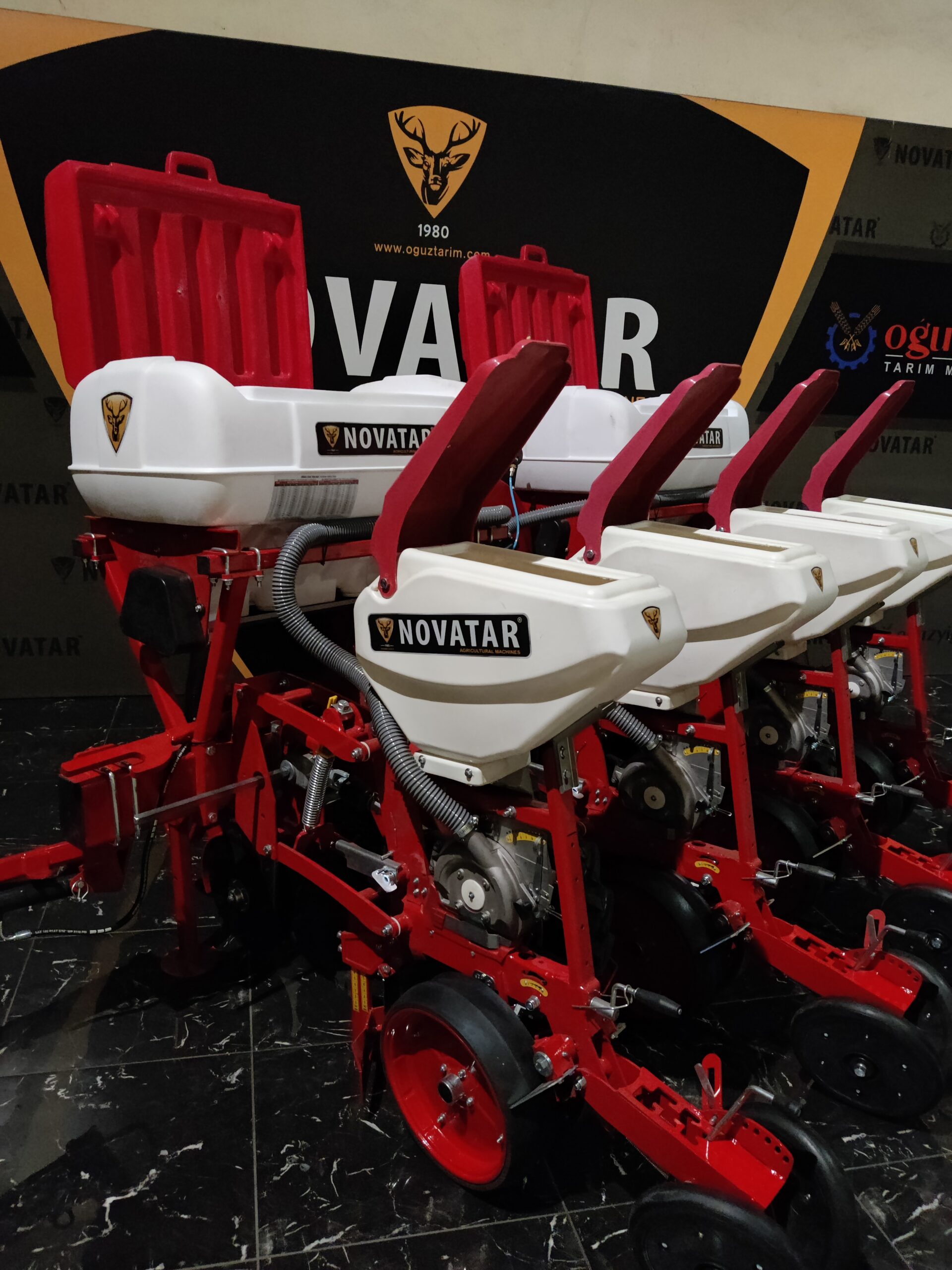

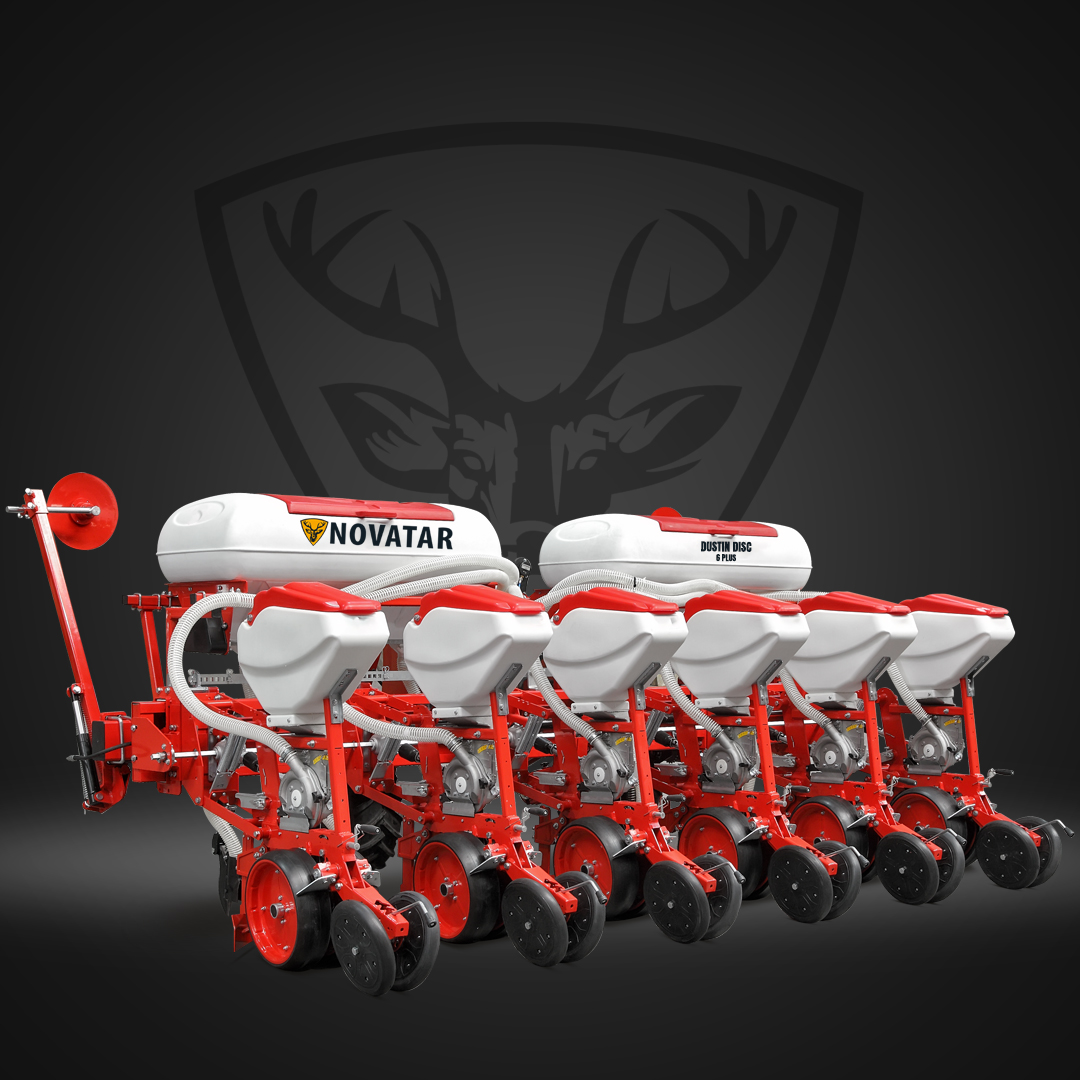

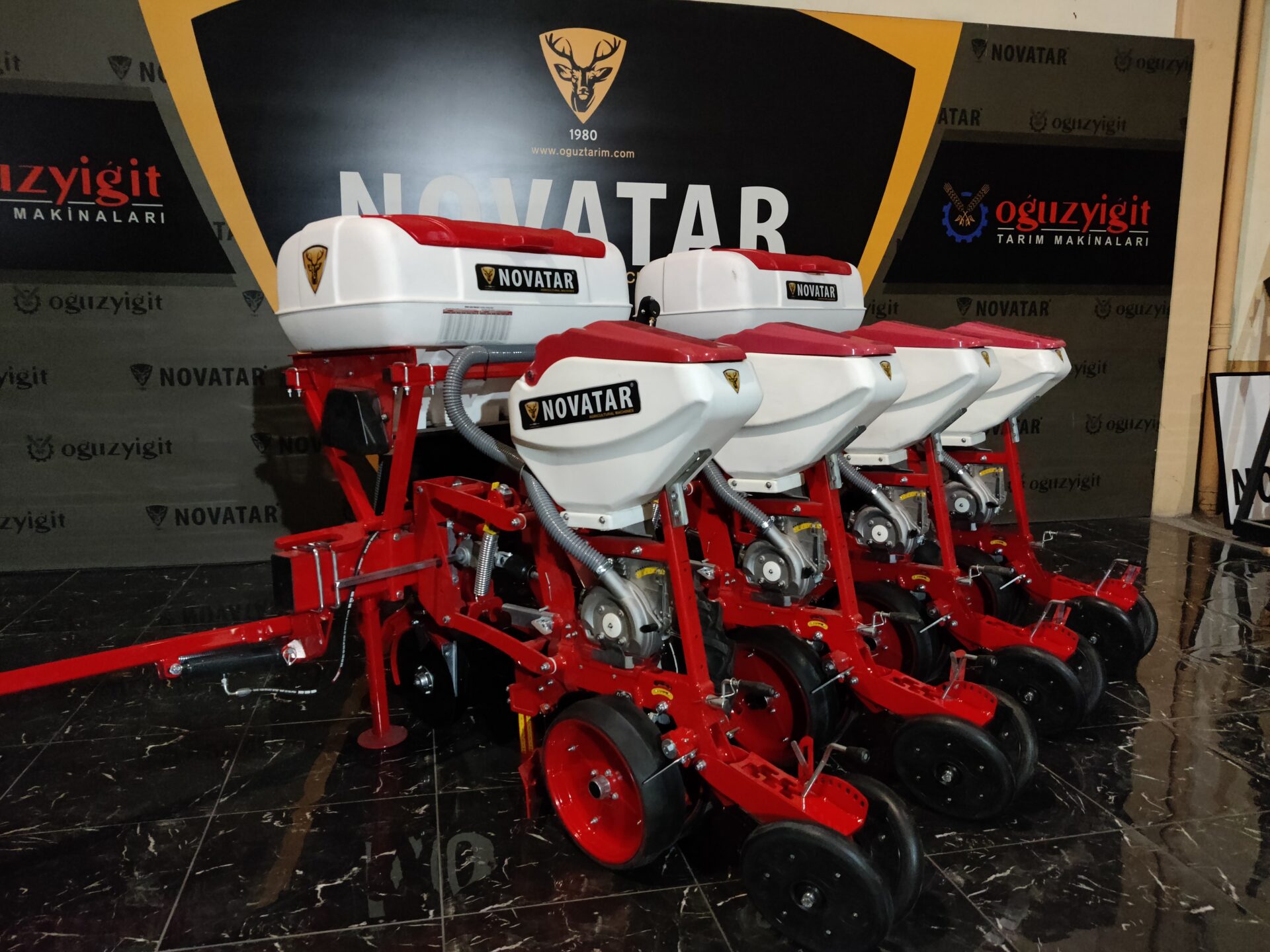

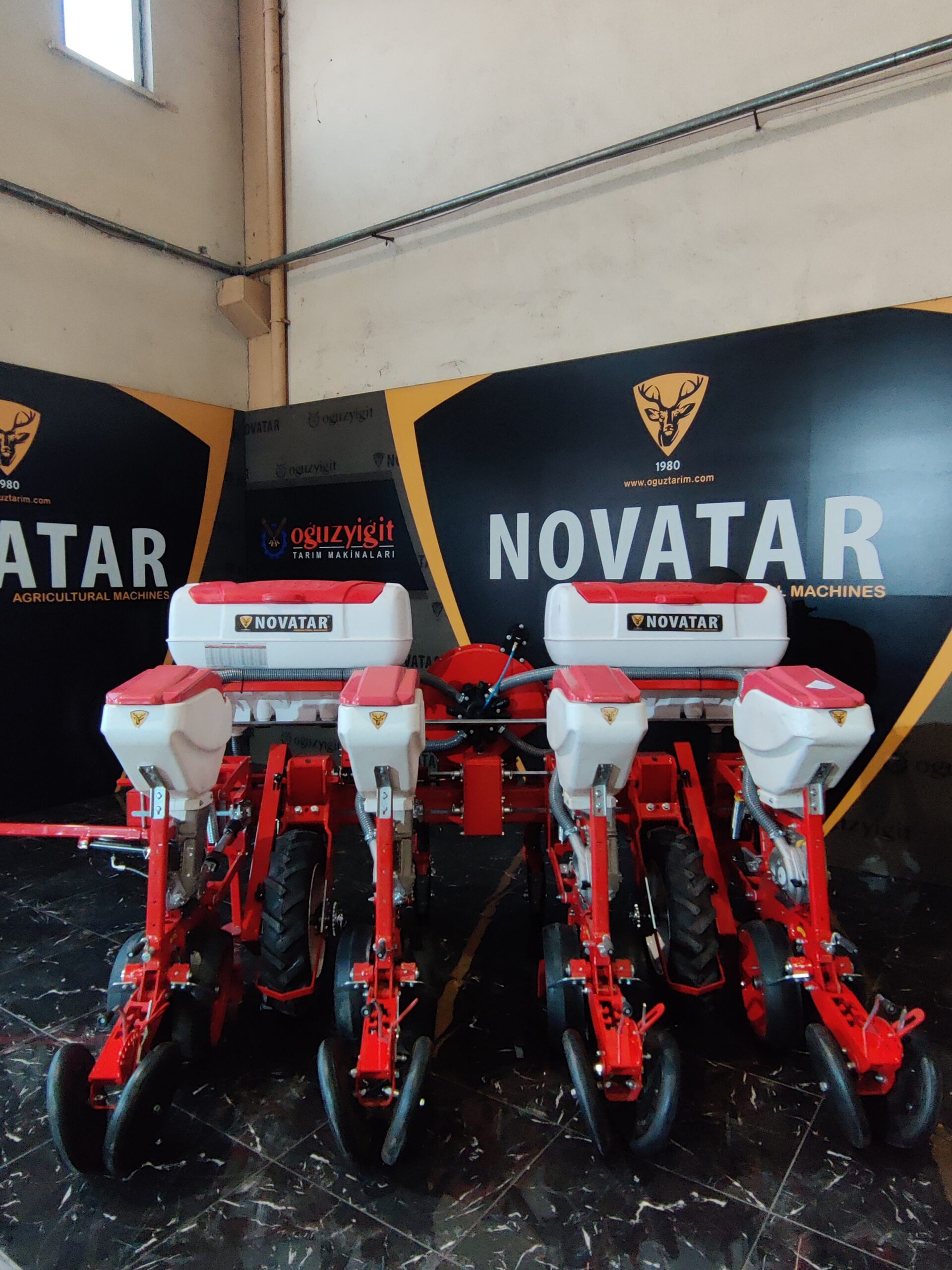

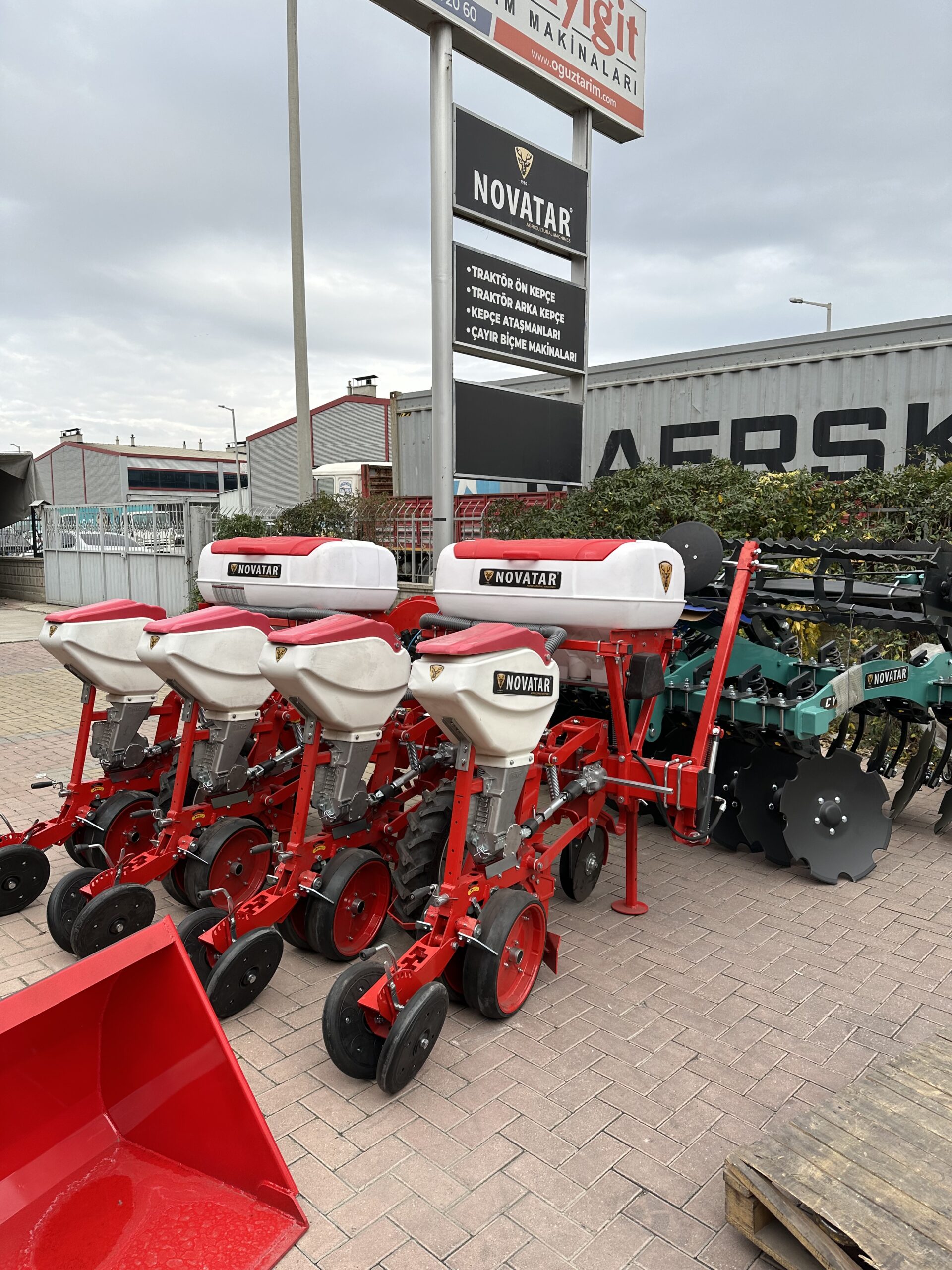

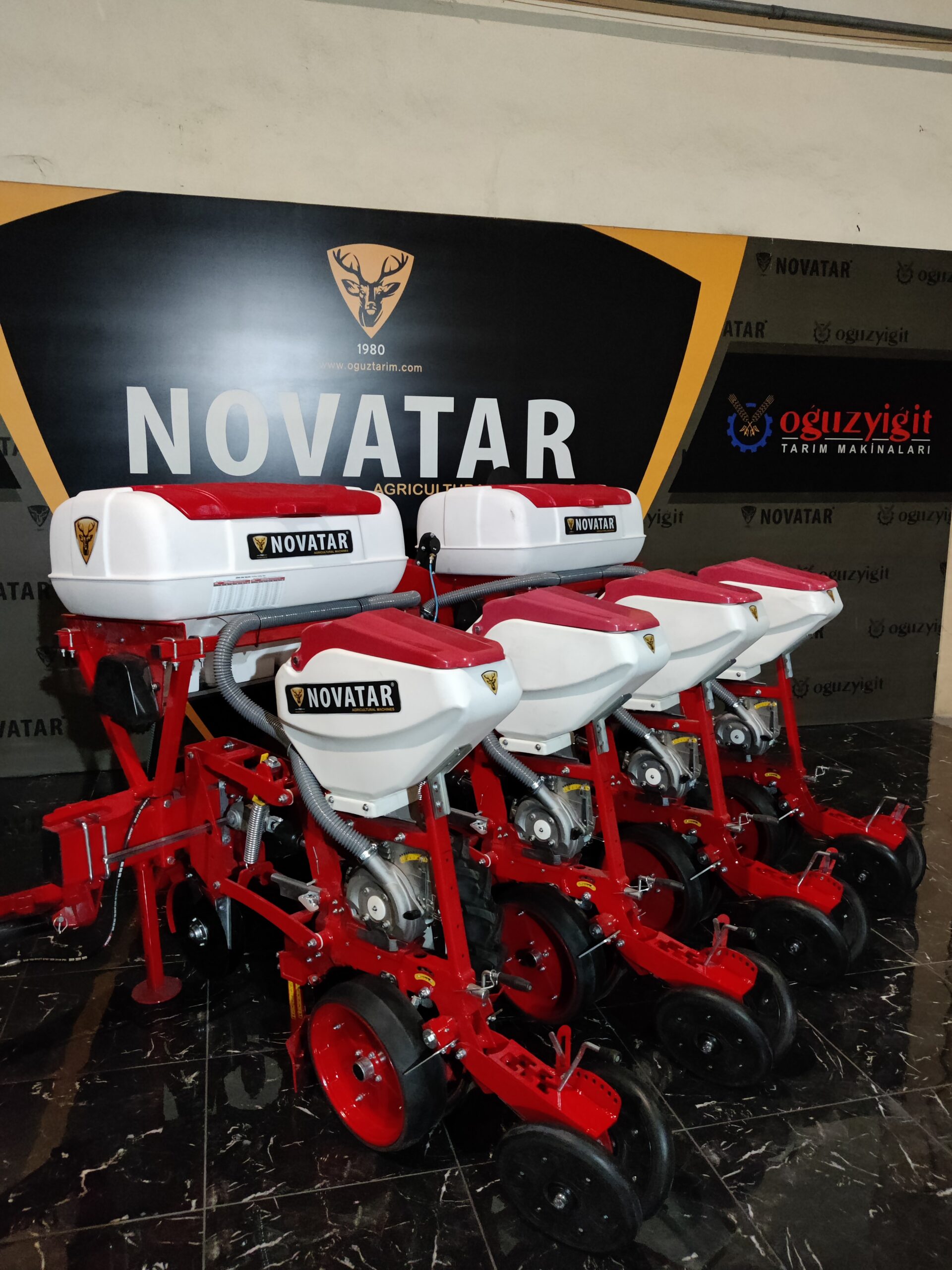

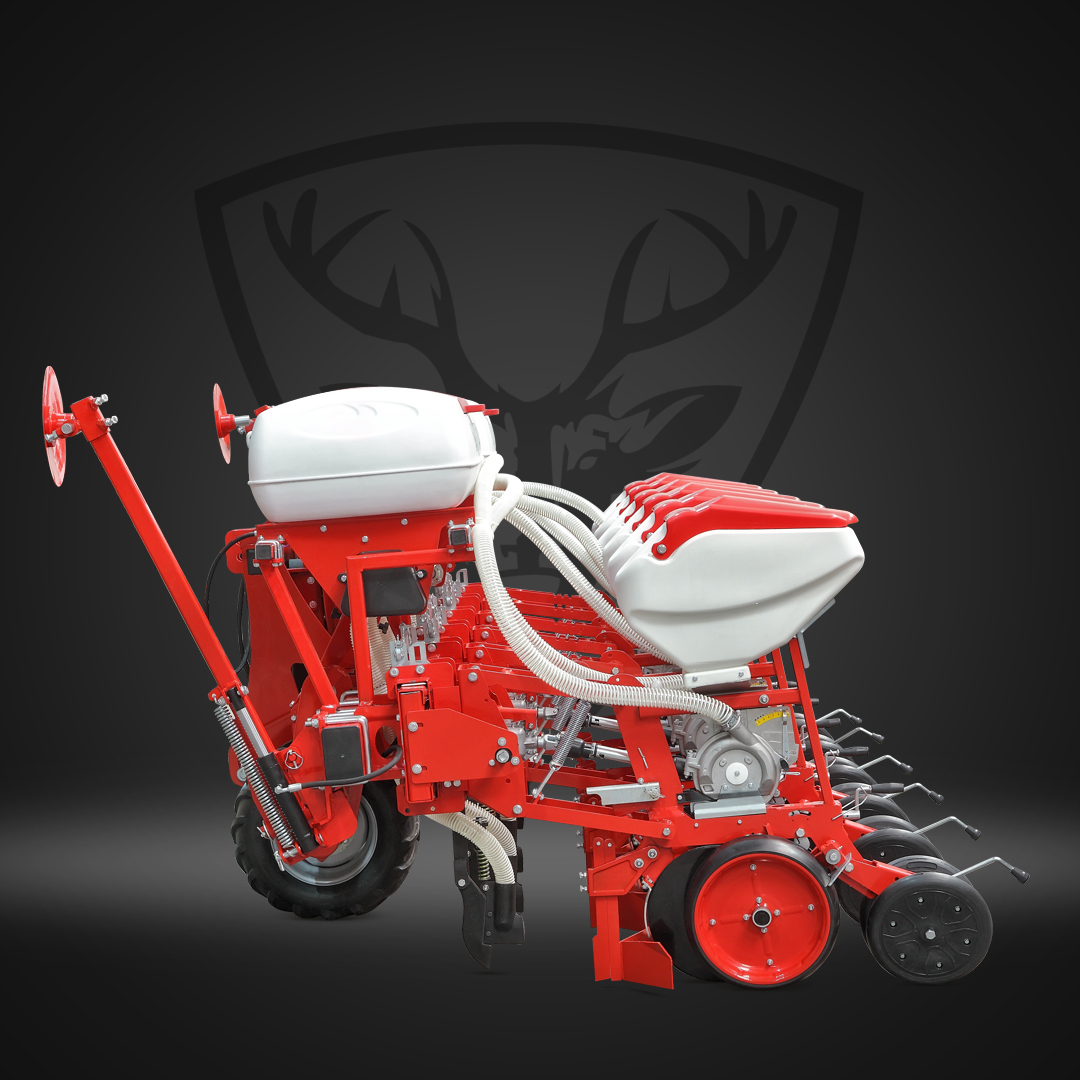

Pneumatic Seed Planter Machine – DUSTIN DISC SERIES
Pneumatic Seed Planter Machine – DUSTIN DISC SERIES
The last generation Dustin Disc Pneumatic Planters allow the seed to be sowed precisely in the desired sowing range and intra-row distance.
Dustin Disc Type Planter has been manufactured with fertilizer full telescopic adjustable chassis. Row distance might be 45, 50, 55, 60, 65, 70 with 4-6-8 rows optionally.

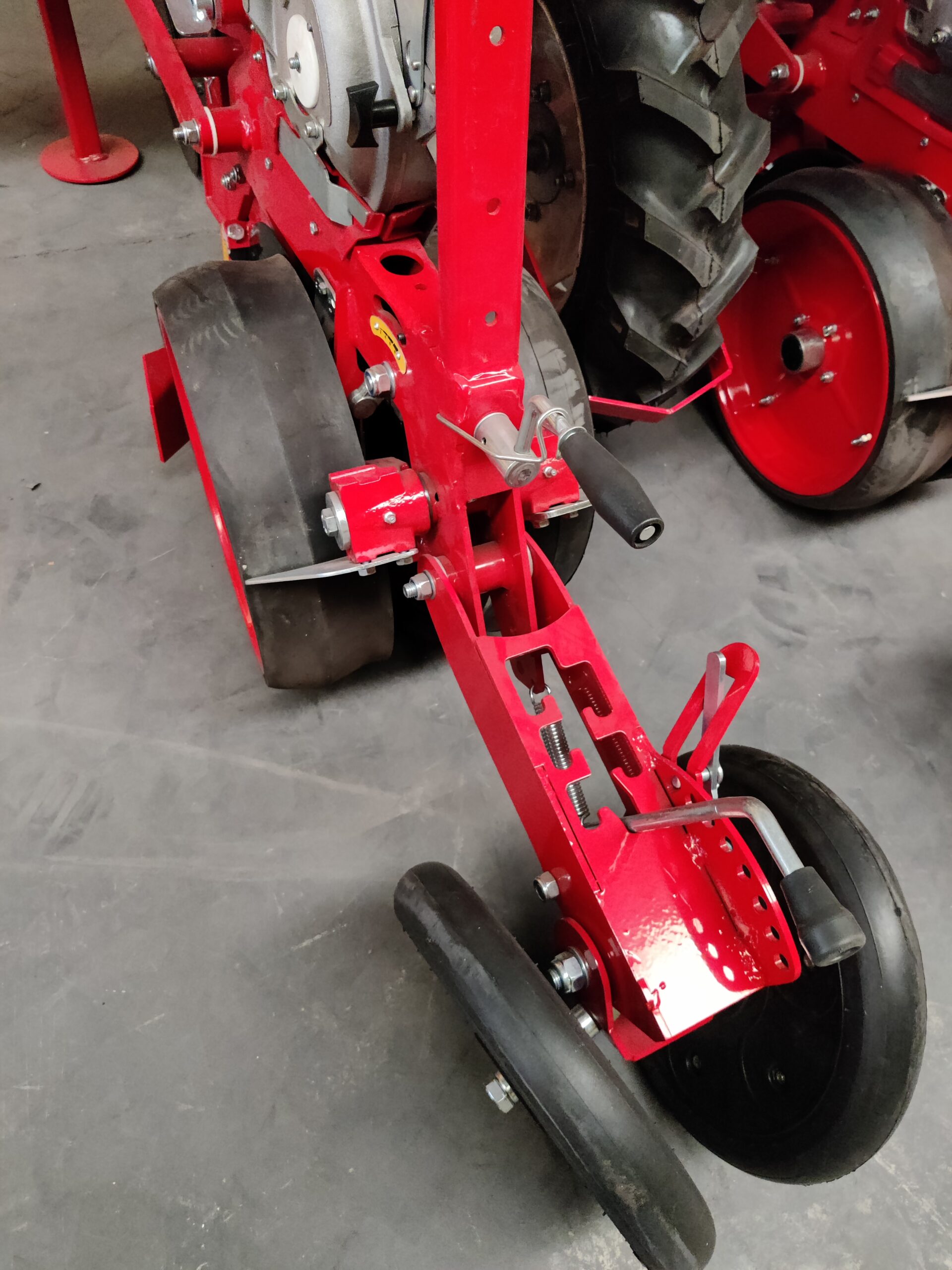

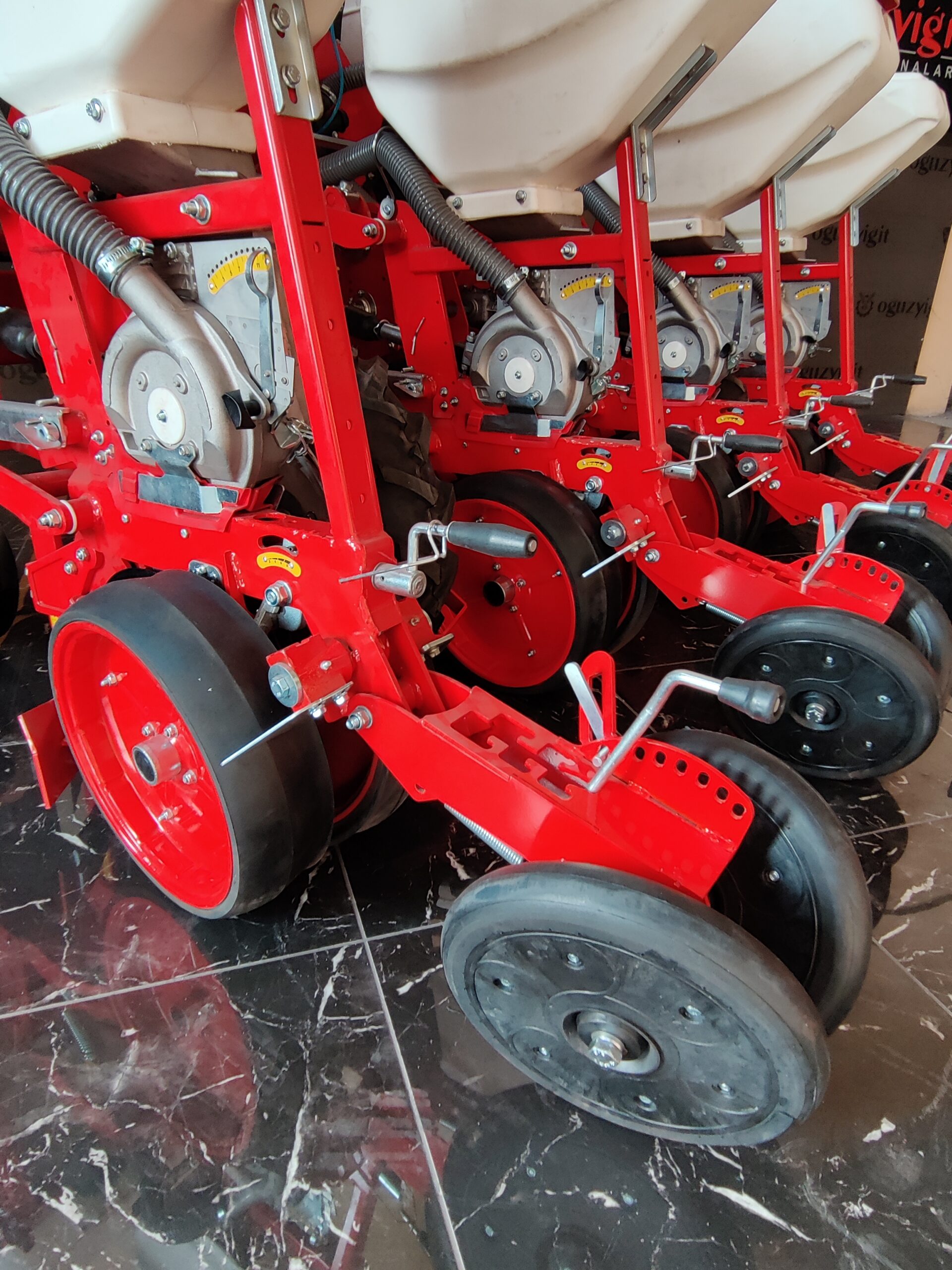

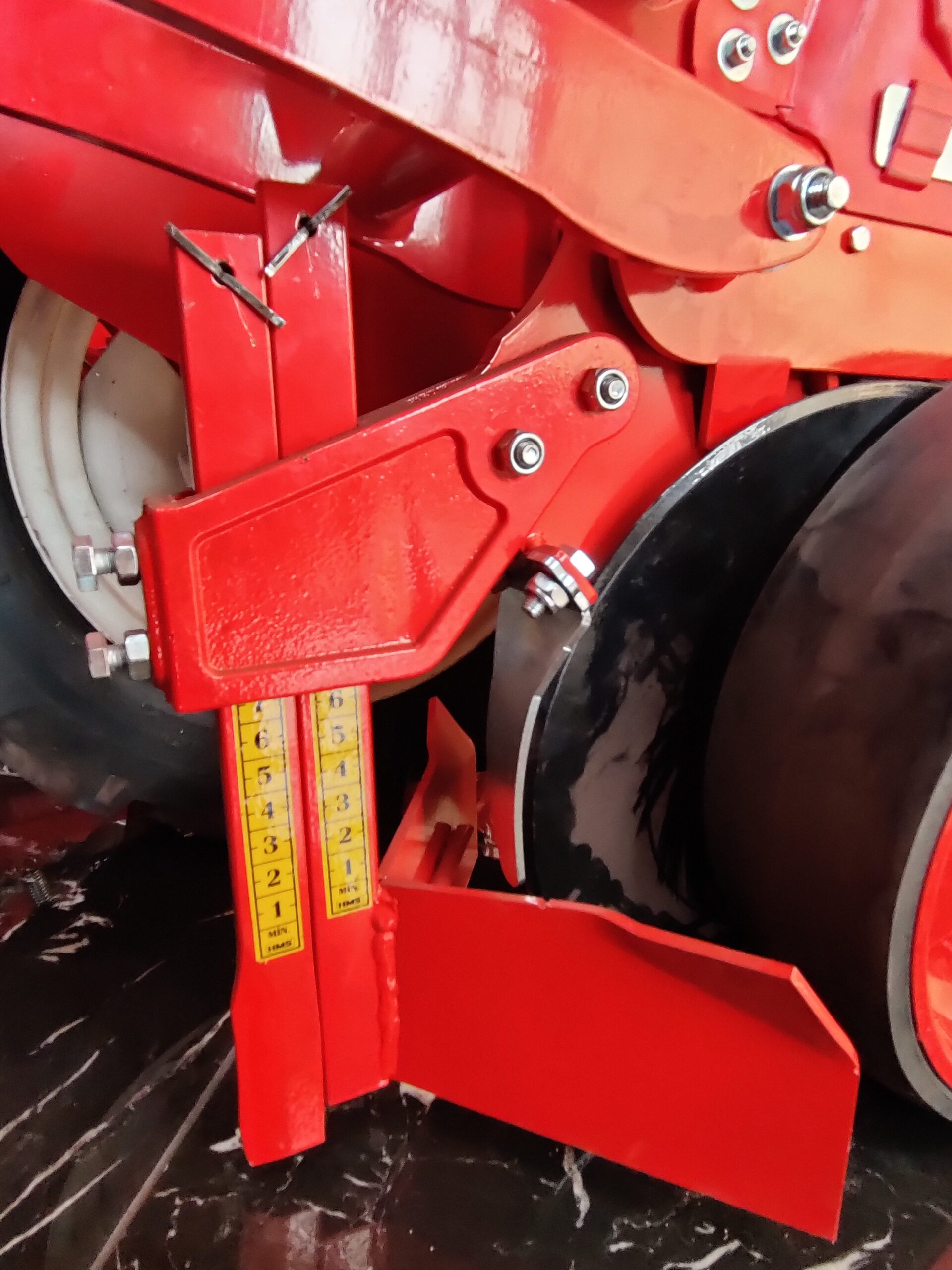

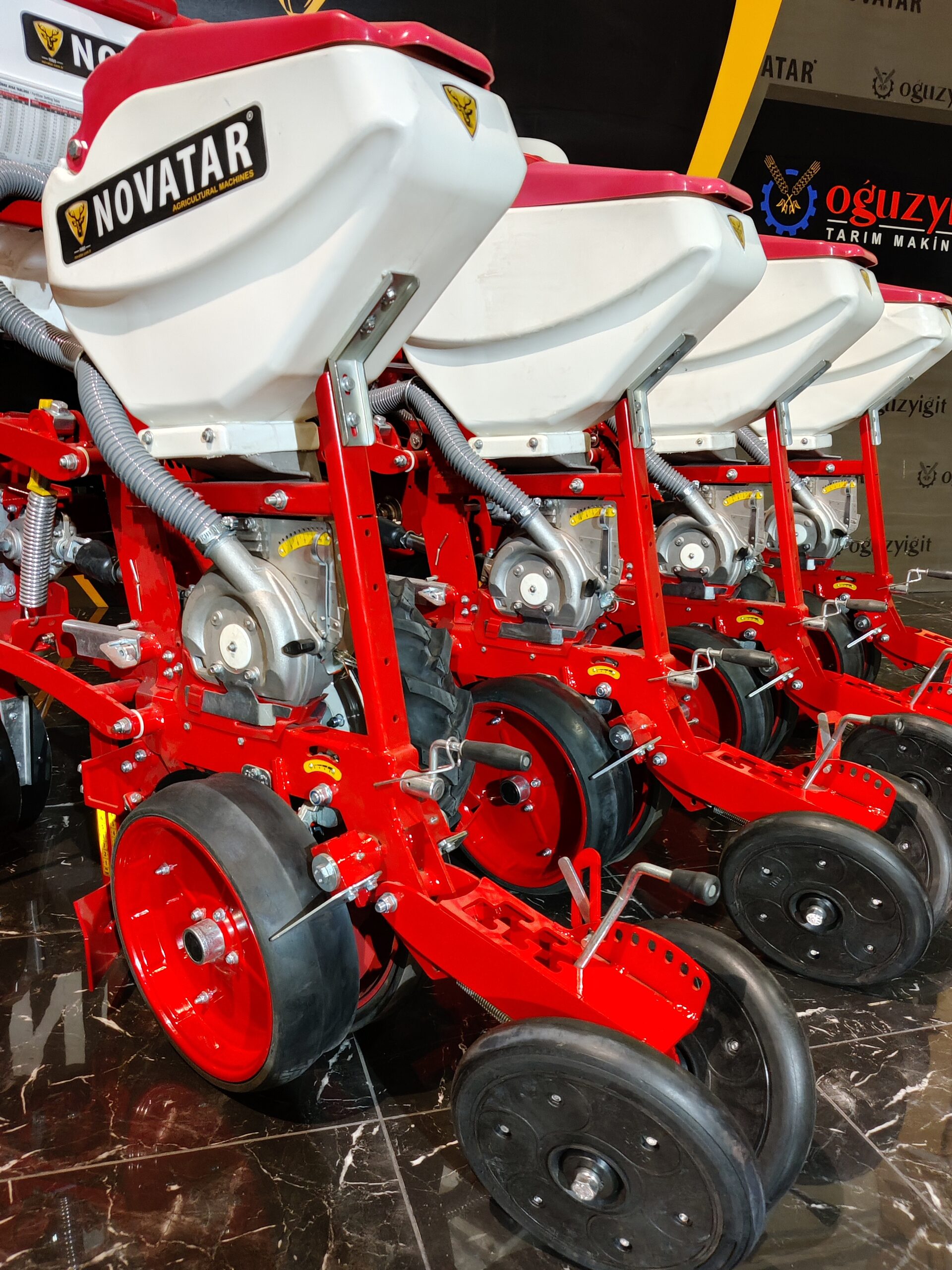

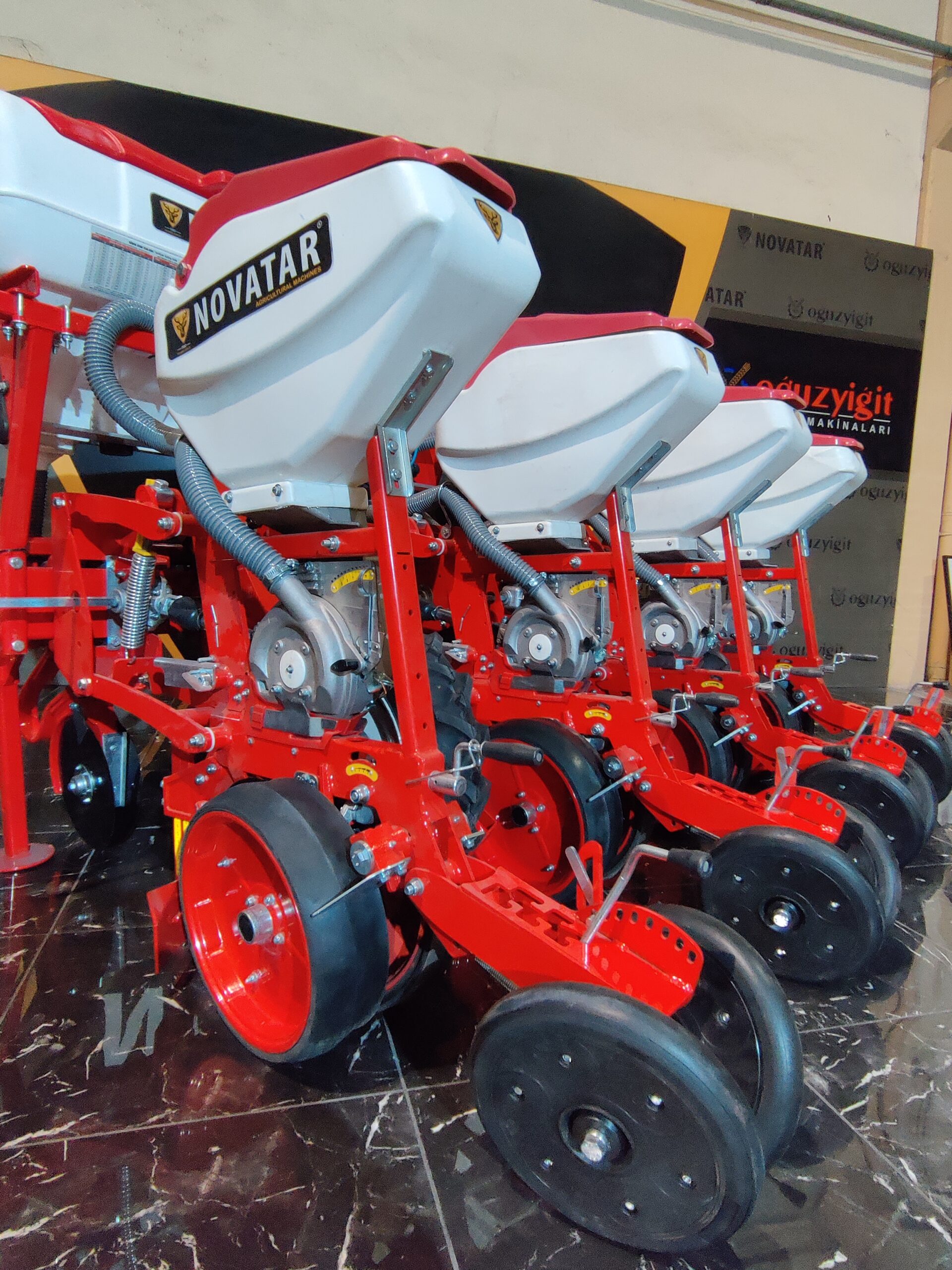

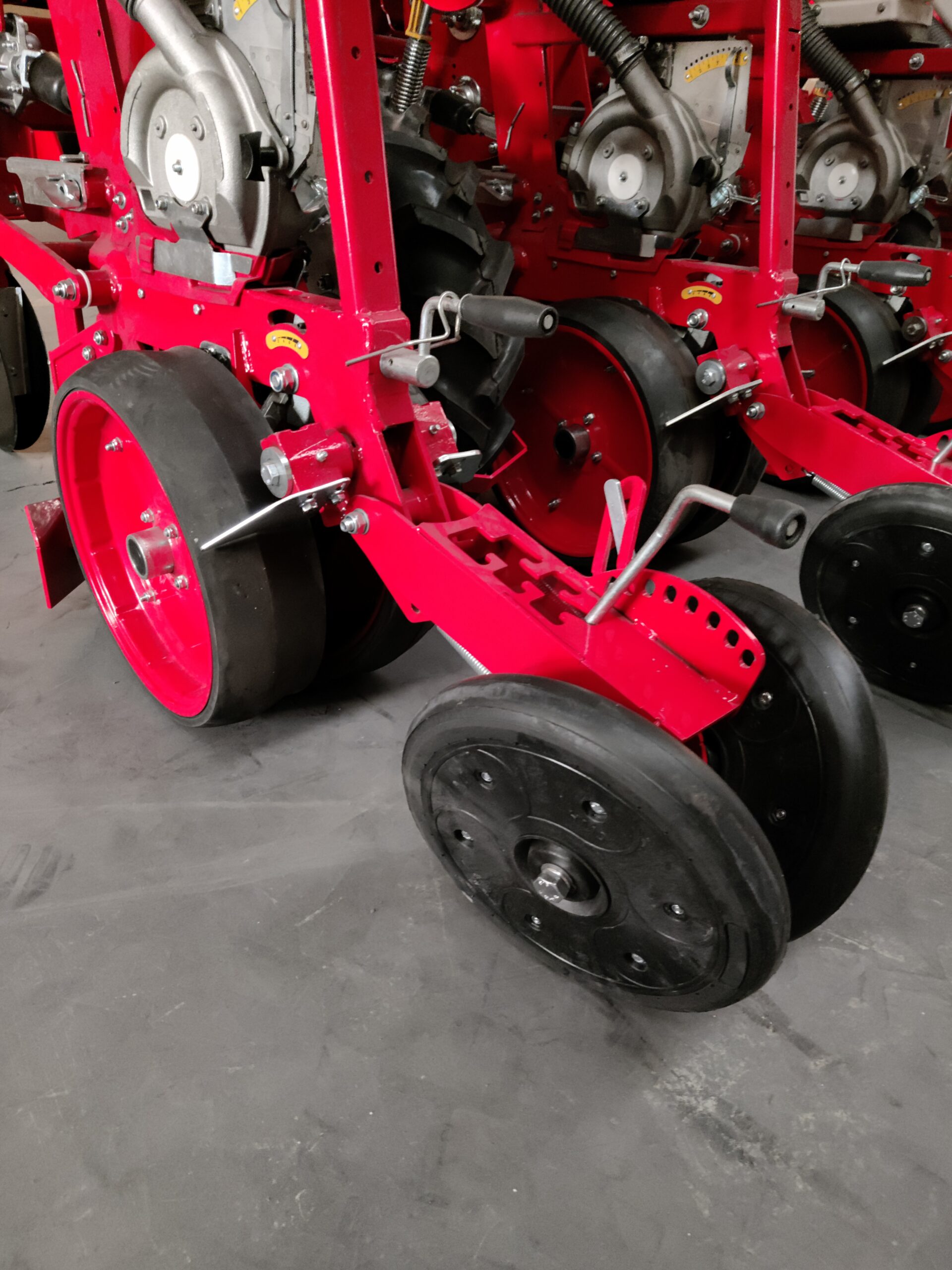

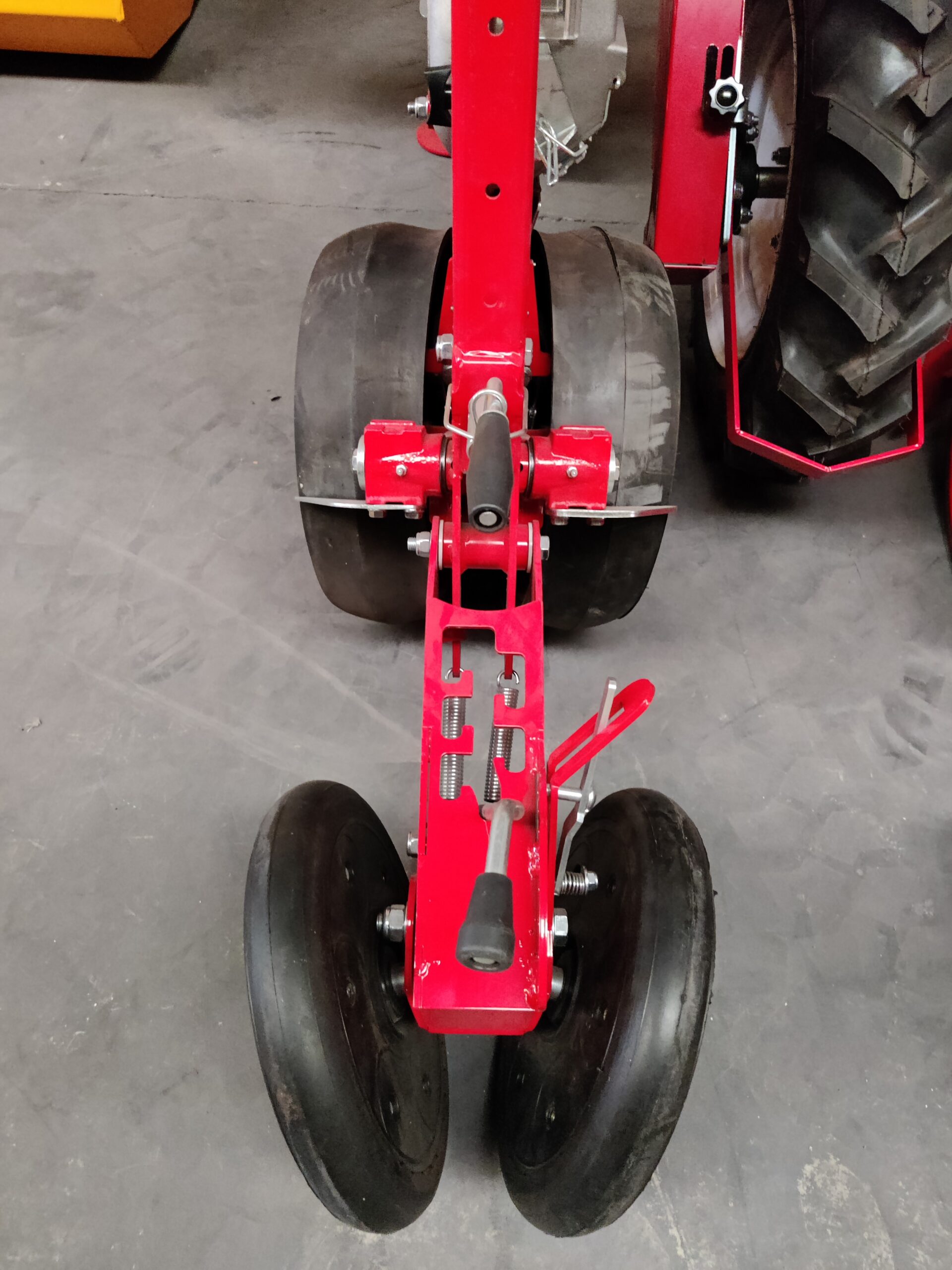

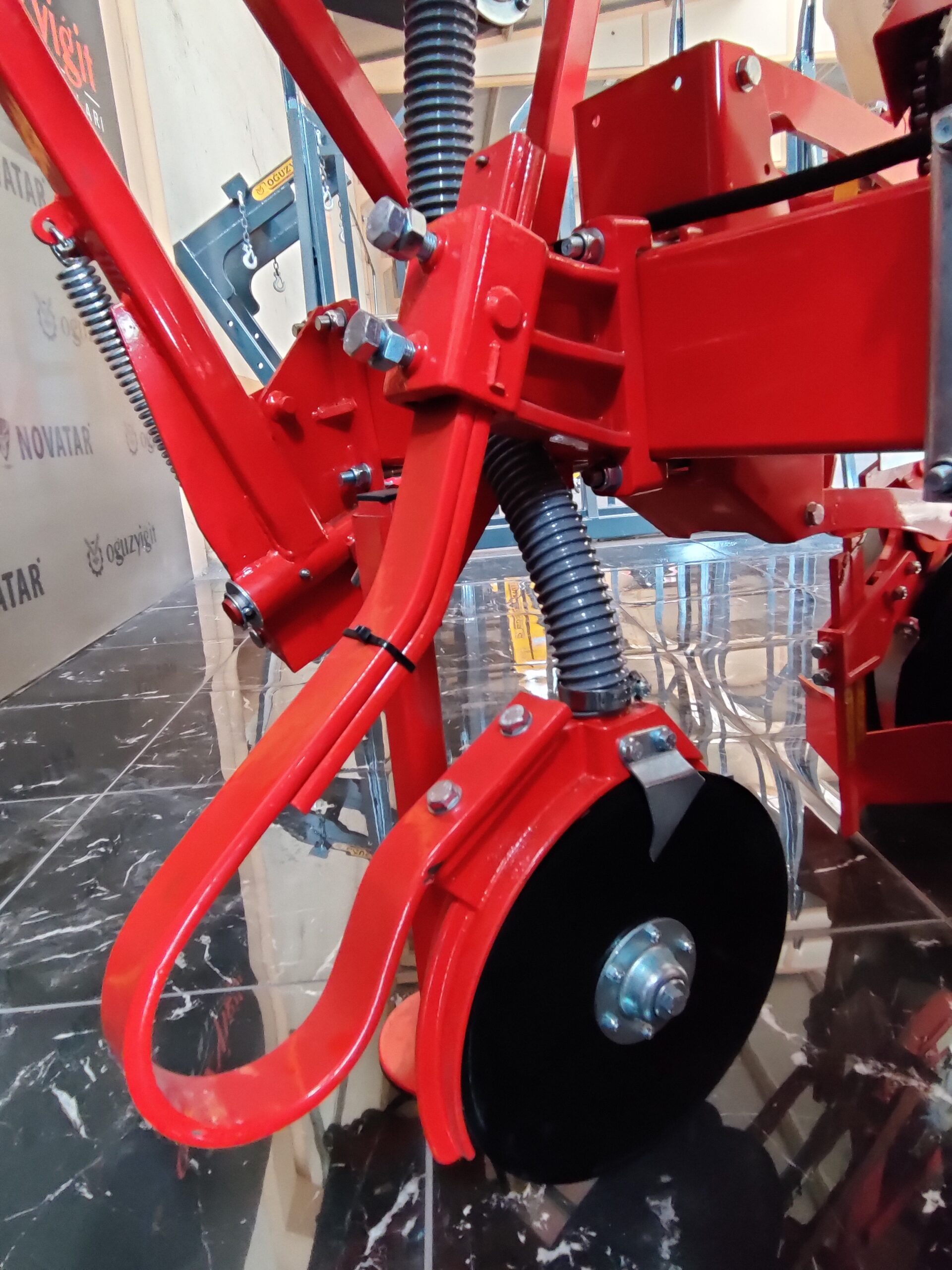

Seedbed is opened with the help of discs in sowing units. Each sowing unit consists of 2 discs made of special material. It can operate in fields with processed or semi-processed stem remains thanks to cutter discs that can be attached to the front side of chassis and disc-type sowing units. Because movement obtained from the wheel is transmitted to sowing units by shaft mechanism, precision sowing can be performed in intra-row distances. Due to rubber wheels located on both sides of the sowing units, precise depth adjustment can be made in all kinds of soil conditions. V type designed pressure wheels which are located at the rear of the seed unit can be tightened and untightened at the desired rate. V pressure wheels prevent the formation of a duff layer on the soil. Disc type sowing units allow sowing in early temper. Disc Shared Pneumatic planters are suitable for sowing at ridges as they do not ruin ridges. Because seedbed is opened by turning discs, it does not harden. It is suitable for plant development and does not put much load on tractors. Units can be switched to road and operating status at any time easily. Different accessories can be mounted optionally. Our machines have been designed to save time, provide high efficiency with high operating speed and excellent performance
