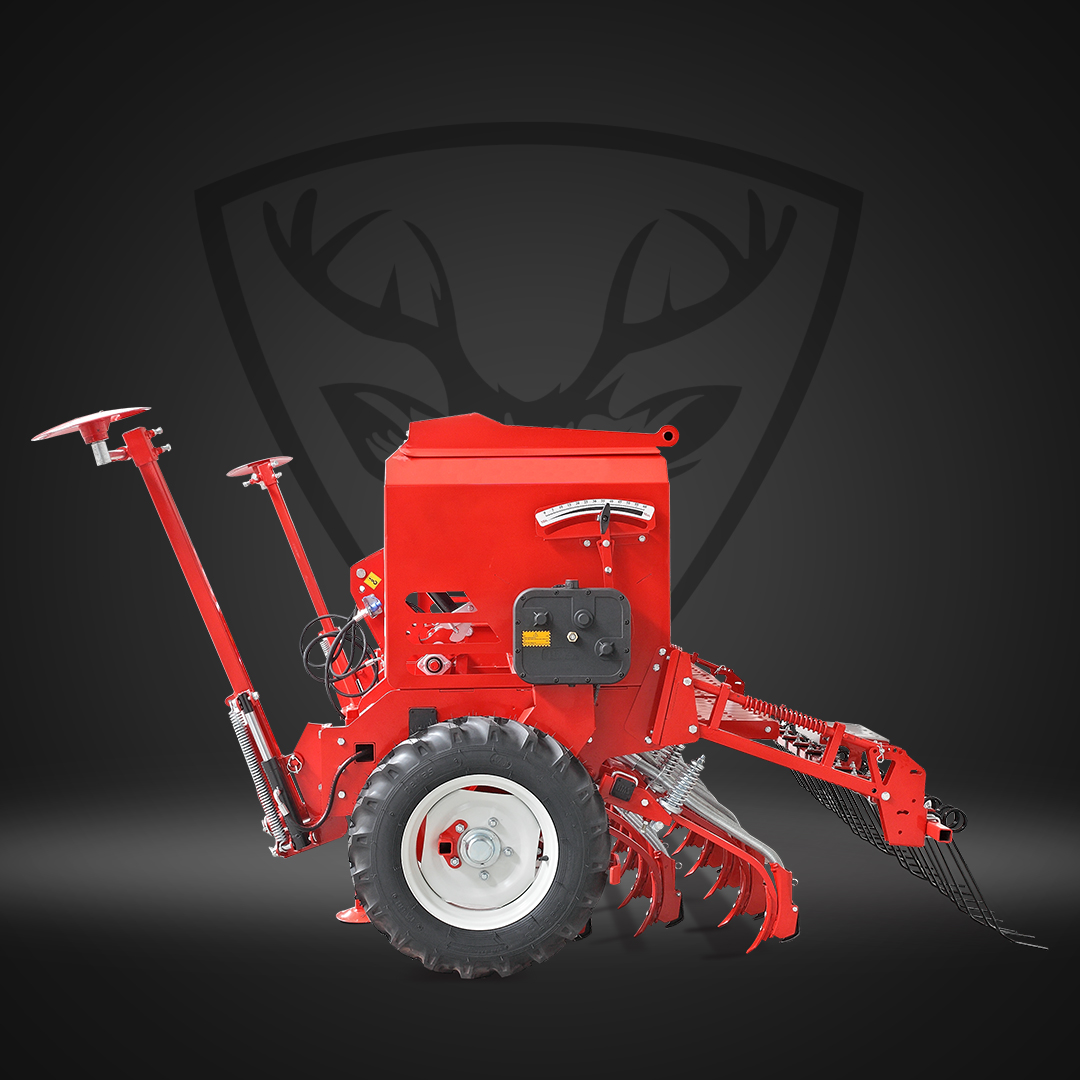

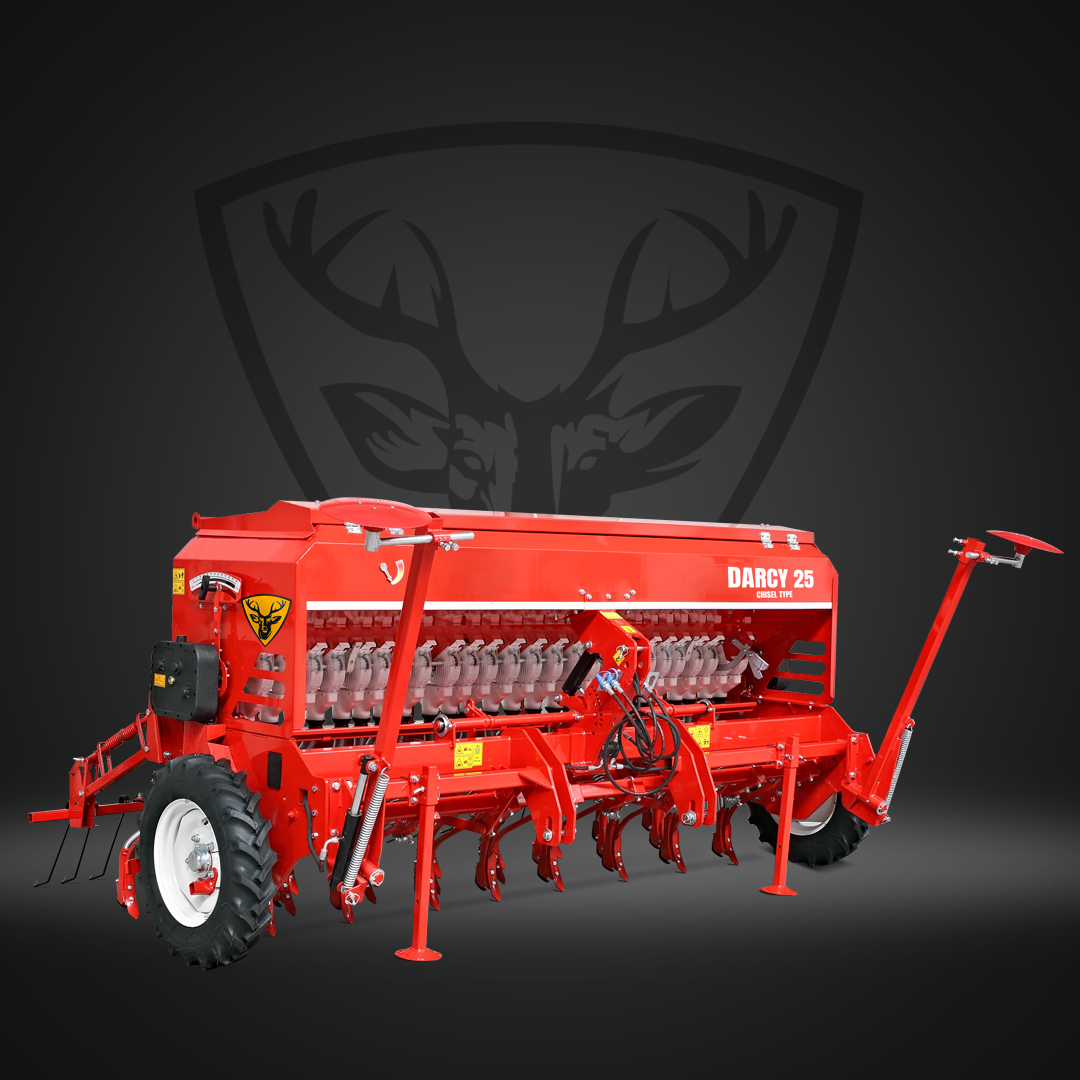

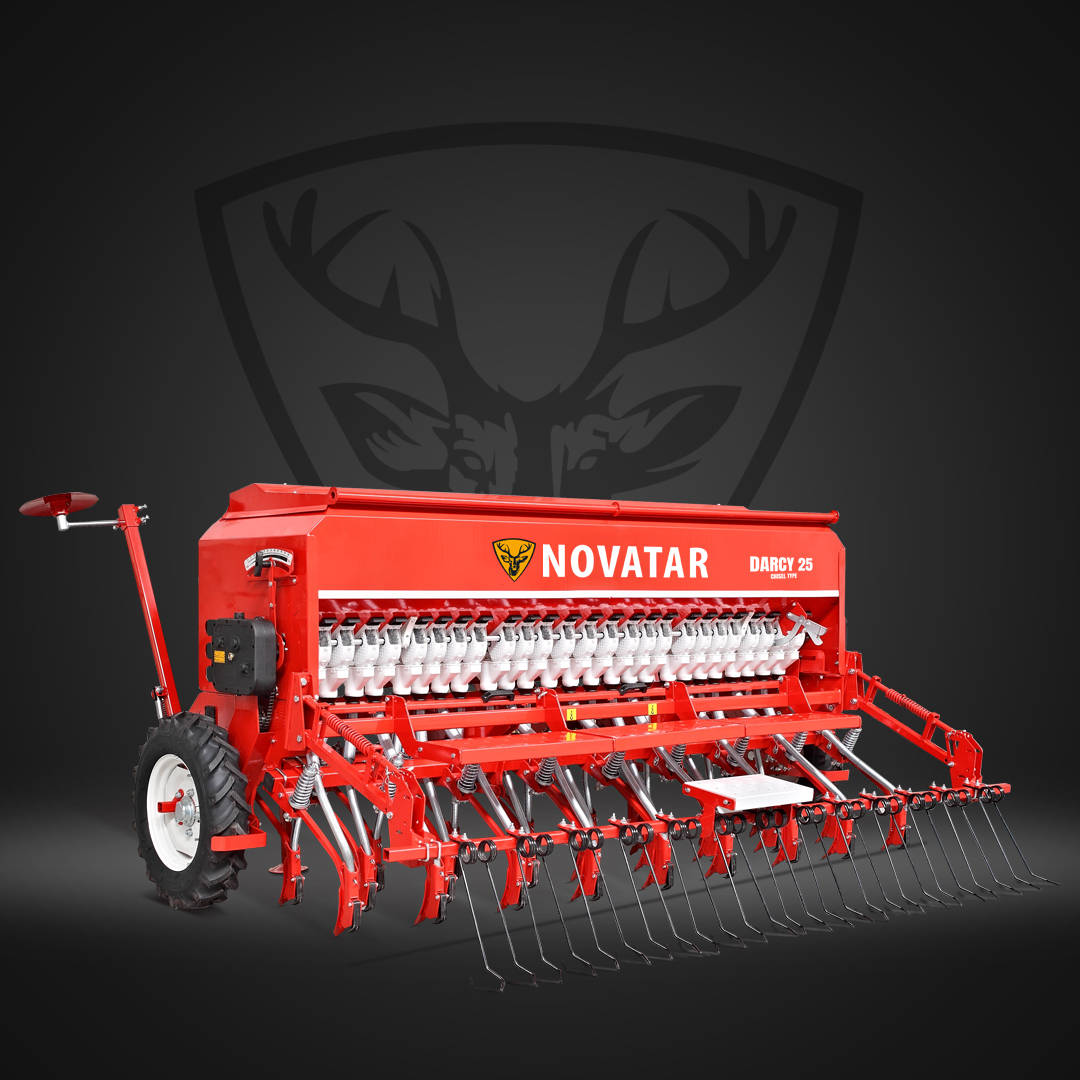

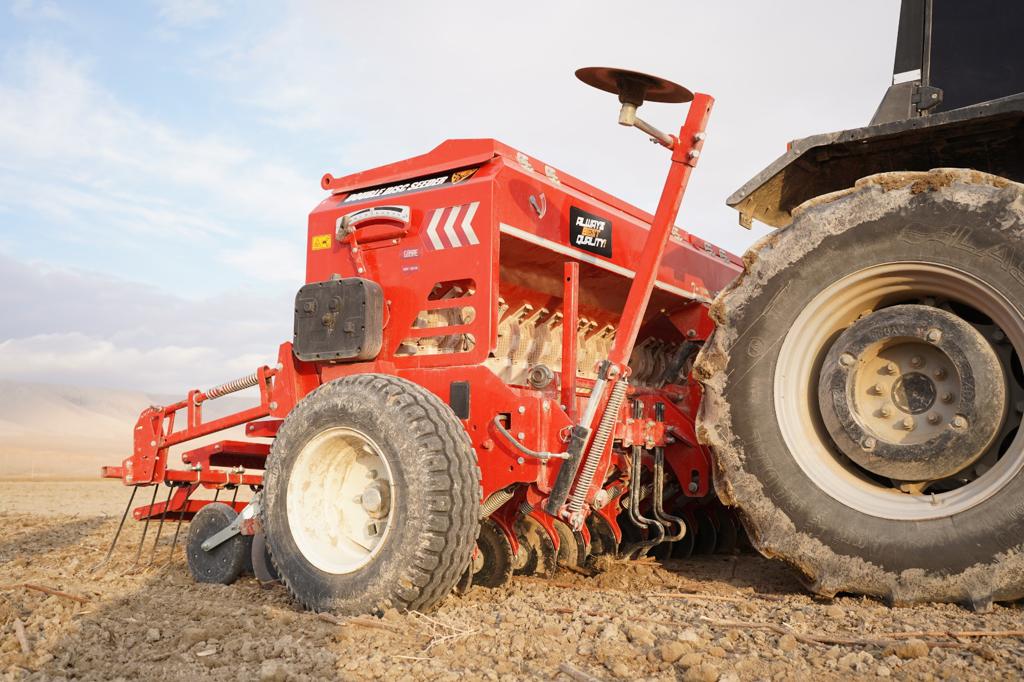

Darcy 25 Chisel Type is a sowing machine that can distribute the seed and fertilizers in the desired depth and equidistantly. It can function on flat and sloppy fields thanks to its’ horrow tines. Those harrow tines on the machine are designed in 3 rows and planned to plant in three-serial lanes.

Spring chisel-type legs are manufactured from 22 mm special raw material and seeding angle is created by providing a form. Spring chisel legs are placed as 3 rows on the machinery similar to axe machinery. In this way, it prevents holding stubble pieces on the surface of the field. The chisel-type leg is swift in terms of the use of legs and shows compatibility in most soil conditions. Because it opens a wide seedbed, a uniform sowing is achieved.

Machines are produced as 21,25,29 and 33 tines which have 120 mm interval spacing. Through the rake behind the machine, grading of the soil and covering the seeds over can easily carry out.

Category:
TECHNICAL SPECIFICATIONS UNIT DARCY 21 DARCY 25 DARCY 29 DARCY 33
Number Of Leg pcs 21 25 29 33
Inter-Row Distance mm 120 120 120 120
Working Width mm 2500 3000 3500 4000
Seed Capacity lt 460 550 640 730
Fertilizer Capacity lt 305 370 400 425
Capacity Without Fertilizer lt 750 950 1150 1350
Tyre Dimensions inch 600/16 600/16 600/16 600/16
Operation Seed km/h 5*8 5*8 5*8 5*8
Width cm 275 325 375 425
Height cm 150 150 150 150
Weight kg 900 1050 1230 1390
Required Power hp 70+ 80+ 100+ 110+
