| DESCRIPTION | MORGAN-6 | MORGAN-10 | MORGAN-15 | MORGAN-18 |
| MACHINE WIDTH | 2250 MM | 2600 MM | 2600 MM | 2600 MM |
| MACHINE LENGTH | 5200 MM | 6800 MM | 7400 MM | 7500 MM |
| MACHINE HEIGHT | 2500 MM | 2500 MM | 2650 MM | 2850 MM |
| BODY VOLUME | 6 M3 | 10 M3 | 15 M3 | 18 M3 |
| EMPTY WEIGHT | 2700 KG | 3850 KG | 4550 KG | 5000 KG |
| DISTRIBUTION SYSTEM | DISC | DISC | DISC | DISC |
| NUMBER OF DISCS | 2 PCS | 2 PCS | 2 PCS | 2 PCS |
| DISC DIAMETER | 800 MM | 800 MM | 860 MM | 860 M |

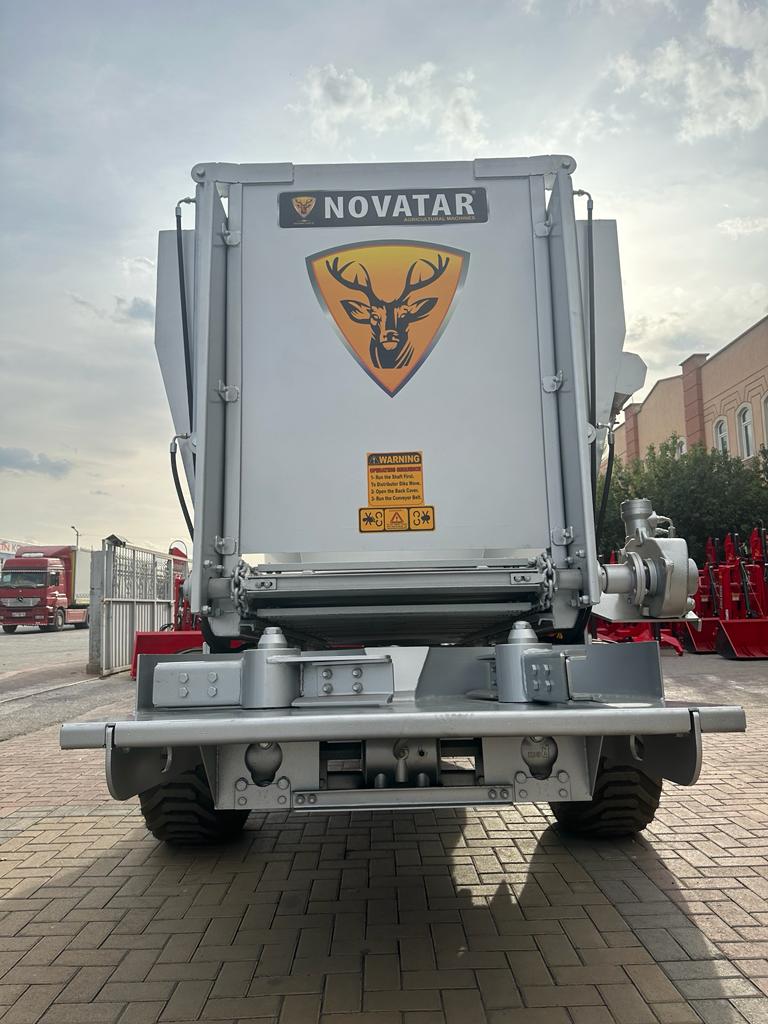

| DRAIN COVER TYPE | Double Action Hydraulic | Double Action Hydraulic | Double Action Hydraulic | Double Action Hydraulic |

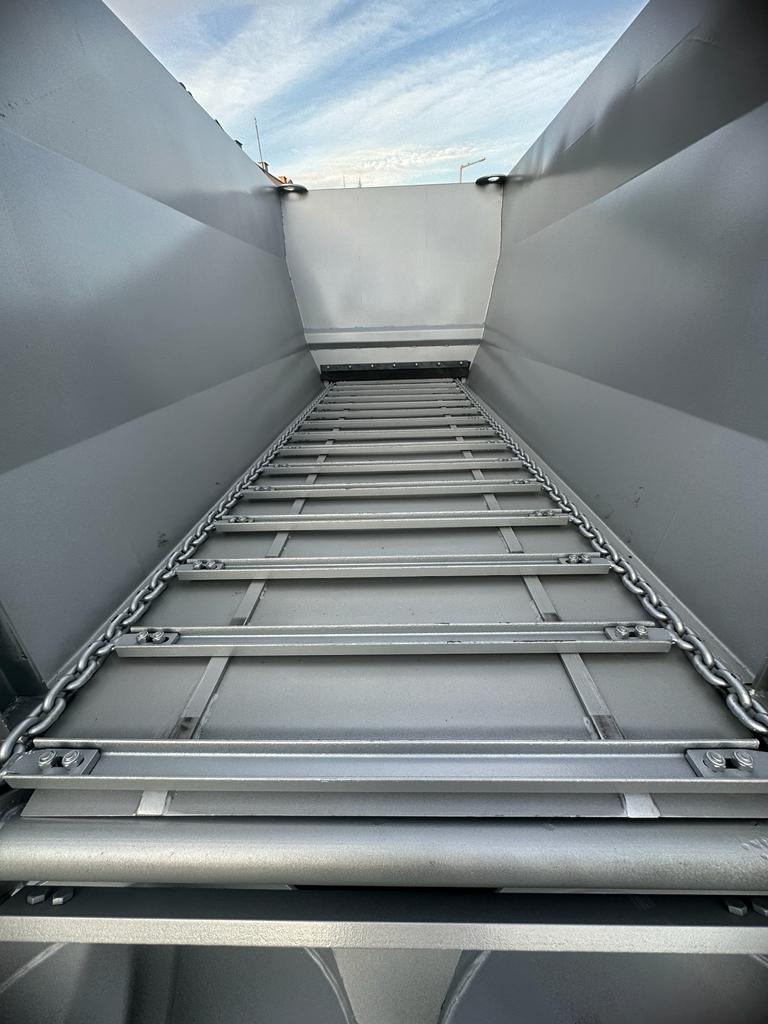

| FERTILIZER GRIPPER TYPE | Caliber Ring Steel Chain | Caliber Ring Steel Chain | Caliber Ring Steel Chain | Caliber Ring Steel Chain |
| FERTILIZER PROPULSION | Hydromotor and Gearbox | Hydromotor and Gearbox | Hydromotor and Gearbox | Hydromotor and Gearbox |
| MIN REQUIRED TRACTOR HP | 50 HP | 70 HP | 90 HP | 120 HP |
| WORKING WIDTH | 17-19 METER | 17-19 METER | 19-21 METER | 21-23 METER |

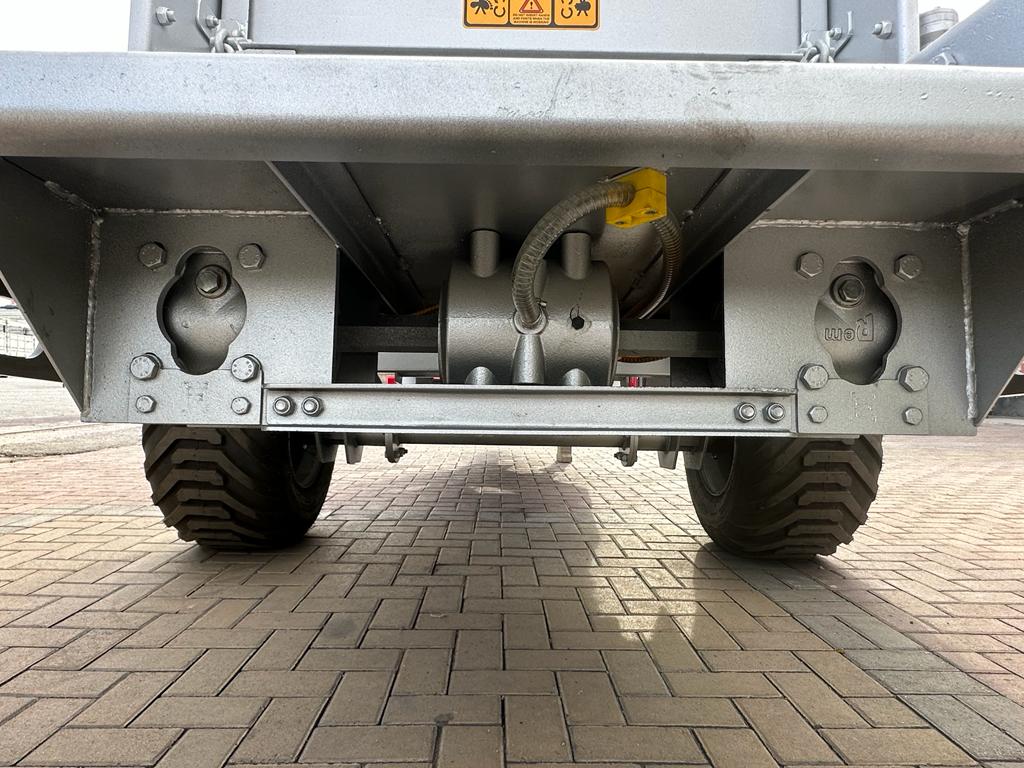

| AXLE SYSTEM | Single Axle | Tandem (Crib 4 Wheels) | Tandem (Crib 4 Wheels) | Tandem (Crib 4 Wheels) |
| WHEEL SIZE | 11.5 / 80 / 15.3 | 400 / 60 / 15.5 | 385 / 65 / 22.5 | 402 / 60 / 15.5 |
| SOURCE OF POWER | Tractor PTO | Tractor PTO | Tractor PTO | Tractor PTO |
| TOTAL TIRES | 2 | 4 | 4 | 4 |
Disc-type manure spreader is an agricultural machine that is used to distribute manure over a field as a fertilizer. A standard manure spreader consists of a towed trailer behind a tractor and takes its power by the tractor’s power take-off.

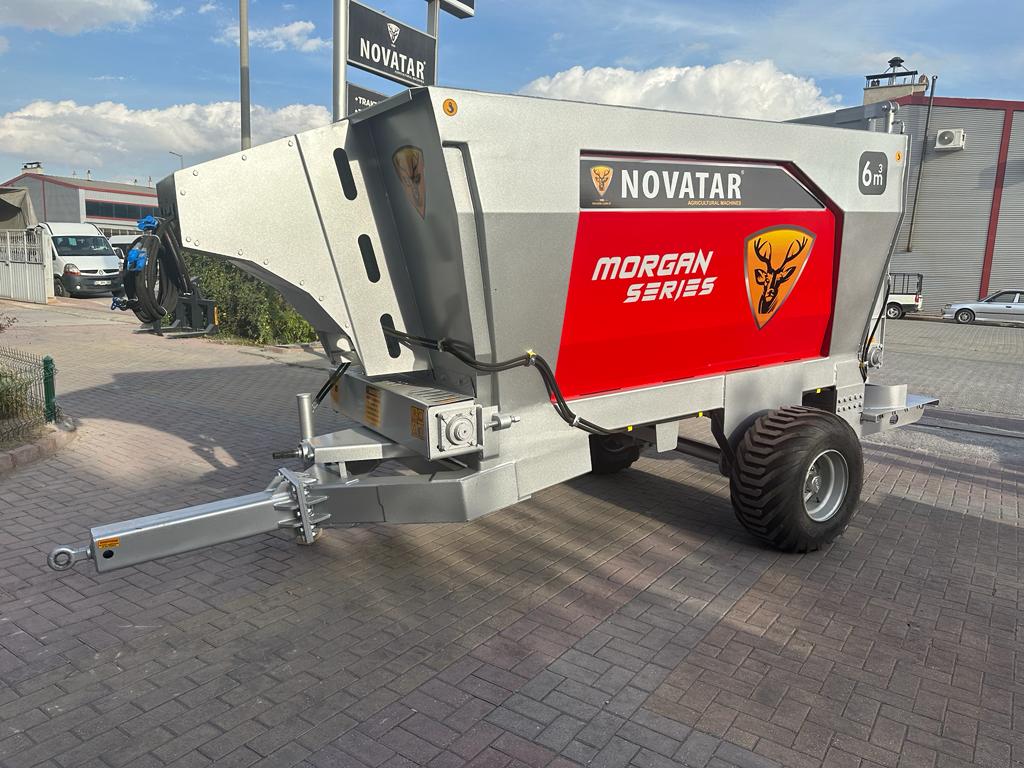

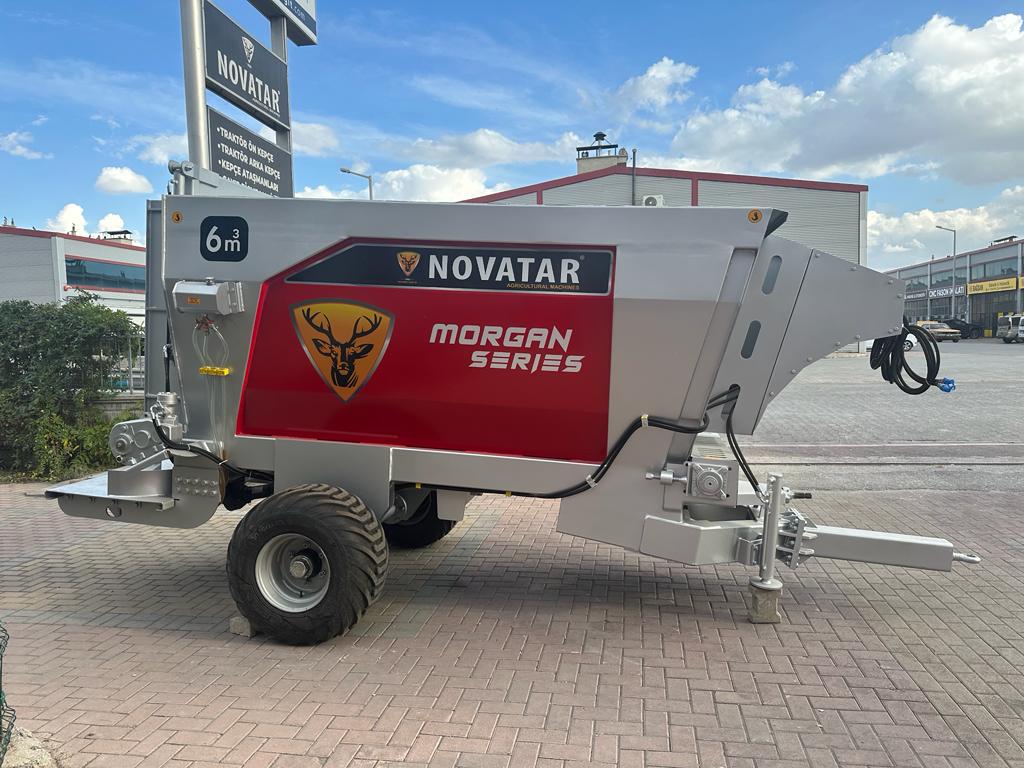

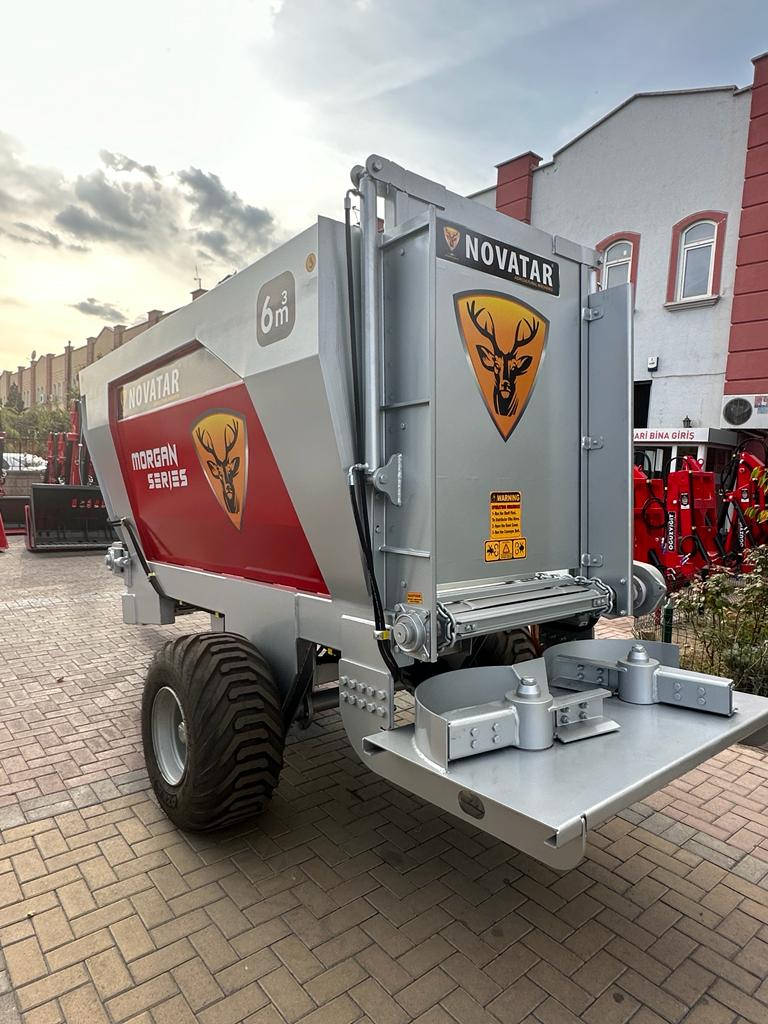

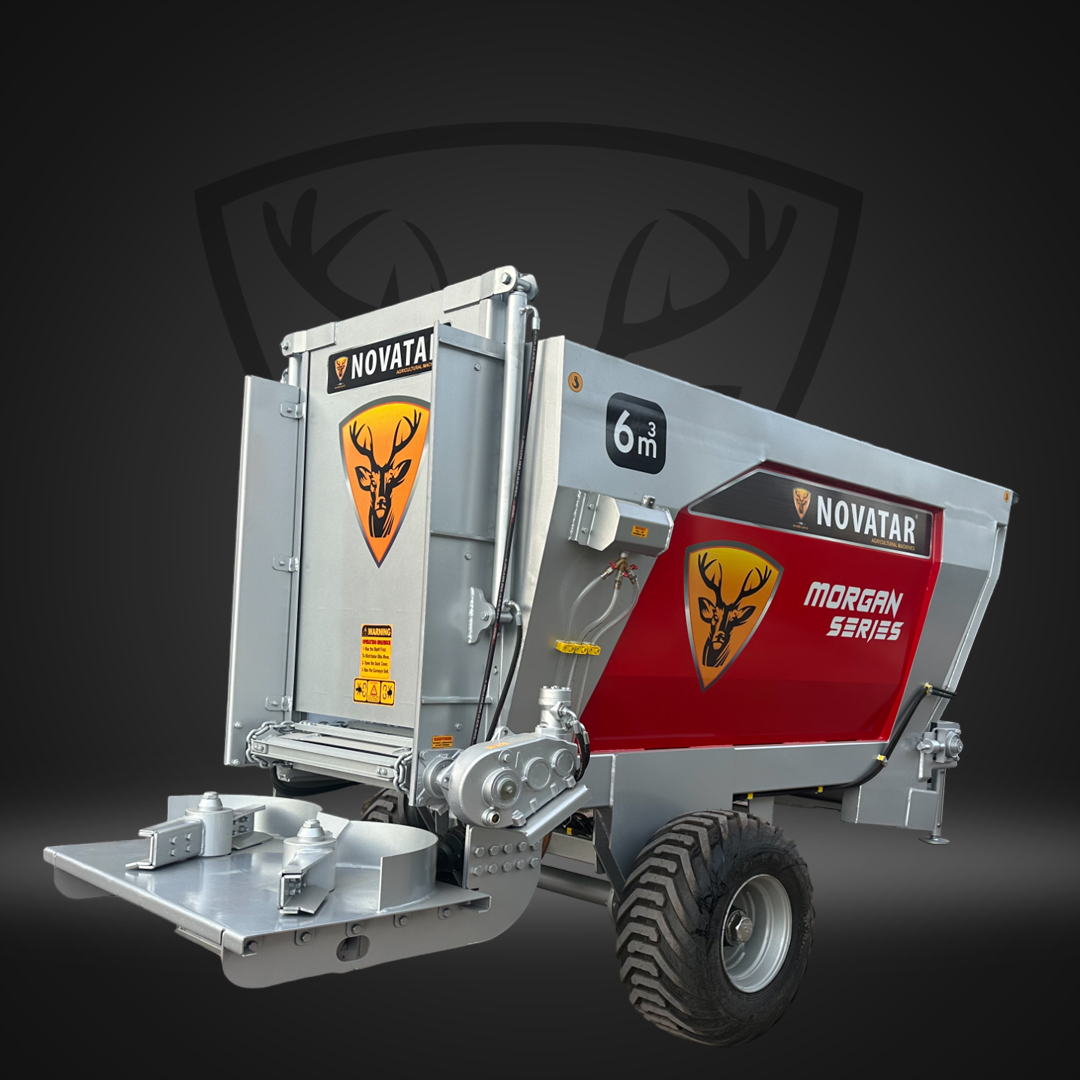

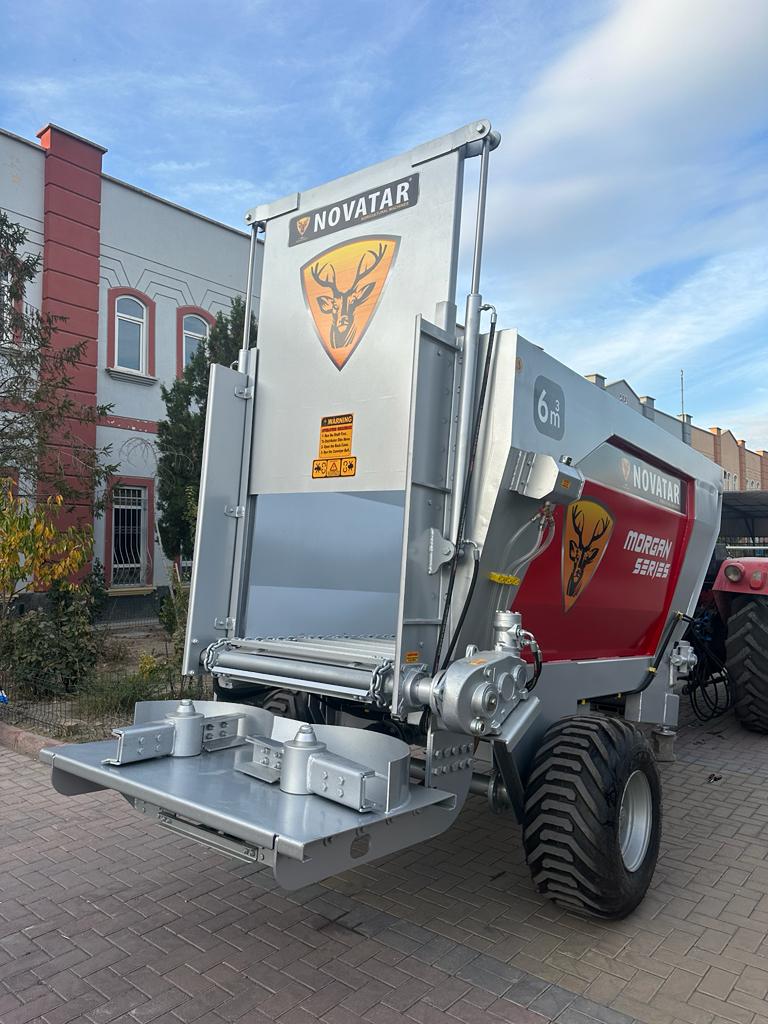

MORGAN Series Manure Spreader manufactured by Novatar for the farmer who is looking for a very high-quality manure spreader. As Novatar we have Manure Spreader from 6 Cubic meters to 34 Cubic meters with excellent stability and maneuverability, visibility of the load, and superior ground clearance.

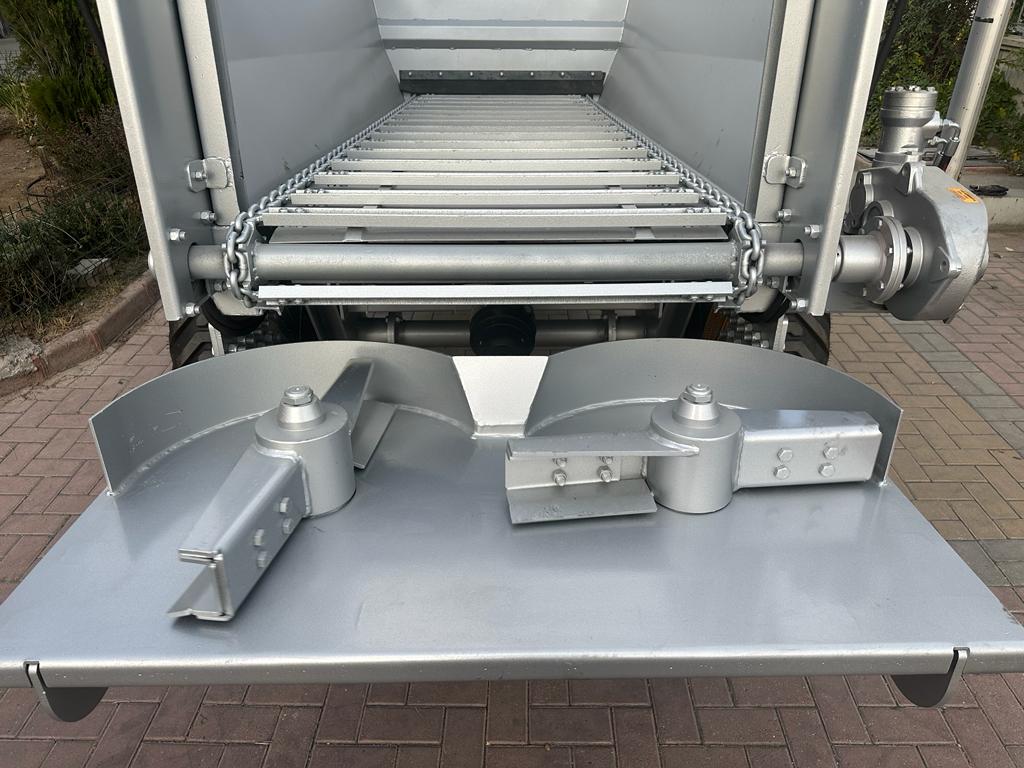

Large diameter discs generate a high tip speed to ensure a fine shredding action is achieved, with tall beaters delivering massive output or high work rates.
