GRAND SERIES MANURE SPREADER |
CAPACITY | WEIGHT | PTO SHAFT ROTATION | TIRE DIMENSIONS | TOTAL TIRES | TOTAL SLAPPERS | AXLE SYSTEM | MIN. HP | BRAKE SYSTEM | TRAILER DIMENSIONS |
TOTAL DIMENSIONS |
GRAND 3 | 3 M³ (4 TON) | 1650 KG | 540 | 11,5X80X15,3 | 2 | 12 | CONSTANT | 40+ | HYDRAULIC | 1580 X 2900 X 800 | 2000X4700X1650 |
GRAND 6 | 6 M3 (8 TON) | 2950 KG | 540 | 400/60-15,5 | 2 | 18 | CONSTANT | 65 HP+ | HYDRAULIC | 1750 X 3500 X 1100 | 2100X6100X2300 |
GRAND 10 | 10 M3 (14 TON) | 3900 KG | 540 | 400/60-15,5 | 4 | 18 | TANDEM | 90 HP+ | HYDRAULIC | 1750 X 4650 X 1200 | 2100X7250X2400 |
GRAND 15 | 15 M3 (18 TON) | 4500 KG | 540 | 500X50X17 | 4 | 18 | TANDEM | 120 HP+ | HYDRAULIC | 1900 X 4650 X 1400 | 2200X7500X2400 |
GRAND 20 | 20 M3 (25 TON) | 6500 KG | 540 | 435X50X19,5 | 4 | 24 | TANDEM | 140 HP+ | HYDRAULIC | 2350 X 5710 X 1500 | 2300X8200X2750 |

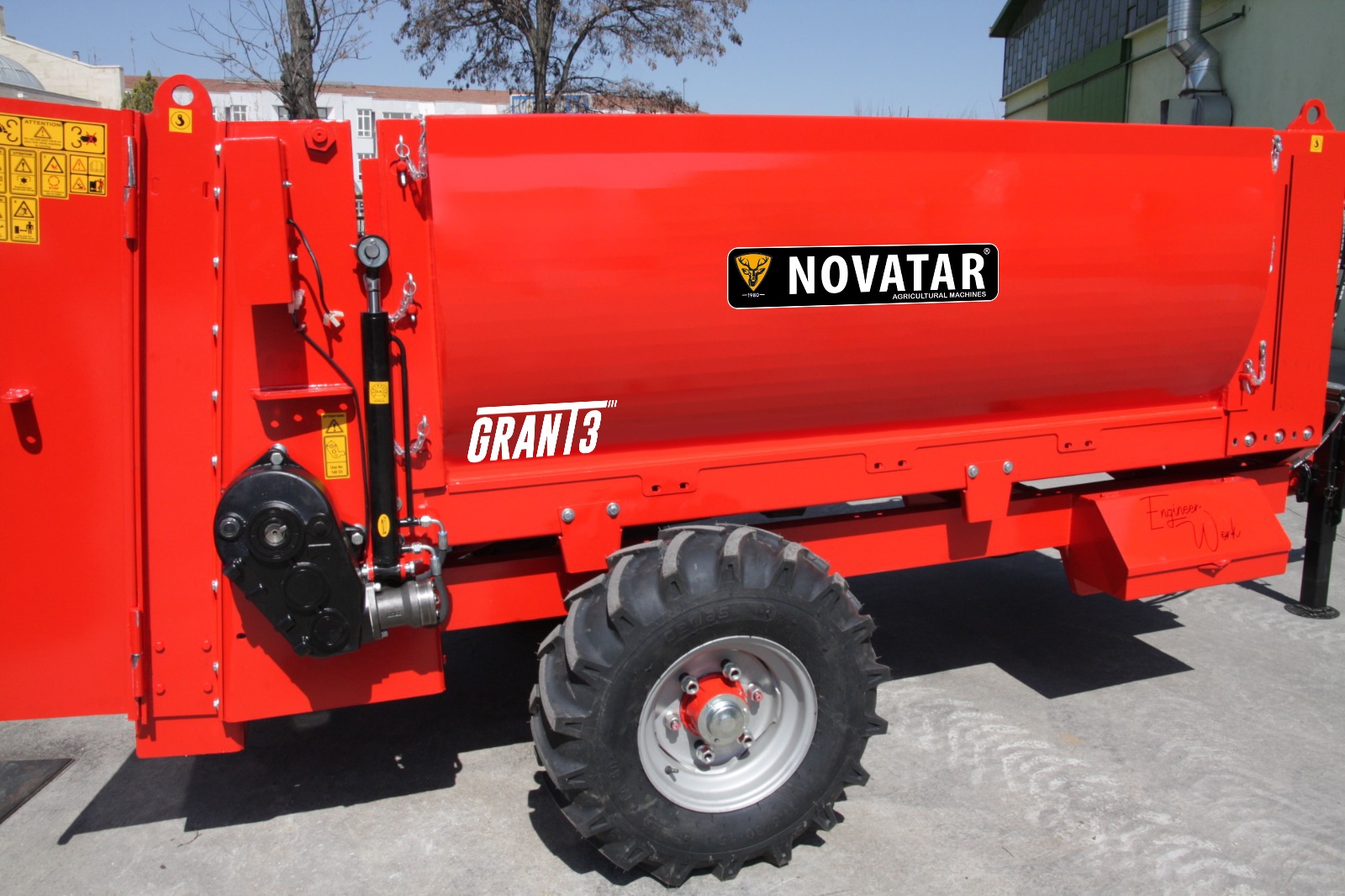

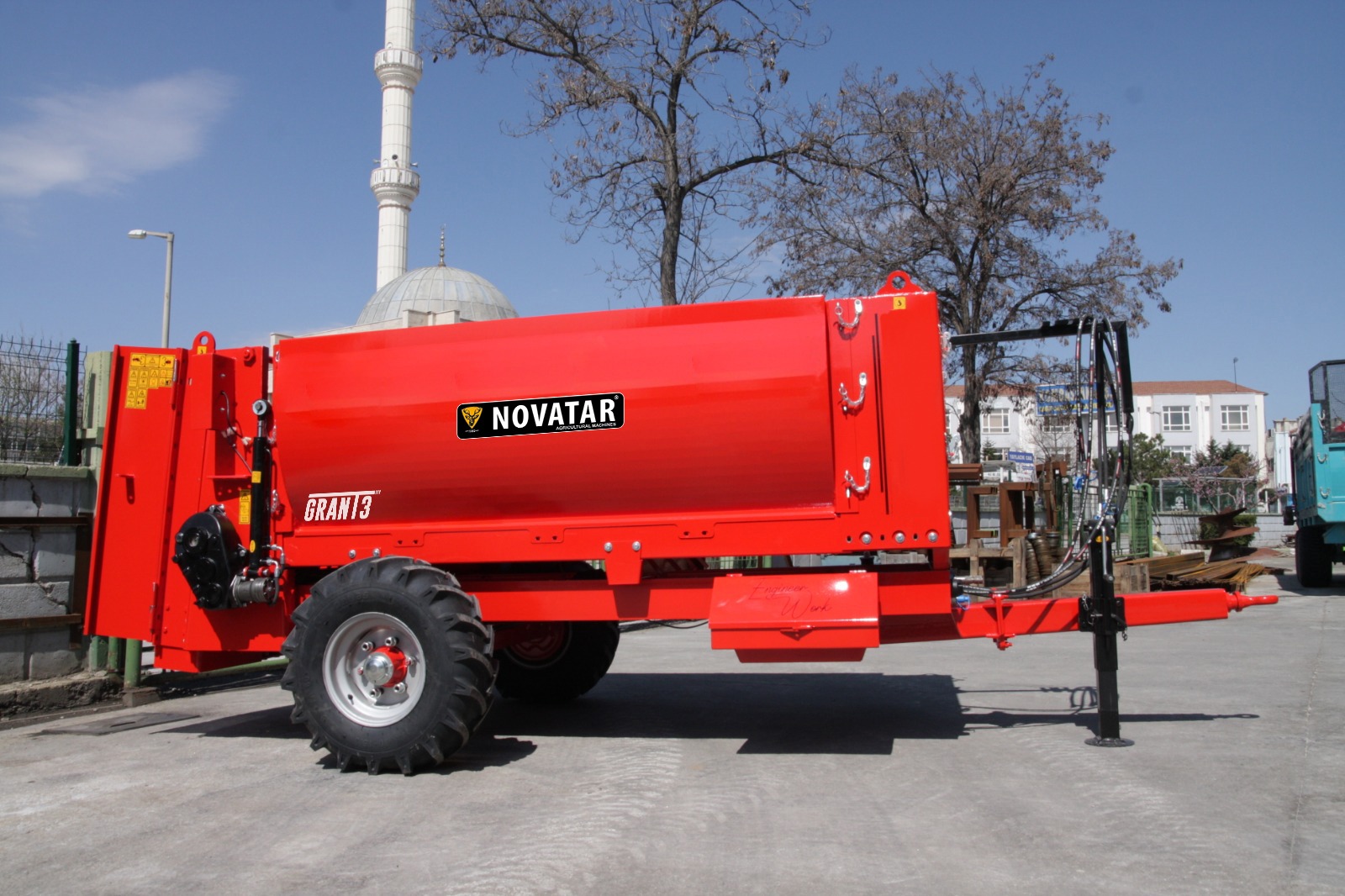

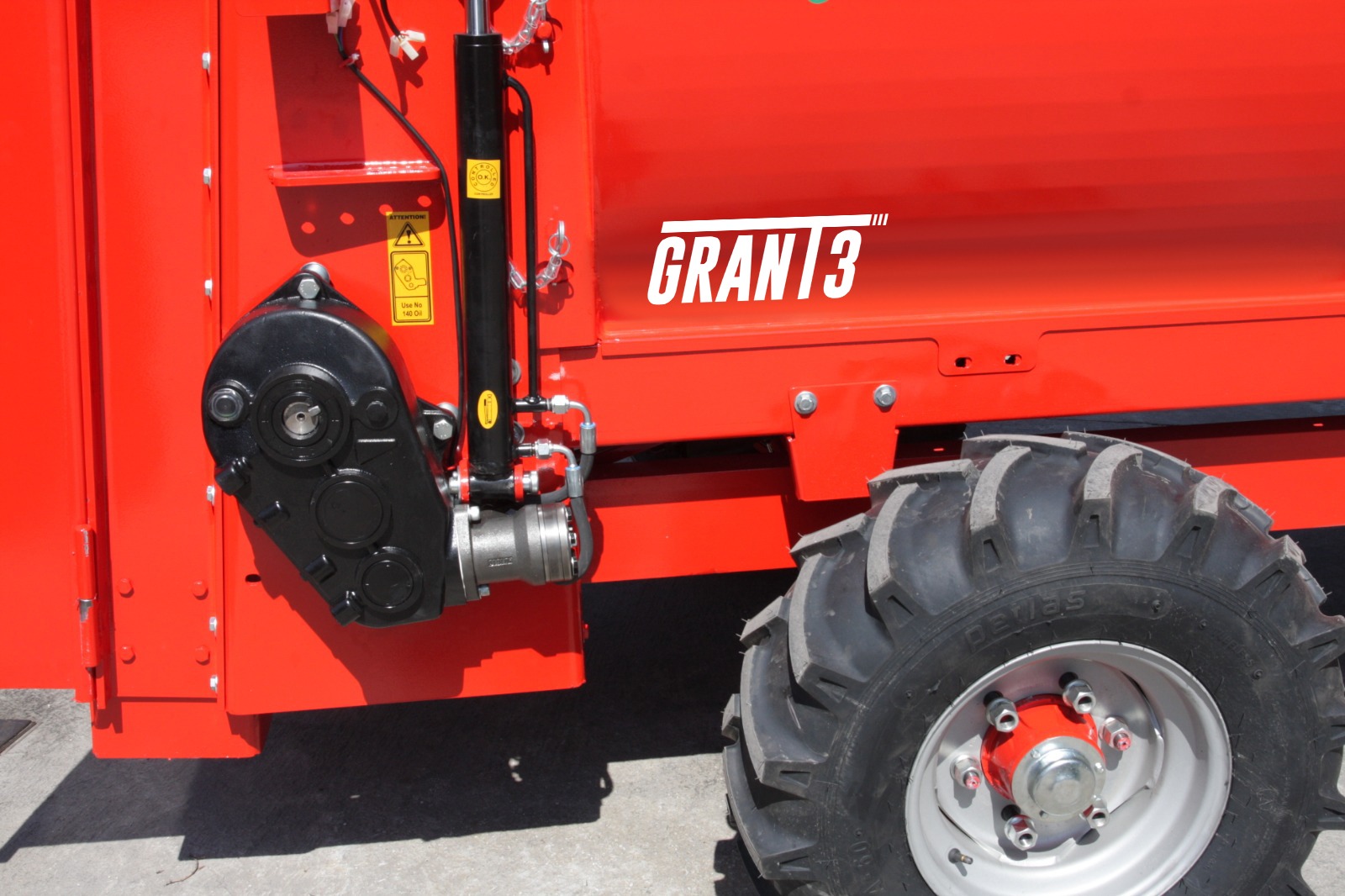

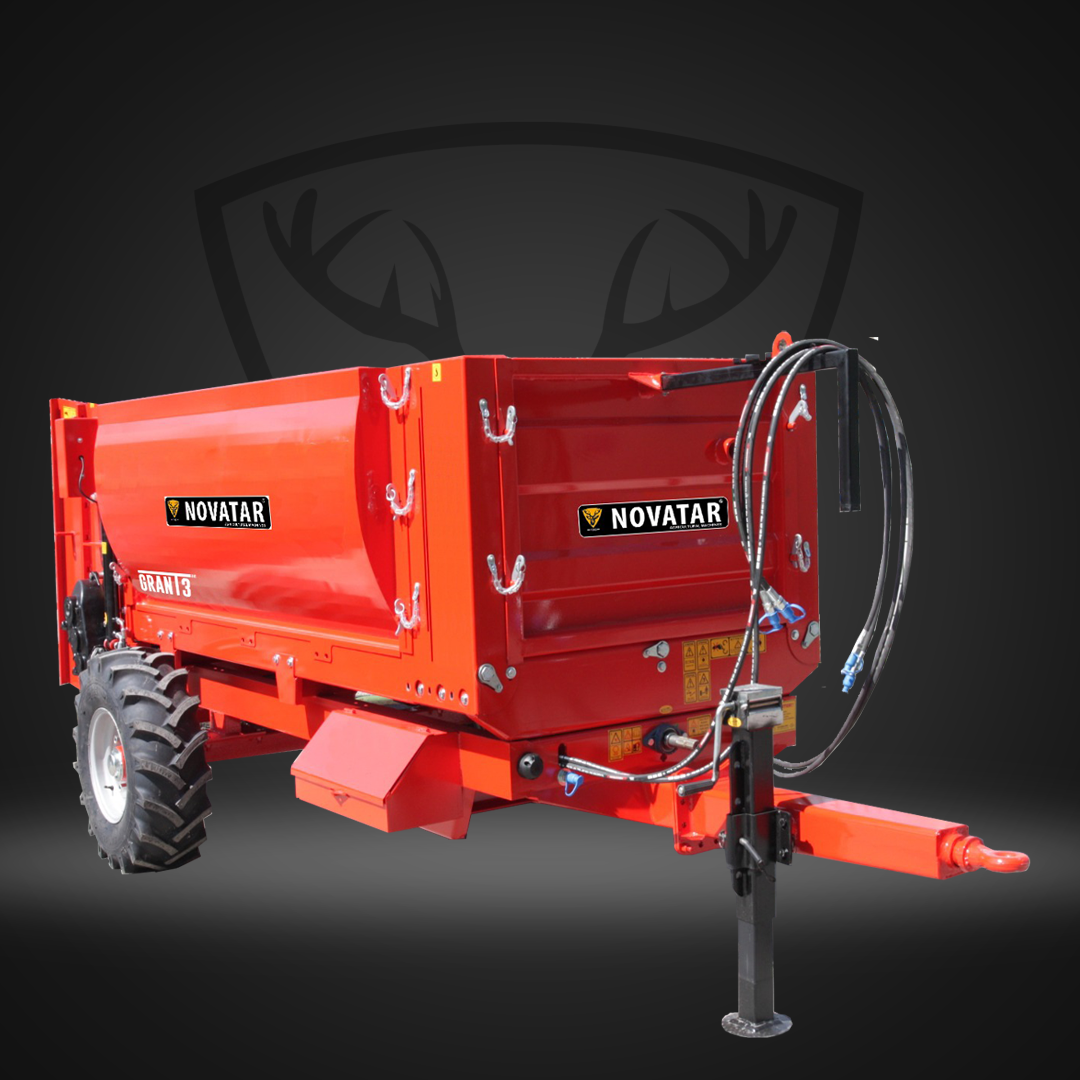

MANURE SPREADER TRAILER – 3 M³ (Grand Series)
MANURE SPREADER TRAILER – 3 M³ (Grand Series)
A manure spreader or muck spreader is an agricultural machine that is used to distribute manure over a field as a fertilizer. A standard manure spreader consists of a towed trailer behind a tractor and takes its power by the tractor’s power take-off.

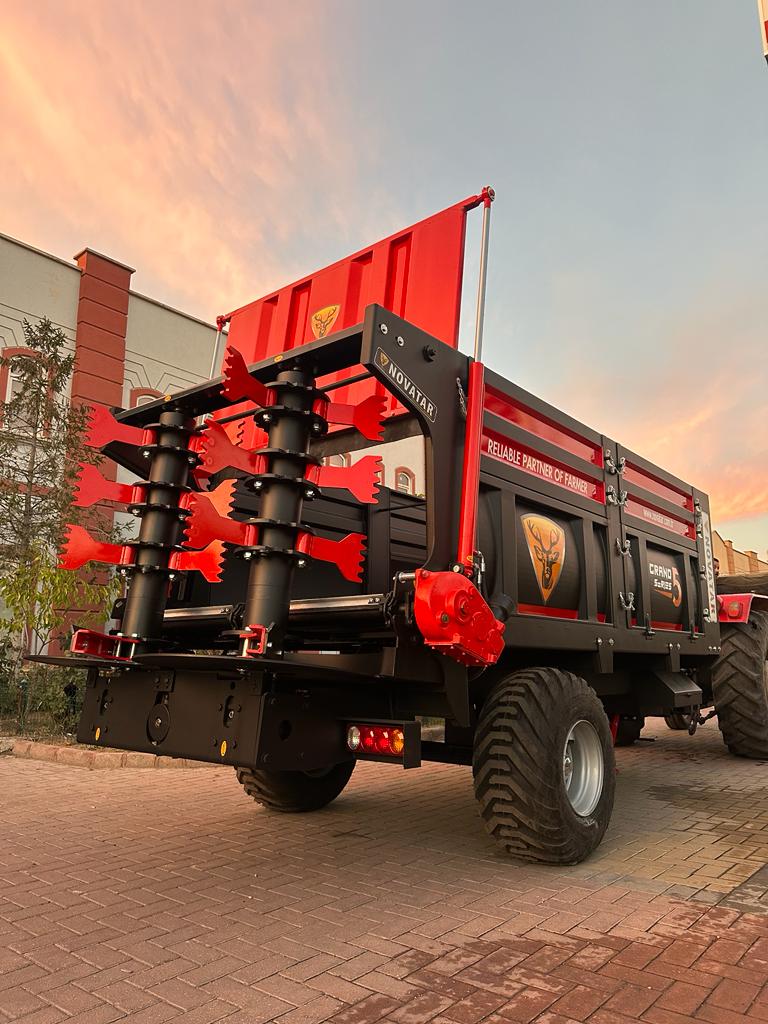

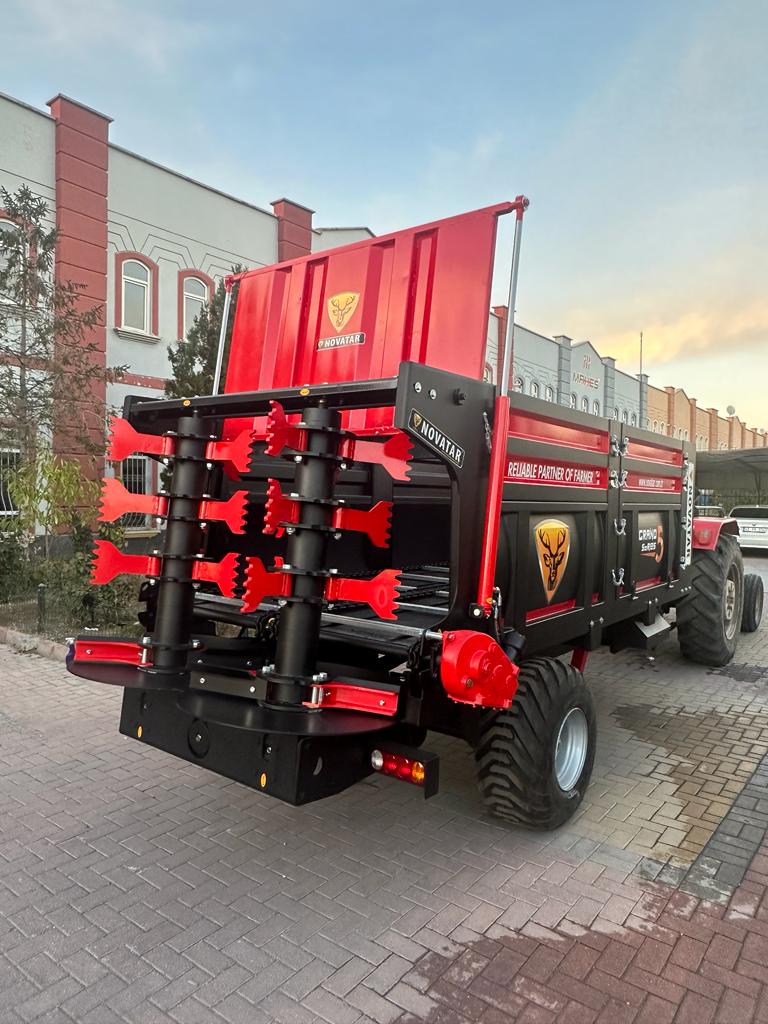

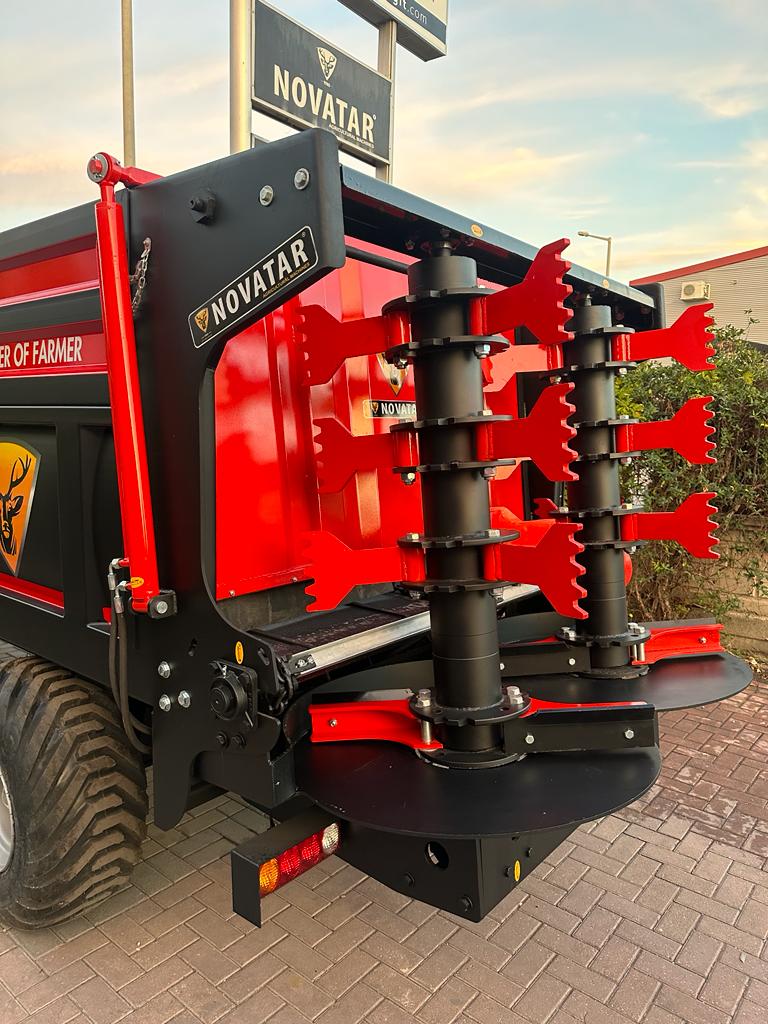

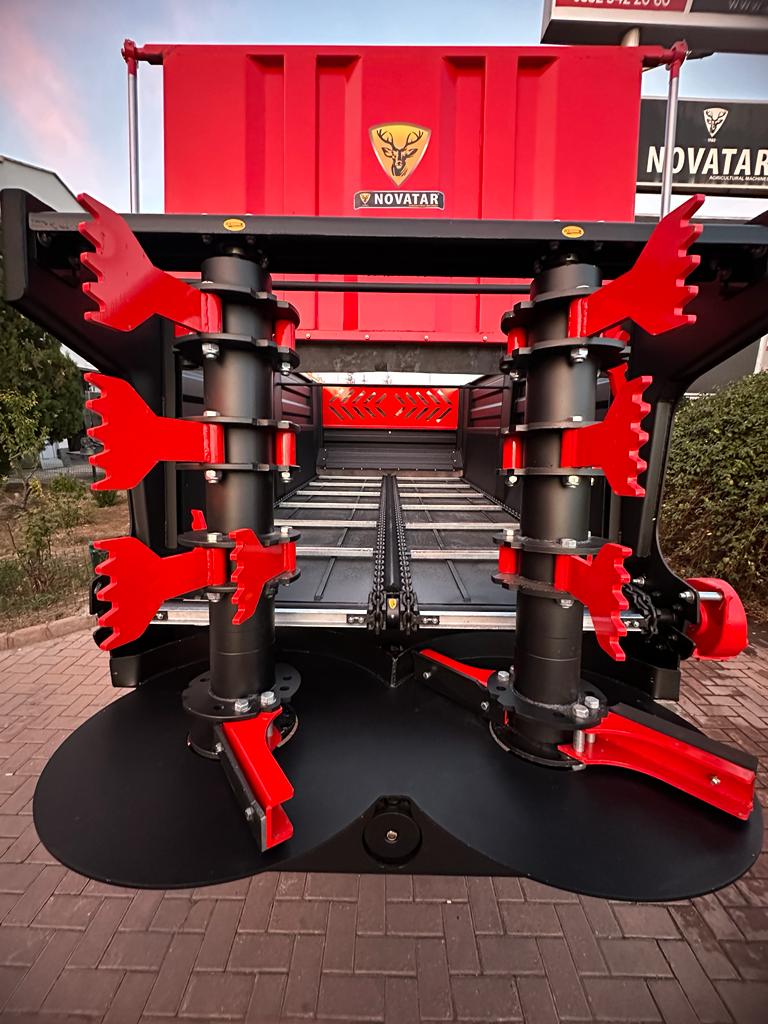

Large diameter slappers generate a high tip speed to ensure a fine shredding action is achieved, with tall beaters delivering massive output or high work rates.

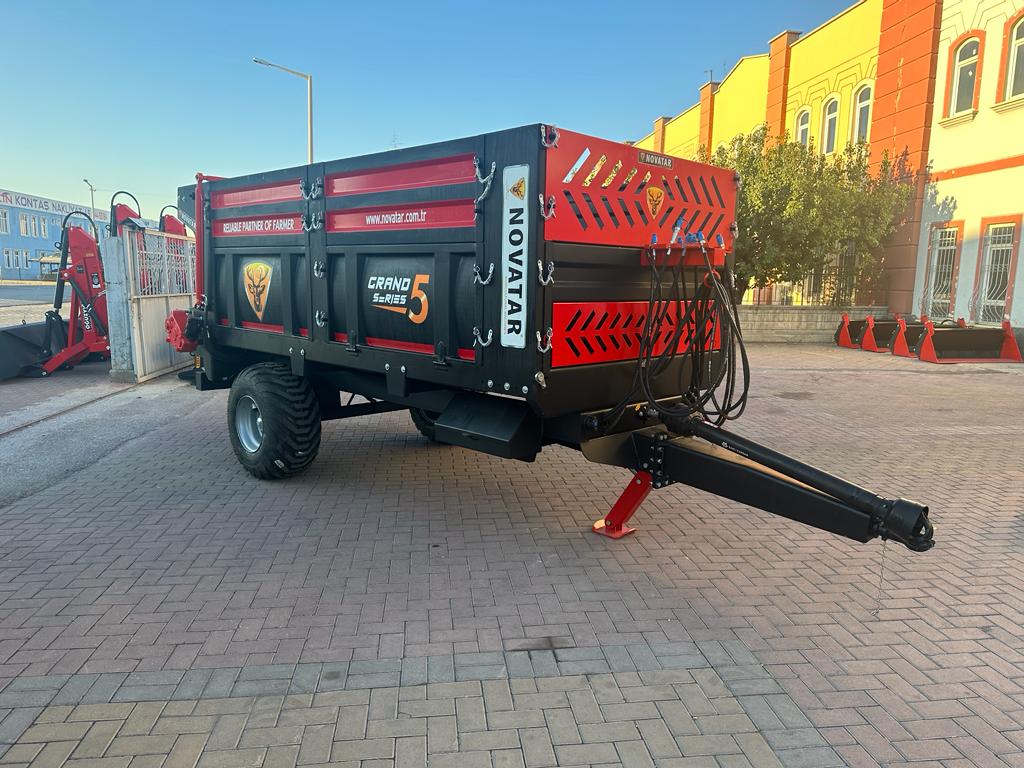

We have manure spreaders from 5 tons to 28 tons with excellent stability and maneuverability, visibility of the load, and superior ground clearance.
