| GRAND SERIES MANURE SPREADER |
CAPACITY | WEIGHT | PTO SHAFT ROTATION | TIRE DIMENSIONS | TOTAL TIRES | TOTAL SLAPPERS | AXLE SYSTEM | MIN. HP | BRAKE SYSTEM | TRAILER DIMENSIONS |
TOTAL DIMENSIONS |
| GRAND 3 | 3 M³ (4 TON) | 1650 KG | 540 | 11,5X80X15,3 | 2 | 12 | CONSTANT | 40+ | HYDRAULIC | 1580 X 2900 X 800 | 2000X4700X1650 |
| GRAND 6 | 6 M3 (8 TON) | 2950 KG | 540 | 400/60-15,5 | 2 | 18 | CONSTANT | 65 HP+ | HYDRAULIC | 1750 X 3500 X 1100 | 2100X6100X2300 |

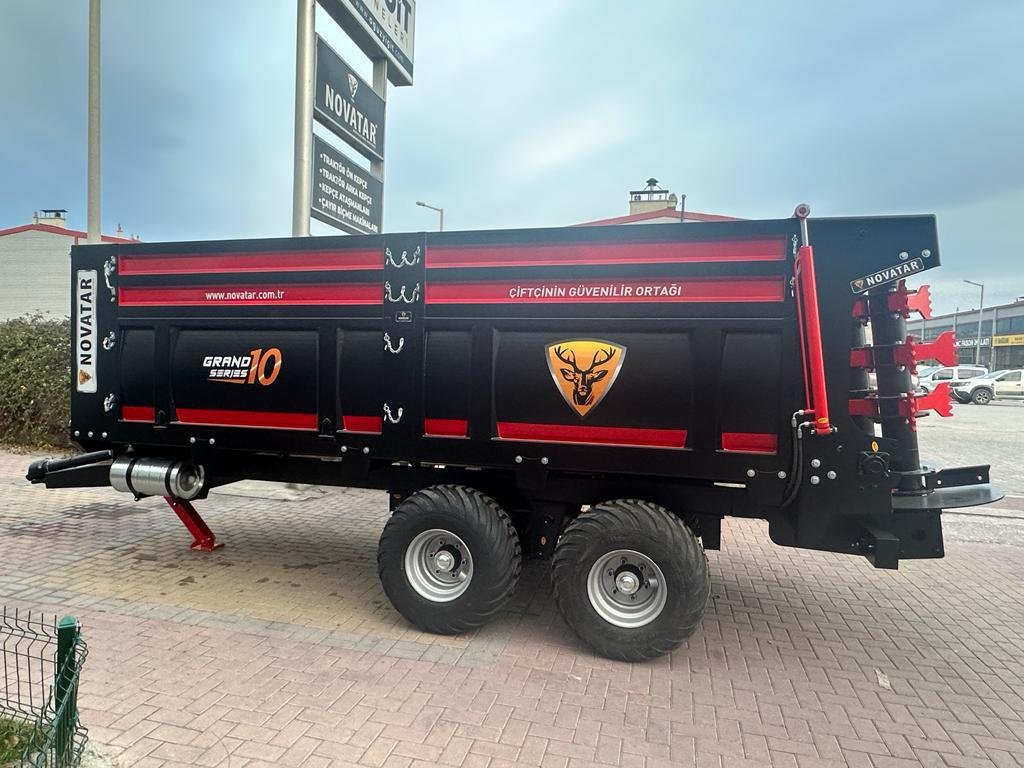

| GRAND 10 | 10 M3 (14 TON) | 3900 KG | 540 | 400/60-15,5 | 4 | 18 | TANDEM | 90 HP+ | HYDRAULIC | 1750 X 4650 X 1200 | 2100X7250X2400 |
| GRAND 15 | 15 M3 (18 TON) | 4500 KG | 540 | 500X50X17 | 4 | 18 | TANDEM | 120 HP+ | HYDRAULIC | 1900 X 4650 X 1400 | 2200X7500X2400 |
| GRAND 20 | 20 M3 (25 TON) | 6500 KG | 540 | 435X50X19,5 | 4 | 24 | TANDEM | 140 HP+ | HYDRAULIC | 2350 X 5710 X 1500 | 2300X8200X2750 |

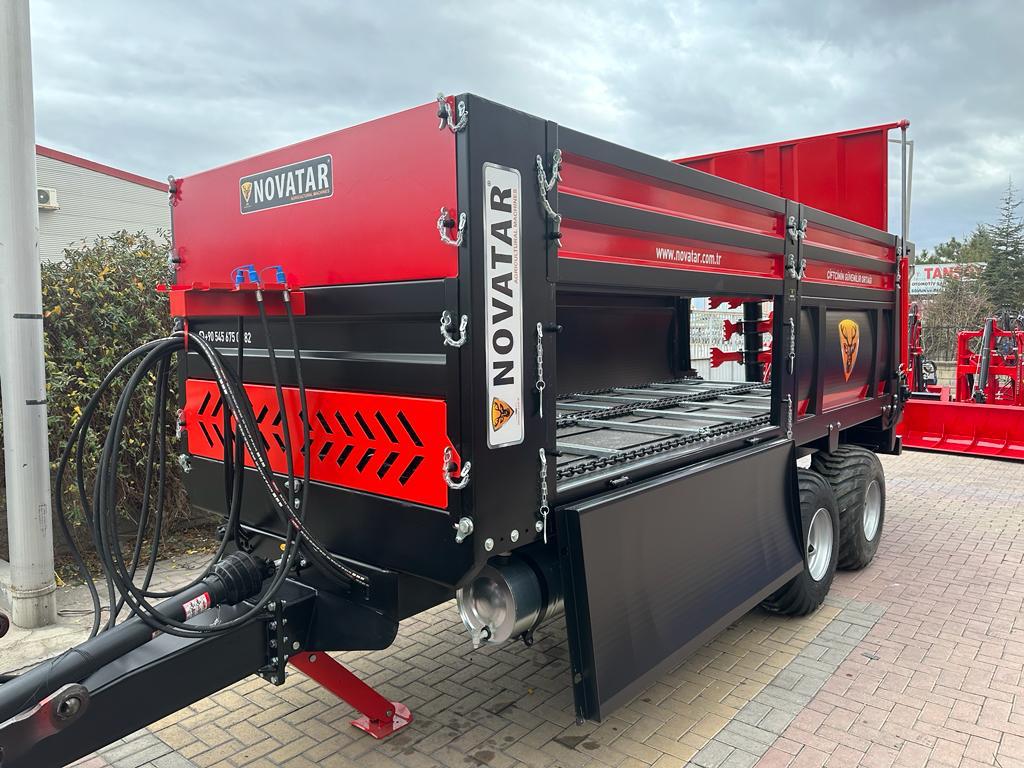

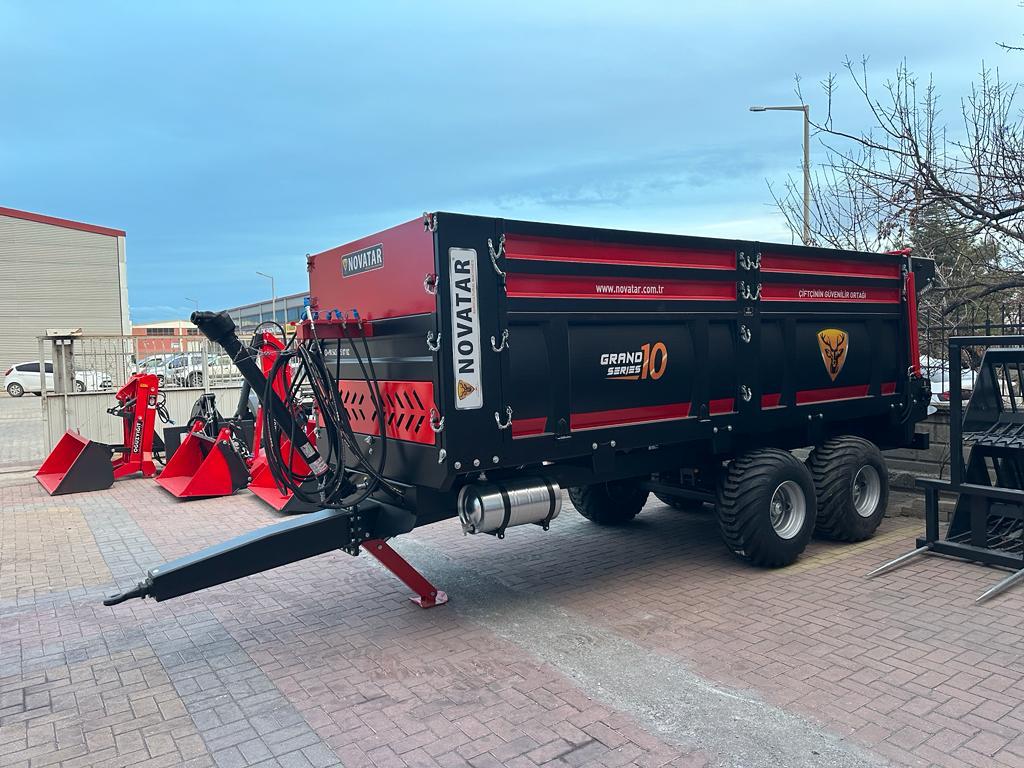

A manure spreader trailer or muck spreader is an agricultural machine that is used to distribute manure over a field as a fertilizer. A standard manure spreader consists of a towed trailer behind a tractor and takes its power by the tractor’s power take-off.

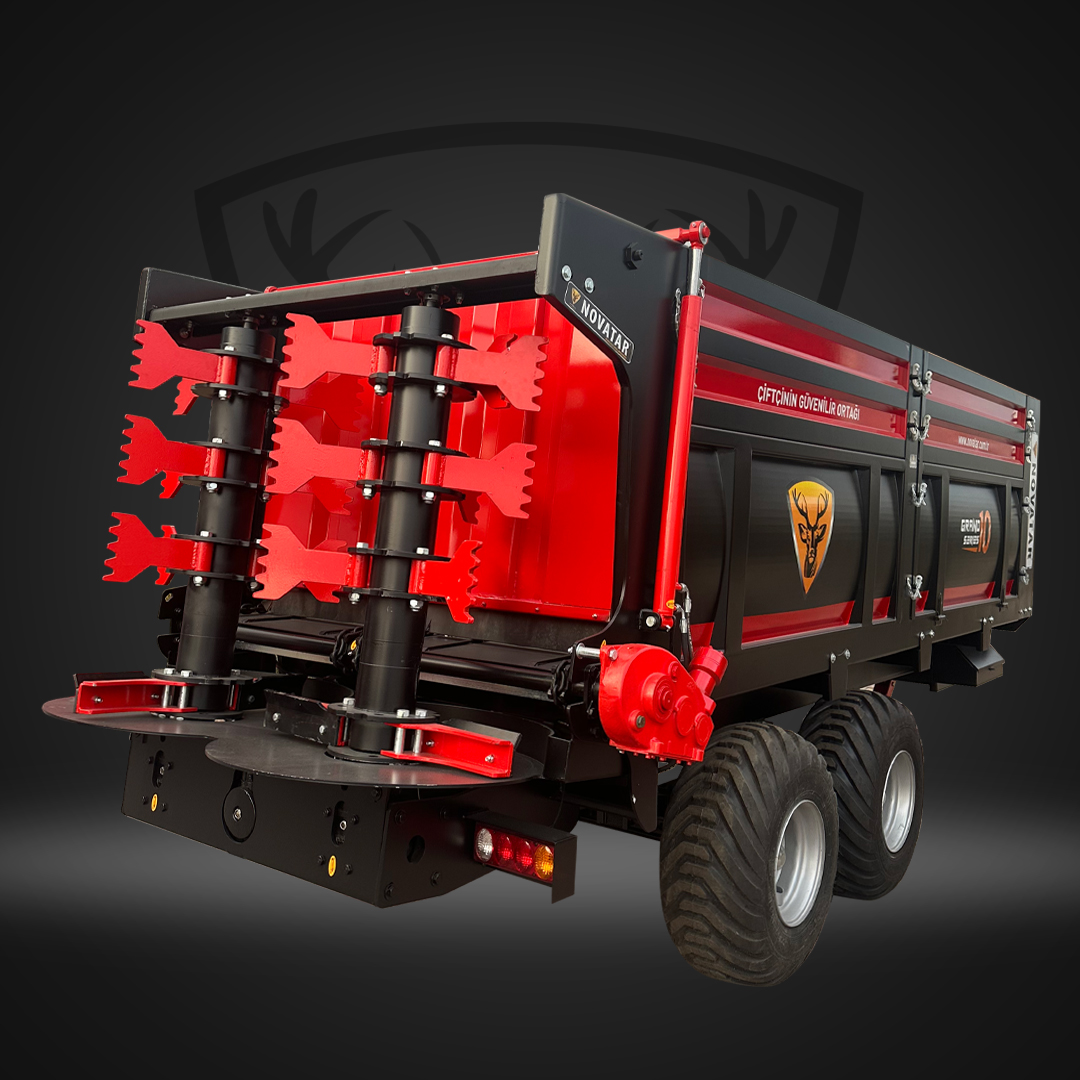

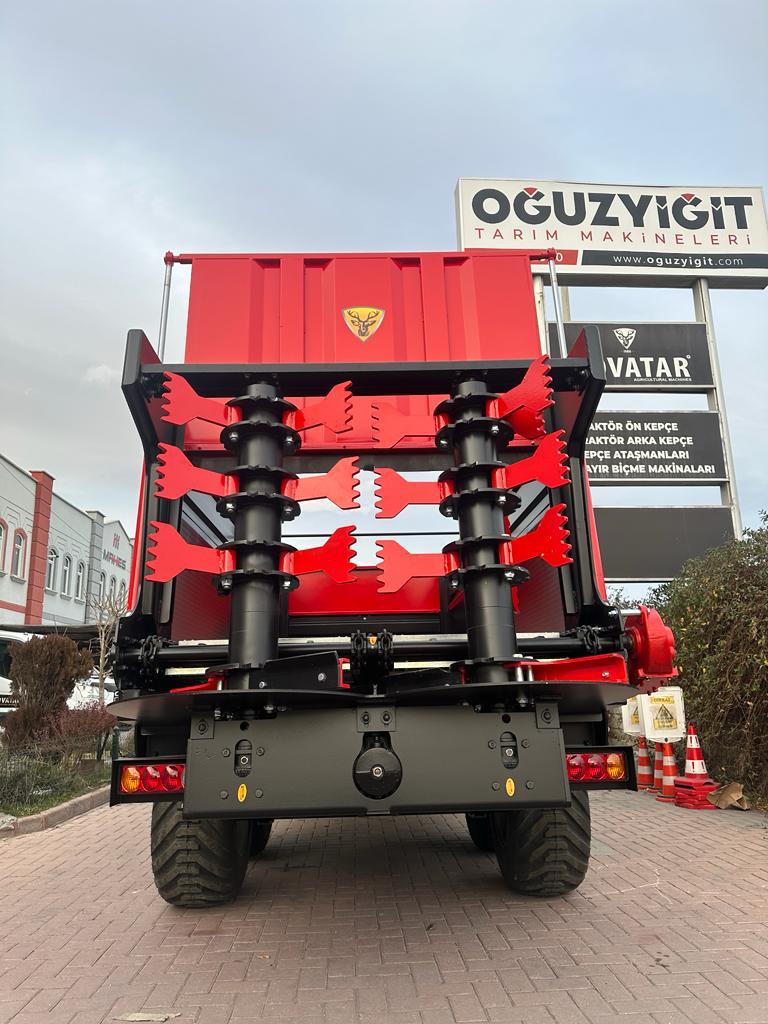

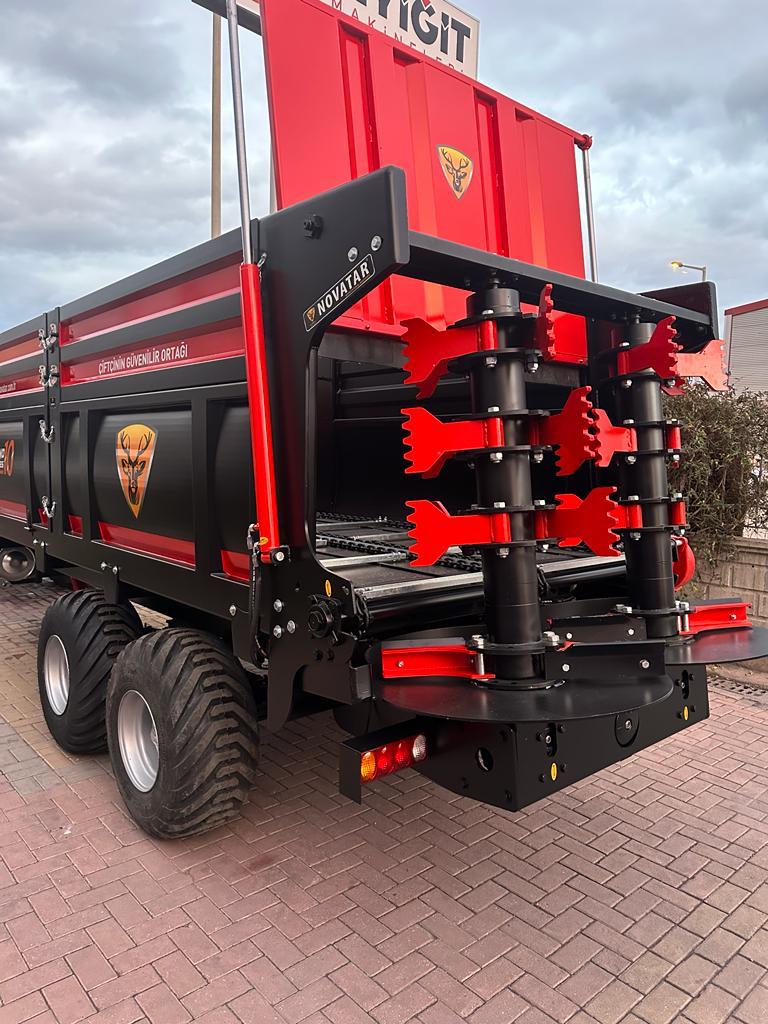

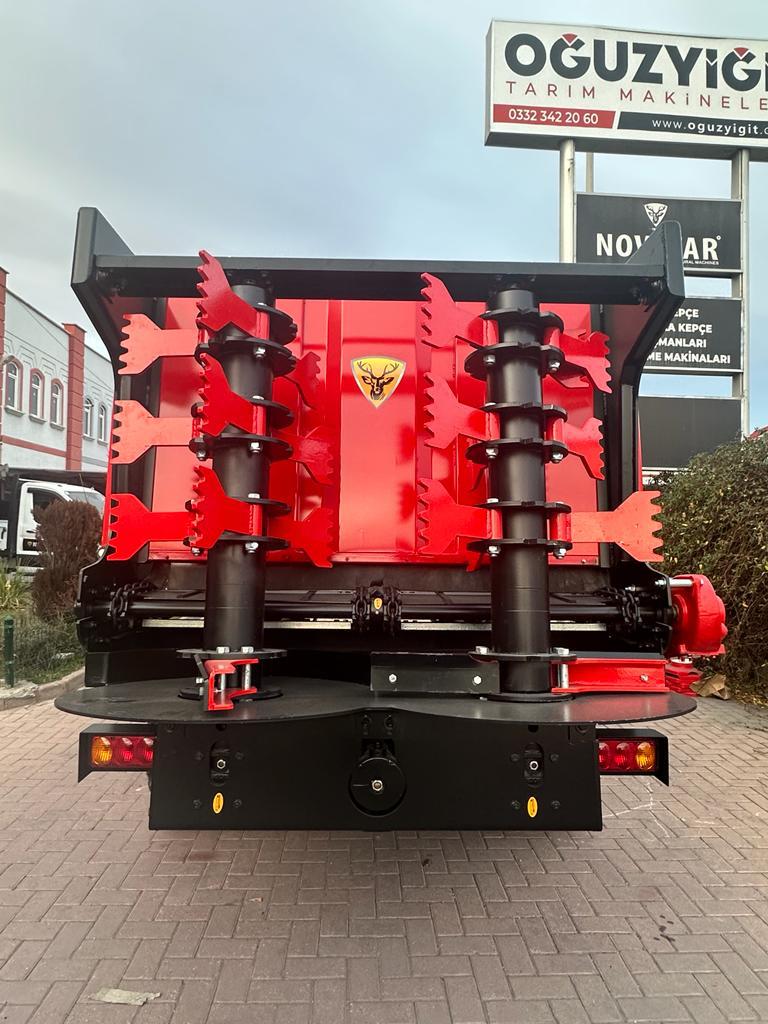

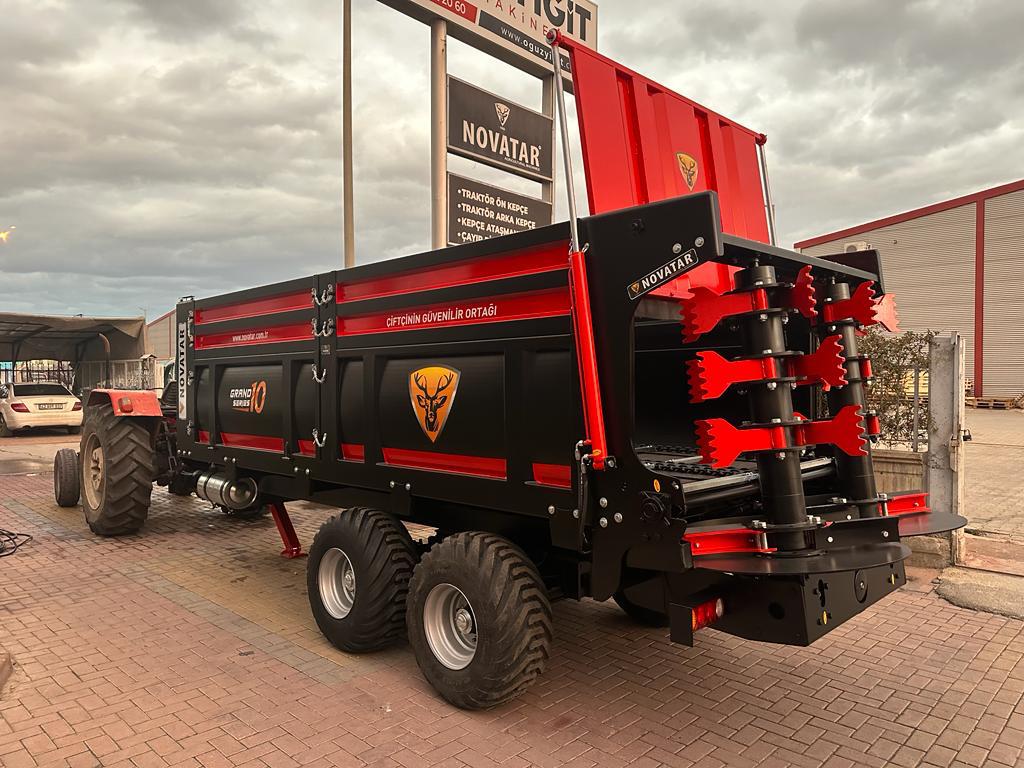

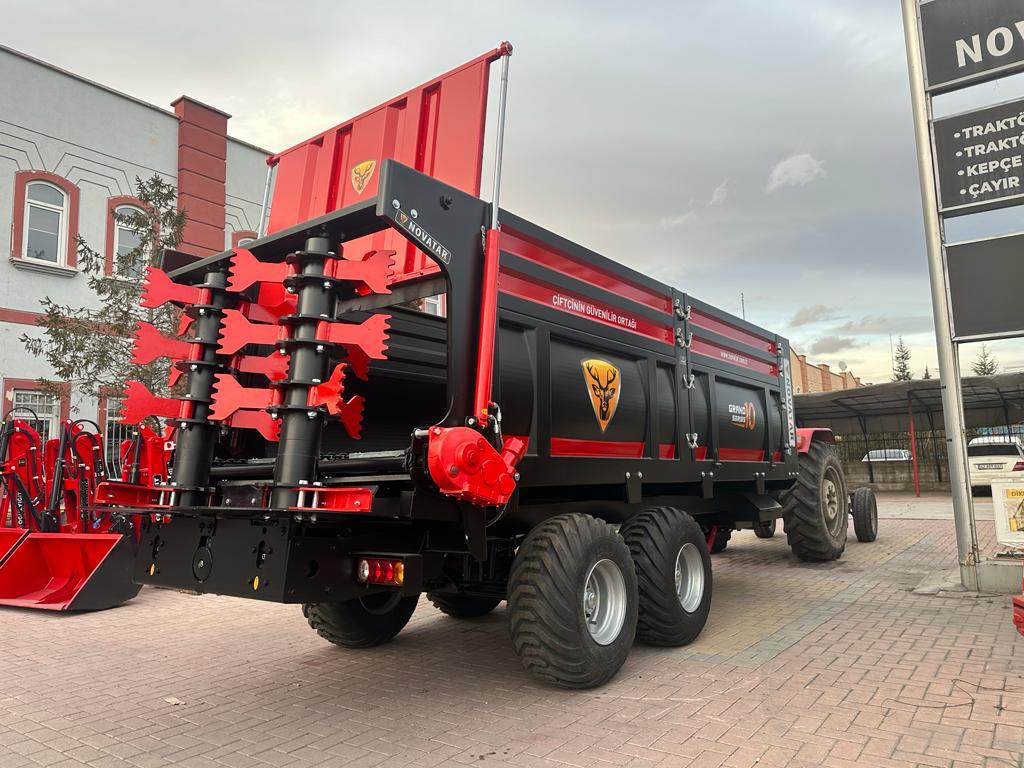

Large diameter slappers generate a high tip speed to ensure a fine shredding action is achieved, with tall beaters delivering massive output or high work rates.
We have manure spreaders from 5 tons to 25 tons with excellent stability and maneuverability, visibility of the load, and superior ground clearance.

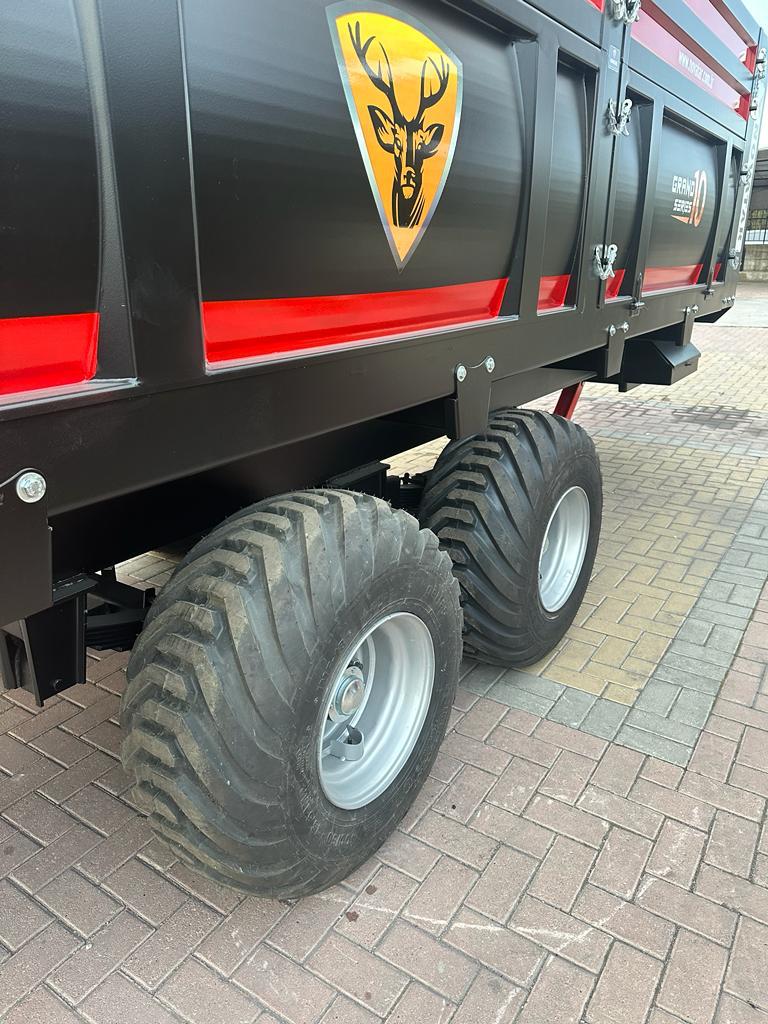

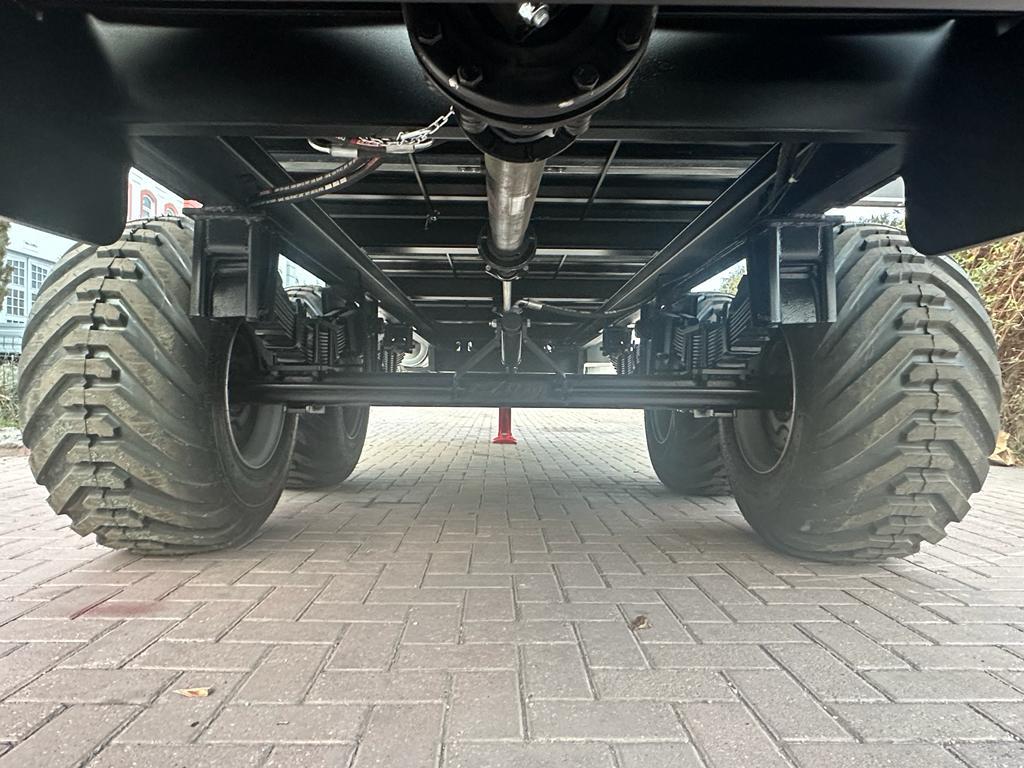

Novatar Manure Spreader is ideal for all types of terrain. With its wide wheel track and low centre of gravity design makes it ideal for working in hilly areas.
