Manure Spreader (European Type)

Manure Spreader (European Type)

A manure spreader trailer or muck spreader is an agricultural machine that is used to distribute manure over a field as a fertilizer. A standard manure spreader consists of a towed trailer behind a tractor and takes its power by the tractor’s power take-off.

Large-diameter slappers generate a high tip speed to ensure a fine shredding action is achieved, with tall beaters delivering massive output or high work rates.

We have manure spreaders from 5 tons to 25 tons with excellent stability and maneuverability, visibility of the load, and superior ground clearance.

Novatar Manure Spreader is ideal for all types of terrain. With its wide wheel track and low center of gravity, the design makes it ideal for working in hilly areas.

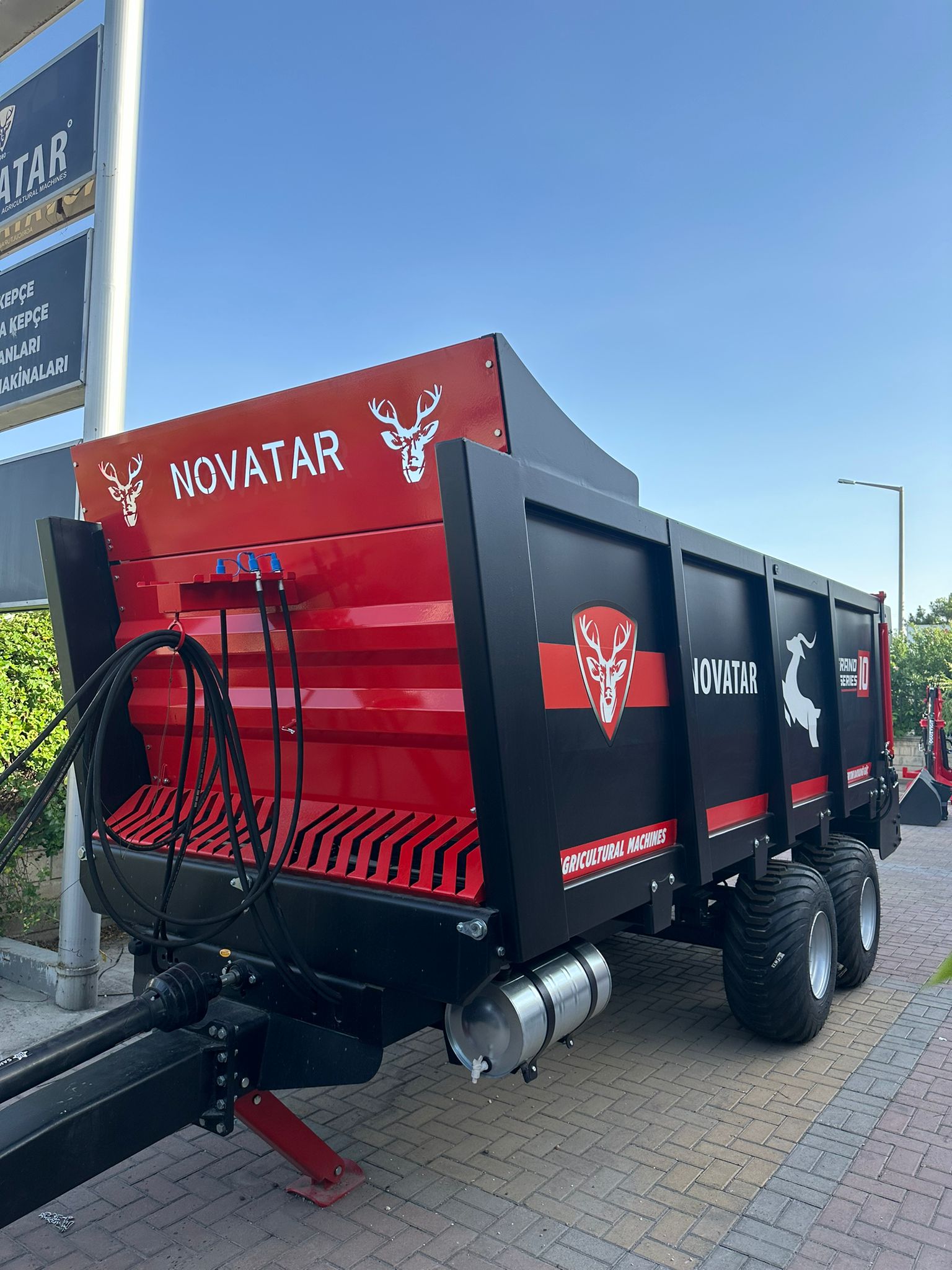

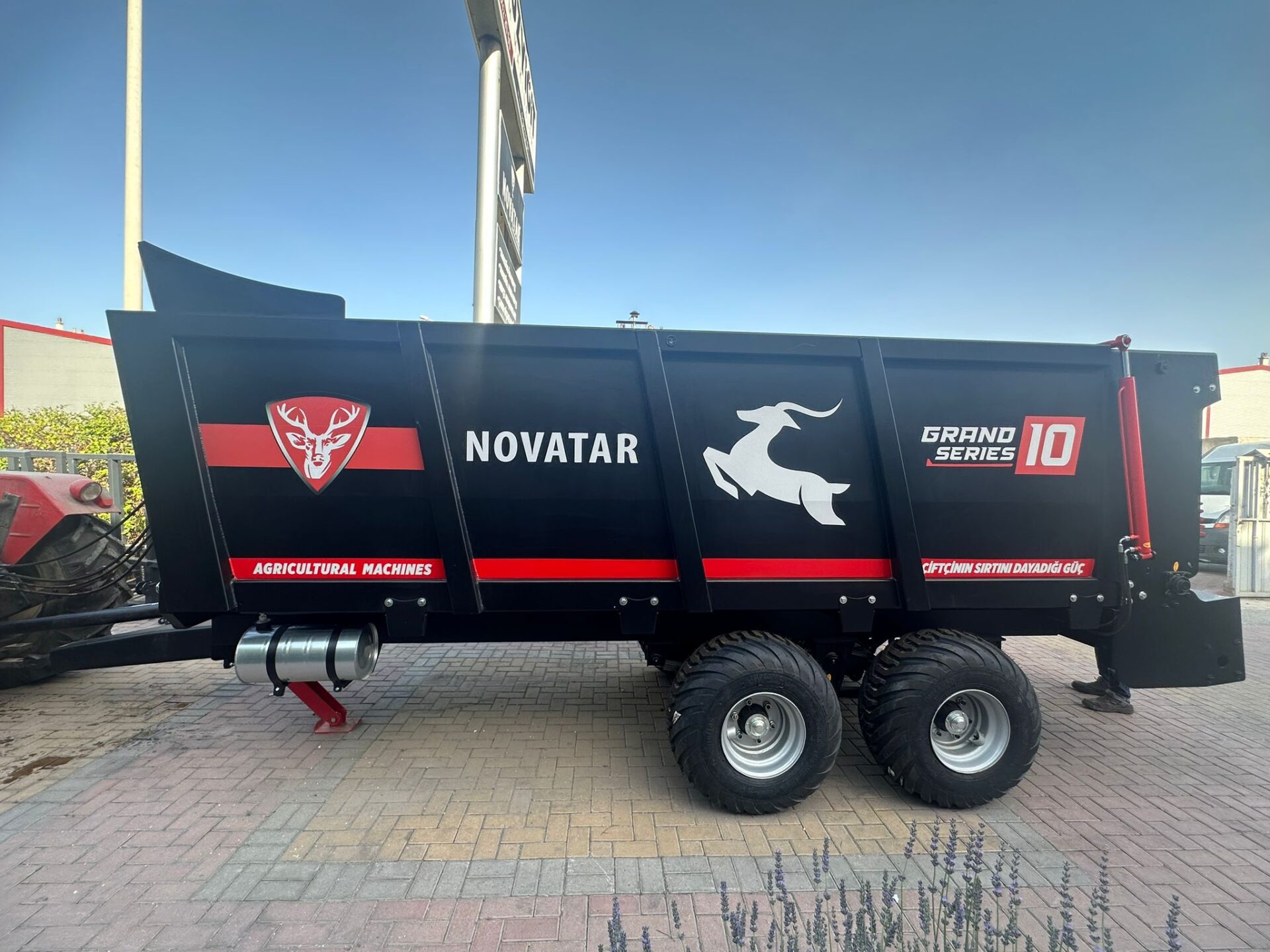

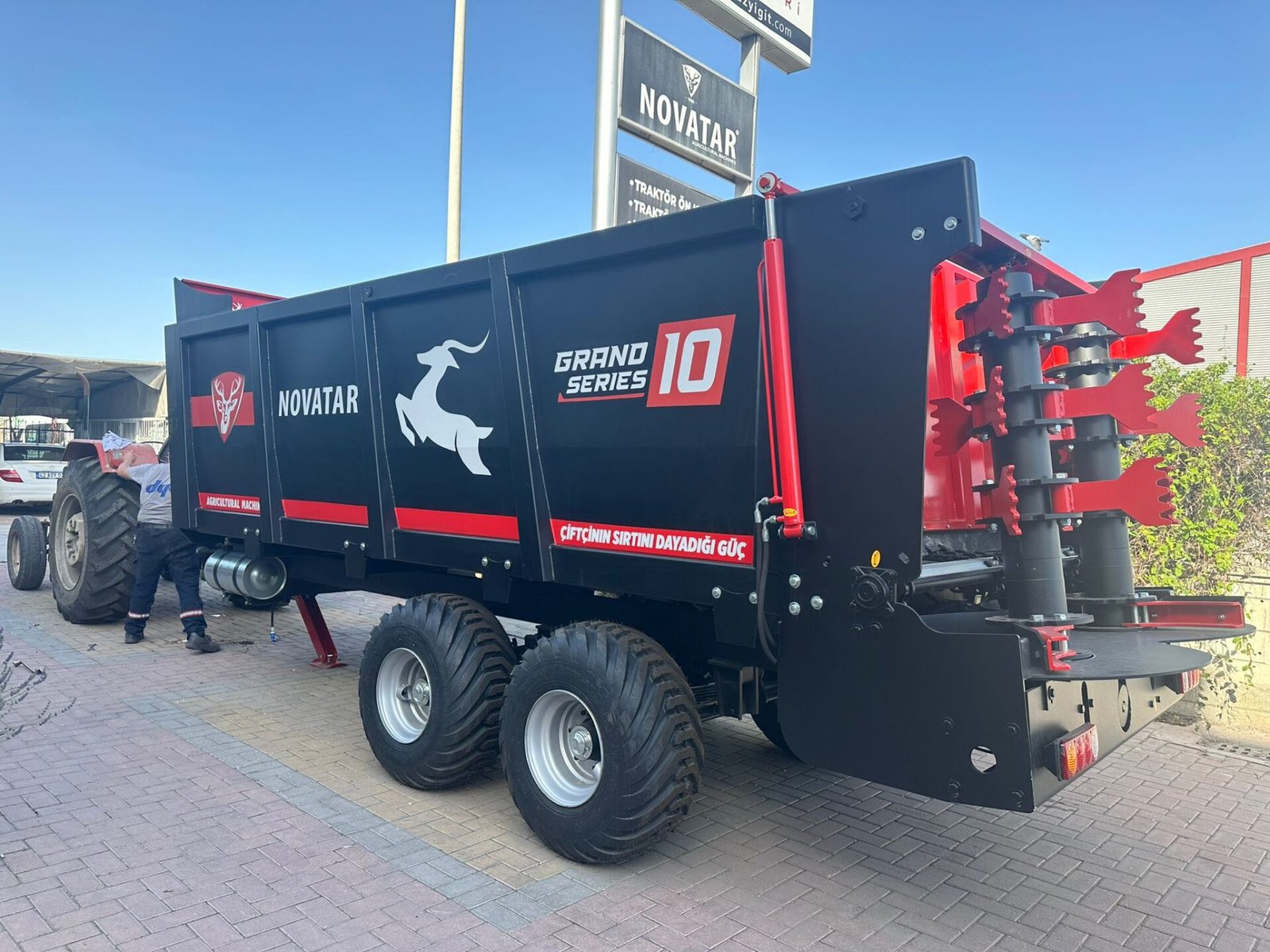

Novatar Grand Series Manure Spreader has a 10 cubic meter capacity. The Manure Spreader can carry up to 15 cubs of manure and can be loaded and spread homogeneously. Grand 10 is designed for average and bigger-sized enterprises with 80-140 HP power requirements.

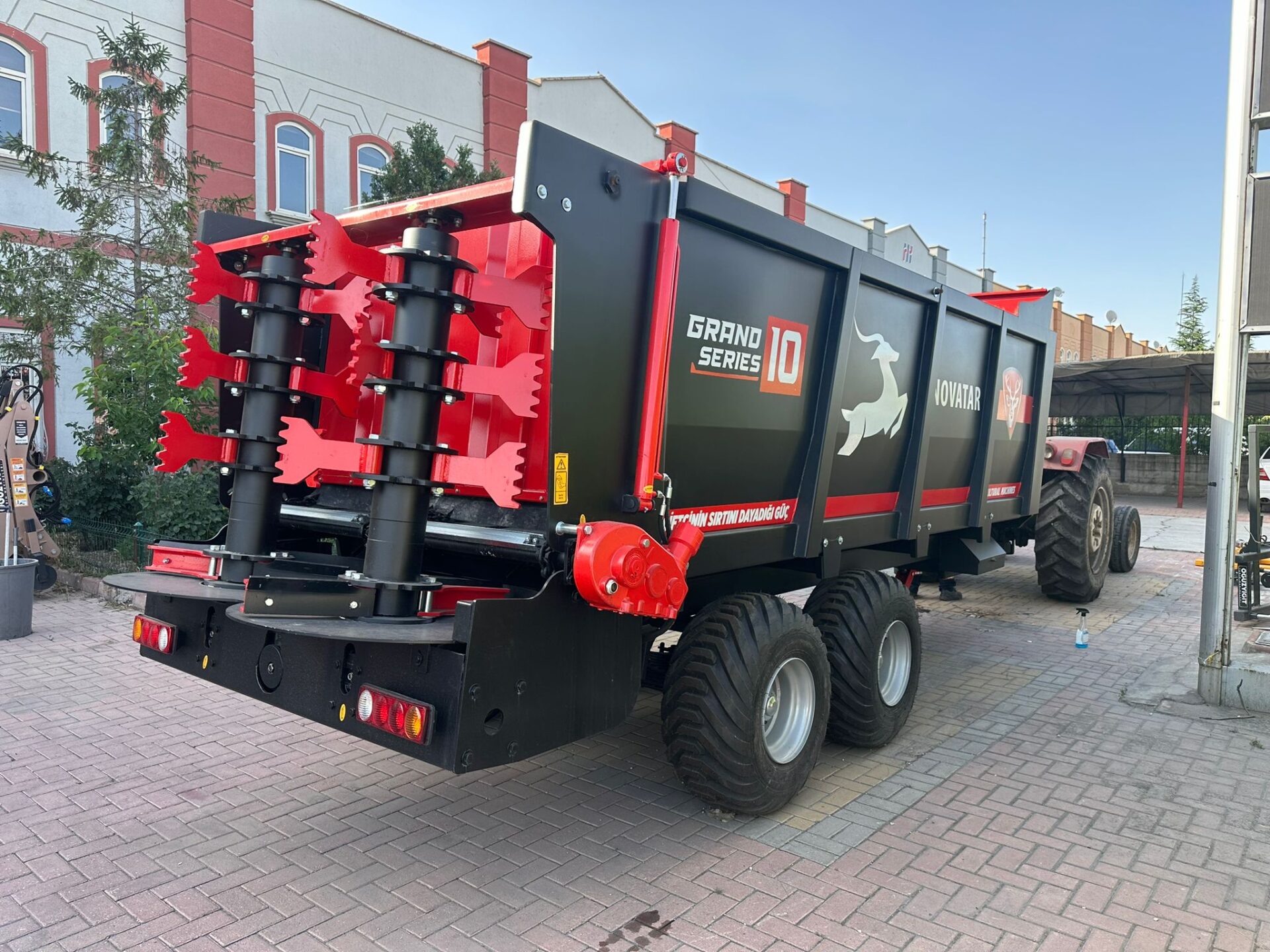

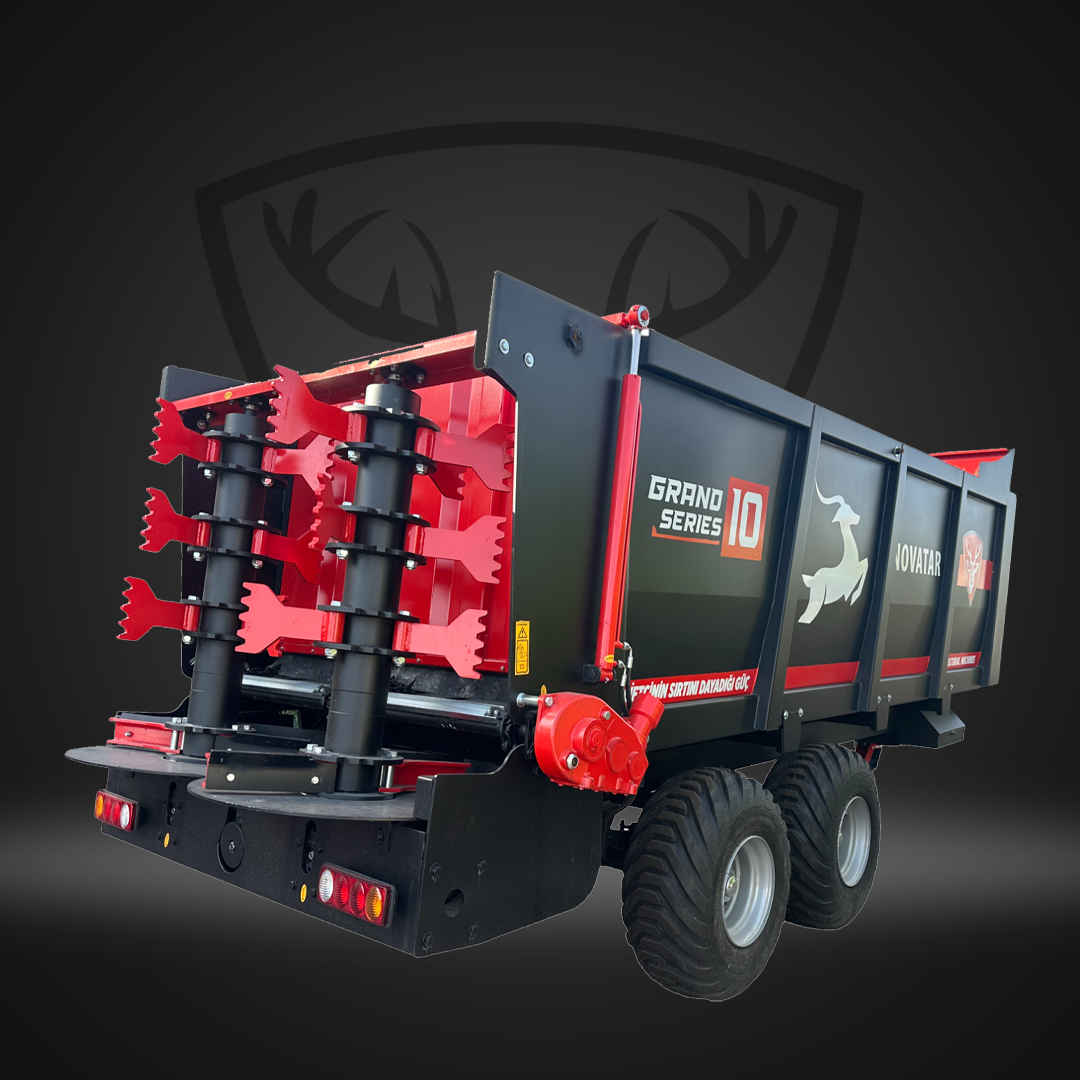

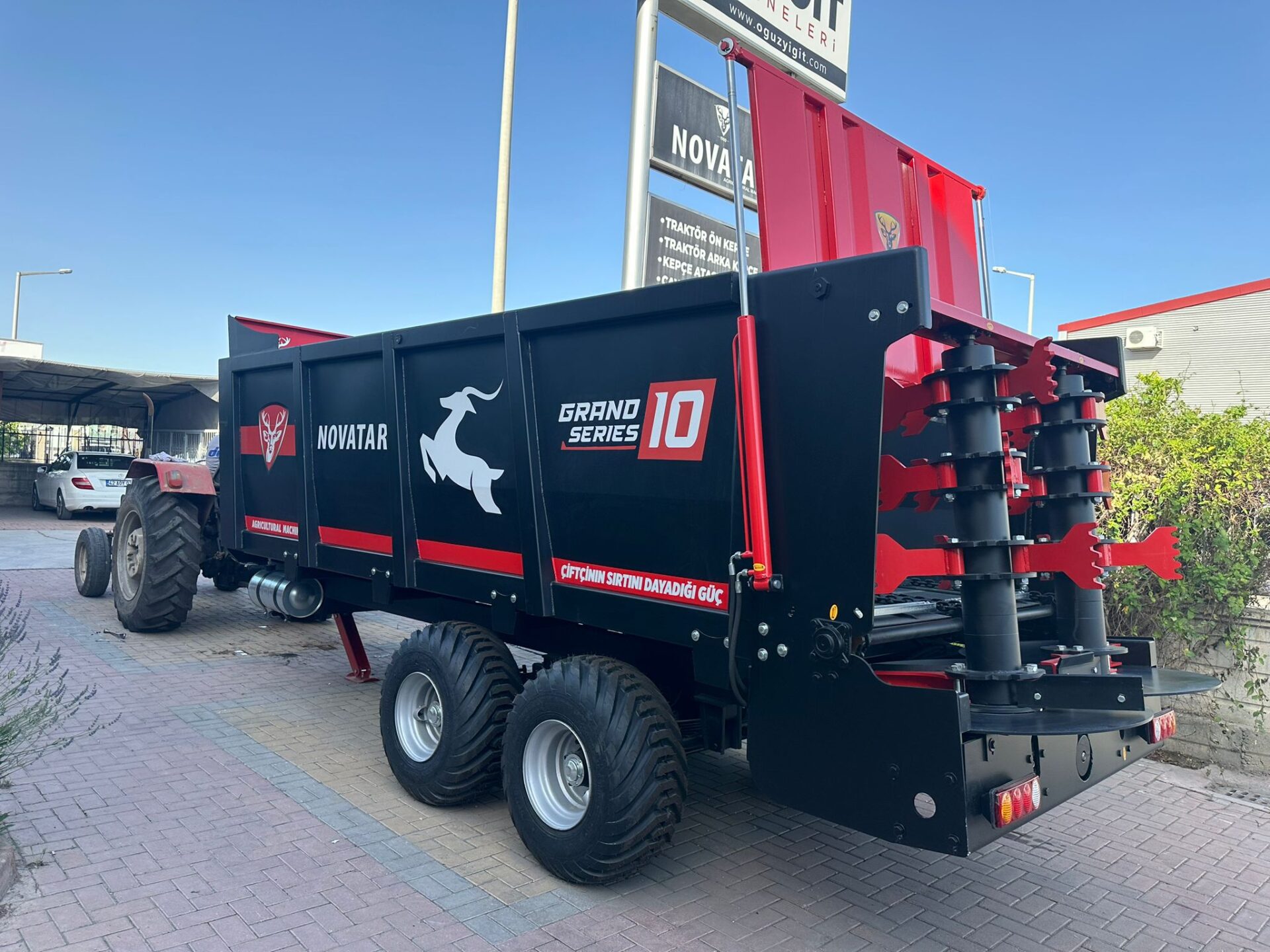

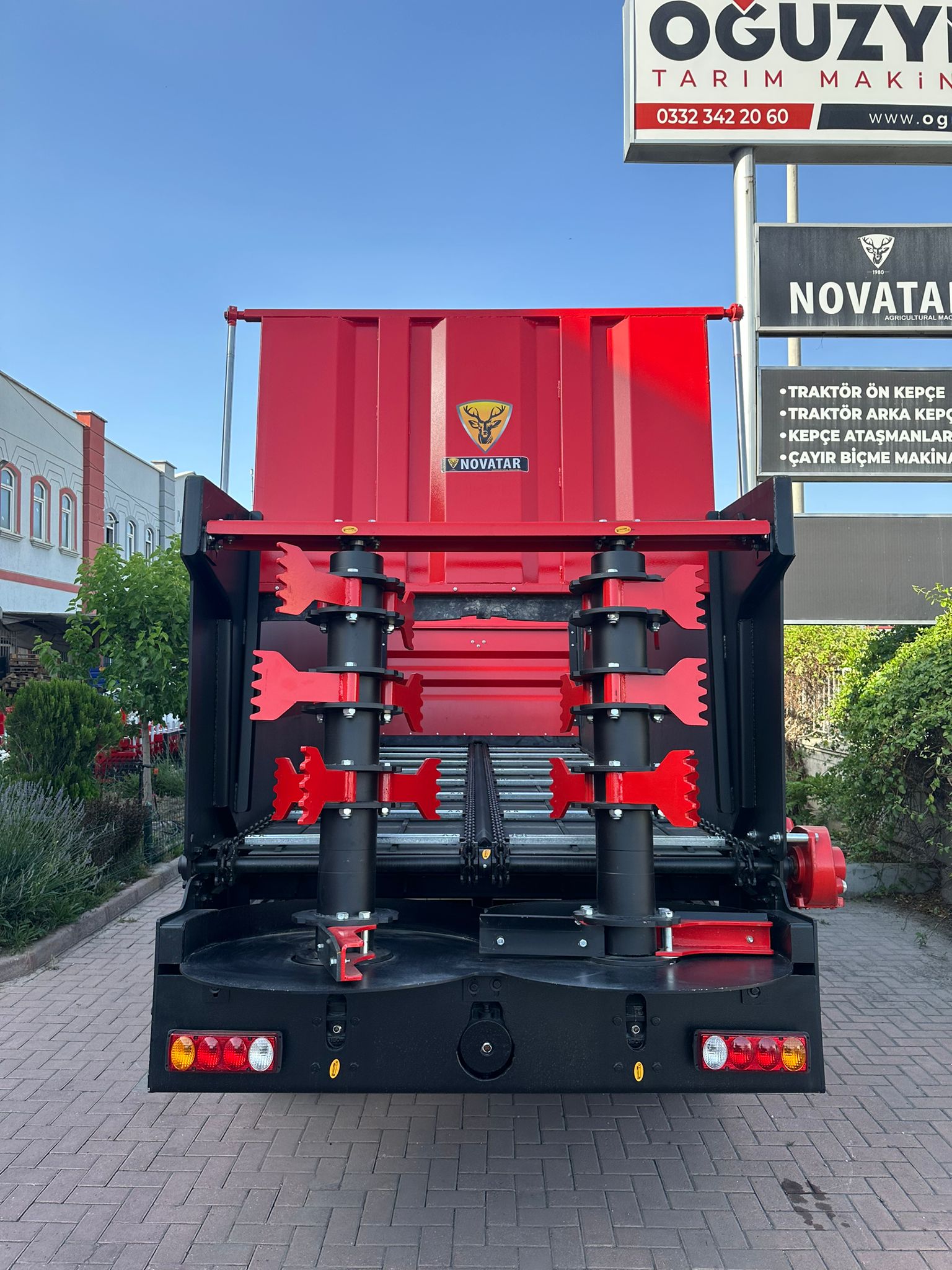

Novatar manure spreaders have vertically placed slappers. Blades on the beater break up the manure and spread it homogeneously. The gearboxes and the chain system on the manure spreader are designed to endure high forces and long working times.

We use a caliber ring system for our manure spreaders

There are many features for Novatar Grand Manure Spreader such as;
– Hydraulic Brake
– Air Brake
– Traffic Lights

GRAND SERIES
MANURE SPREADER
CAPACITY WEIGHT PTO SHAFT ROTATION TIRE DIMENSIONS TOTAL TIRES TOTAL SLAPPERS AXLE SYSTEM MIN. HP TRAILER
DIMENSIONS
TOTAL
DIMENSIONS
GRAND 3 3 M³ (4 TON) 1650 KG 540 11,5X80X15,3 2 12 CONSTANT 40+ 1580 X 2900 X 800 2000X4700X1650
GRAND 6 6 M3 (8 TON) 2950 KG 540 400/60-15,5 2 18 CONSTANT 65 HP+ 1750 X 3500 X 1100 2100X6100X2300
GRAND 10 10 M3 (14 TON) 3900 KG 540 400/60-15,5 4 18 TANDEM 90 HP+ 1750 X 4650 X 1200 2100X7250X2400
GRAND 15 15 M3 (18 TON) 4500 KG 540 500X50X17 4 18 TANDEM 120 HP+ 1900 X 4650 X 1400 2200X7500X2400
GRAND 20 20 M3 (25 TON) 6500 KG 540 435X50X19,5 4 24 TANDEM 140 HP+ 2350 X 5710 X 1500 2300X8200X2750
