| VERTICAL FEED MIXER | UNIT | SPECIFICATIONS | ||||||
| CAPACITY | m³ | 2m³ | 4m³ | 6m³ | 8m³ | 10m³ | 12m³ | 16m³ |
| WIDTH | cm | 170 | 215 | 230 | 235 | 235 | 235 | 235 |
| LENGTH | cm | 275 | 310 | 380 | 410 | 415 | 430 | 600 |
| HEIGHT | cm | 210 | 250 | 250 | 280 | 300 | 300 | 300 |
| HEIGHT WITH BUCKET | cm | 300 | 380 | 380 | 410 | 420 | 440 | 430 |

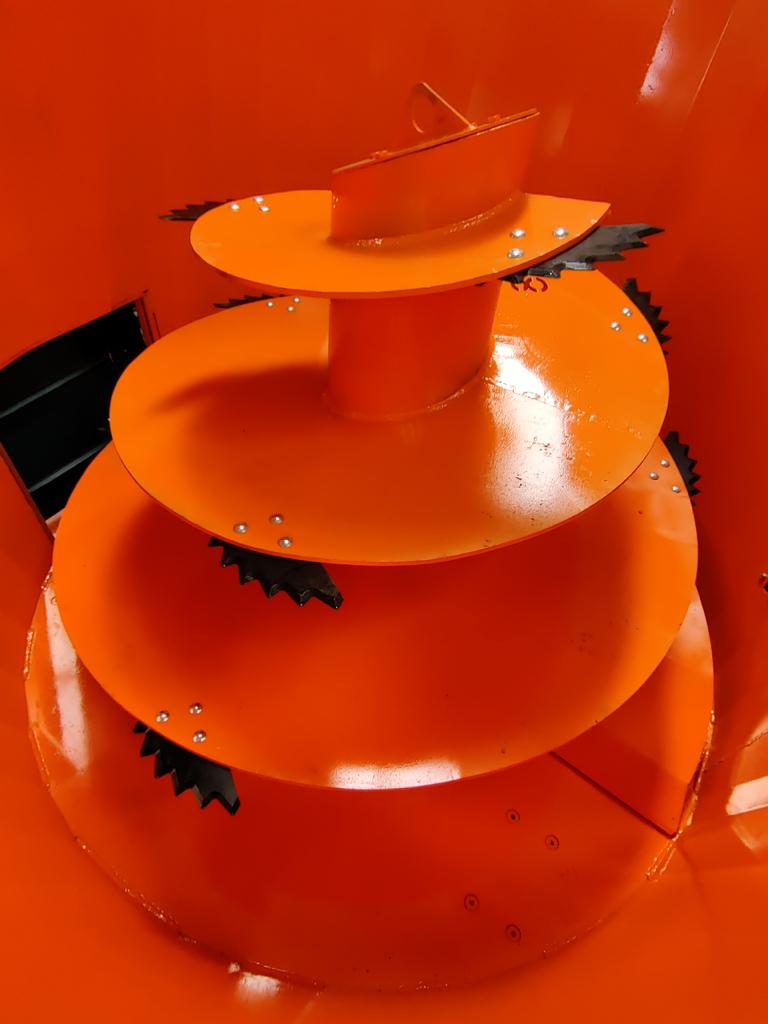

| BLADE QUANTITY | qty | 5 | 7 | 7 | 9 | 12 | 12 | 18 |
| GROUND SHEET THICKNESS | mm | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| SIDE SHEET THICKNESS | mm | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| POWER SUPPLY | source | Gear Box | Gear Box | Gear Box | Gear Box | Gear Box | Gear Box | Gear Box |
| EMPTY WEIGHT | kg | 900 | 1400 | 1800 | 2150 | 2500 | 3220 | 5050 |
| REAR BUCKET TYPE | type | Bucket | Bucket | Bucket | Bucket | Bucket | Bucket | Bucket |
| HELICAL GEAR SYSTEM | type | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| MOTION SYSTEM | type | PTO | PTO | PTO | PTO | PTO | PTO | PTO |
| PTO SPEED | cycle/min | 540 rpm/min | 540 rpm/min | 540 rpm/min | 540 rpm/min | 541 rpm/min | 540 cycle/min | 540 cycle/min |
| HYDRAULIC PRESSURE SOURCE | source | Tractor Oil Pump | Tractor Oil Pump | Tractor Oil Pump | Tractor Oil Pump | Tractor Oil Pump | Tractor Oil Pump | Tractor Oil Pump |
| OIL PUMP POWER SOURCE | source | Tractor | Tractor | Tractor | Tractor | Tractor | Tractor | Tractor |
| REQUIRED TRACTOR HP | hp | 20-30 | 40-50 | 50-70 | 50-71 | 60-75 | 70-90 | 250-300 |
| ANIMALS TO BE FED | qty | 35-40 | 75-80 | 100-120 | 120-150 | 150-200 | 200-250 | 250-400 |
A feed mixer is an agricultural machine that farmers use to mix feed ingredients and premises. The feed Mixer machine is one of the Livestock equipment that is important for your cows.
The Feed Mixer Machine chops hay, straw, and clover bales and mixes them with corn silage, chopped beet or pulp, and other feeding materials homogenically and then distributes the mixture.
Benefits of using feed mixers:
It decreased incidences of digestive and metabolic problems,
Using Feed Mixer increases milk production yield,
Thanks to the feed mixer less feed waste and less sorting…
We have many types of Feed Mixers from 2M³ to 20 M³ as horizontal and vertical feed mixers. Our main target is producing and providing high-quality agricultural machines and Feed Mixer is one of our machines. After you start to use the feed mixer you will be surprised about changes in the cows. Cows will consume less feed and It will reduce your feed cost. Your cows are going to be more robust and massive. Feed mixer wagons will help your cow’s digestive problems and mean less vet cost and a high milk yield.
If you don’t want to lose your time the Novatar Feed Mixer will be your best machine and friend. Besides these advantages, you will have healthy cows, less cost, and high efficiency. We will be at your service with high-quality machines and competitive prices.
